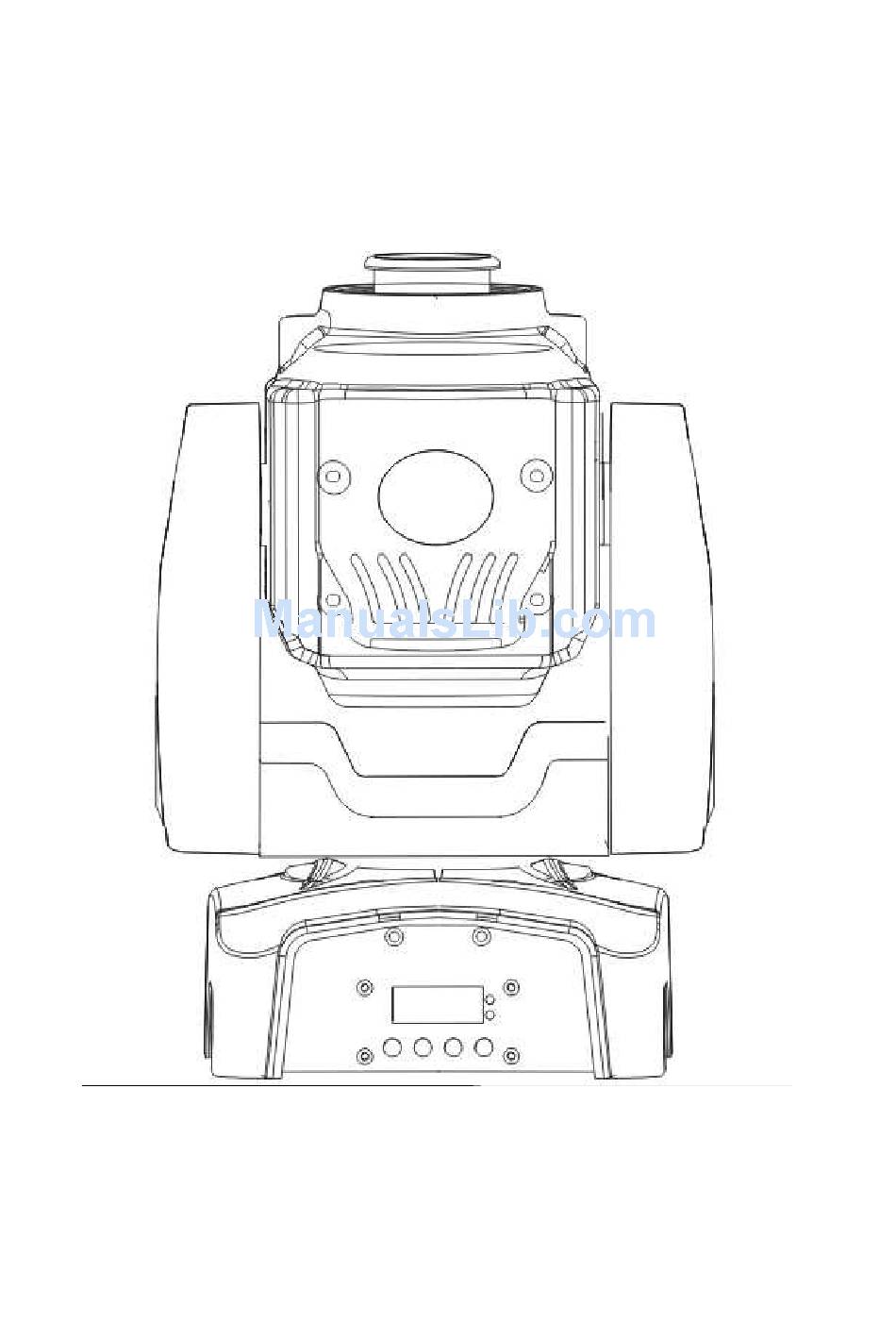

- Page 1 Mini Spot Moving Head HS-LMS30 USER MANUAL...
-
Page 2: Table Of Contents
ABLE OF CONTENTS P AR T 1 P R O D U CT ( G E N E R AL ) ............1 1 . -
Page 3: 1 . 1 Product Introduction
PRODUCT (GENERAL) 1 . 1 PRODUCT INTRODUCTION This product is designed for indoor use only. Suitable stage. nightclub applications. Direct input of DMX512 signal allows the fixtures to be controlled from any DMX512 controller. The fixture is fully programmable with one custom program available and is supplied with two automatic programs (all accessible from DMX512 controller).This product can be operated as a single unit or with multiple units for large applications. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Electrical Voltage:AC100-240V, 50/60Hz Rated Power:75W LED:1PC(30W white) Cooling: Forced air convection Optical System Focus: Manual linear focus Dimmer:0-100% Strobe:0-20Hz 3-facet Prism FOCUS Operation Control mode:DMX512/Master-Slave/Auto/Custom/Sound LED display DMX512 CHS: 11 CHS/12CHS Pan/Tilt Pan 630 Tilt270 Pan/Tilt speed User-selectable Pan/ Tilt ranges Reverse Pan/Tilt movement Rotating Gobo 7 Gobo(interchangeable) -
Page 5: Photometric Data
PHOTOMETRIC DATA 1 . 4 SAFETY WARNING 1 . 5 IMPORTANT 【ALWAYSREAD THEUSER MANUAL BEFORE OPERATION.】 【PLEASE CONFIRM THAT THE POWER SUPPLYSTATED ON THE RODUCT IS THE SAME AS THE MAINS POWER SUPPLT IN YOUR AREA. 】 This product must be installed by a qualified professional. Always operate the equipment as described in the user manual. -
Page 6: Fuse Replacement
INSTALLATION FUSE REPLACEMENT Remove the safety cap by a screwdriver. Fetch the old fuse from safety cap. Install a new fuse. Install the safety cap SETTING UP(STAND ALONE) 2 . 2 The LED fixture can be used as stand alone unit. The stand alone functions AUTO 1, AUTO 2, SOUND 1, SOUND2 and CUSTOM can be activated... -
Page 7: L E D P Cb Rep L Ace M Ent
2 . 3 LED PCB PEPLACEMEMENT Take off the head cover. Remove the fan cover, fan, fan supports, heat sink step by step. Replace the new LED PCB. Install all parts on the original position. SETTING UP(MASTER/SLAVE) 2 . 4 When units are connected in series using DMX512 signal cable connect the units as shown in the diagram below. -
Page 8: Display Panel Operation
SETTING UP (DMX512 CONTROLLER) 2 . 5 When units are connected in series to a DMX512 controller and other DMX512 equipment, connect the equipment as shown in the diagram below. Connect the (male) 3 pin connector side of the DMX cable t o the output (female) 3 pin connector of the controller. -
Page 9: Menu
MENU... - Page 10 4. DMX CHANNEL PROTOCOL Channels Control Content Description 000-255 PAN MOVEMENT 000-255 TILT MOVEMENT 000-255 PAN/TILT SPEED 000-014 WHITE 015-027 COLOR 1 028-042 COLOR 2 043-054 COLOR 3 055-068 COLOR 4 069-082 COLOR 5 COLOR 6 CH4 COLOR 083-097 COLOR 7 098-110 COLOR 8 111-121...
-
Page 11: Technical Specification
5.APPENDIX Technical Specification WEIGHT&DIMENSIONS Length....................250mm Width....................240mm Height.....................390mm Packing size............. 410x330x280mm Net weight..................6kgs Gross weight ................7.3kgs POWER Powersettings............220V50Hz/60Hz Fuse..................2A220V Consumption................80W LIGHT SOURCE 1 X 30W WHITE......COLOR............LAMP LIFE: 50,000Hrs CONTROL & PROGRAMMING Data output..........locking3-pinXLRmalesocket Datainput..........locking3-pinXLRfemalesocket Protocols................DMX-512 DMX channels..................12...
