230W Beam Moving Head Light
Support Telephone: +86‐20‐37707017
Support Email: support@hosenlighting.com (QQ、Skype)
Copyright: The data at Hosen lighting Technology Limited common to all, to prohibit any
unauthorized copying, printing and dissemination.
User Manual
HSMB230
Website: http://www.hosenlighting.com
Advertisement
Table of Contents
Related Manuals for Hosen HSMB230
Summary of Contents for Hosen HSMB230

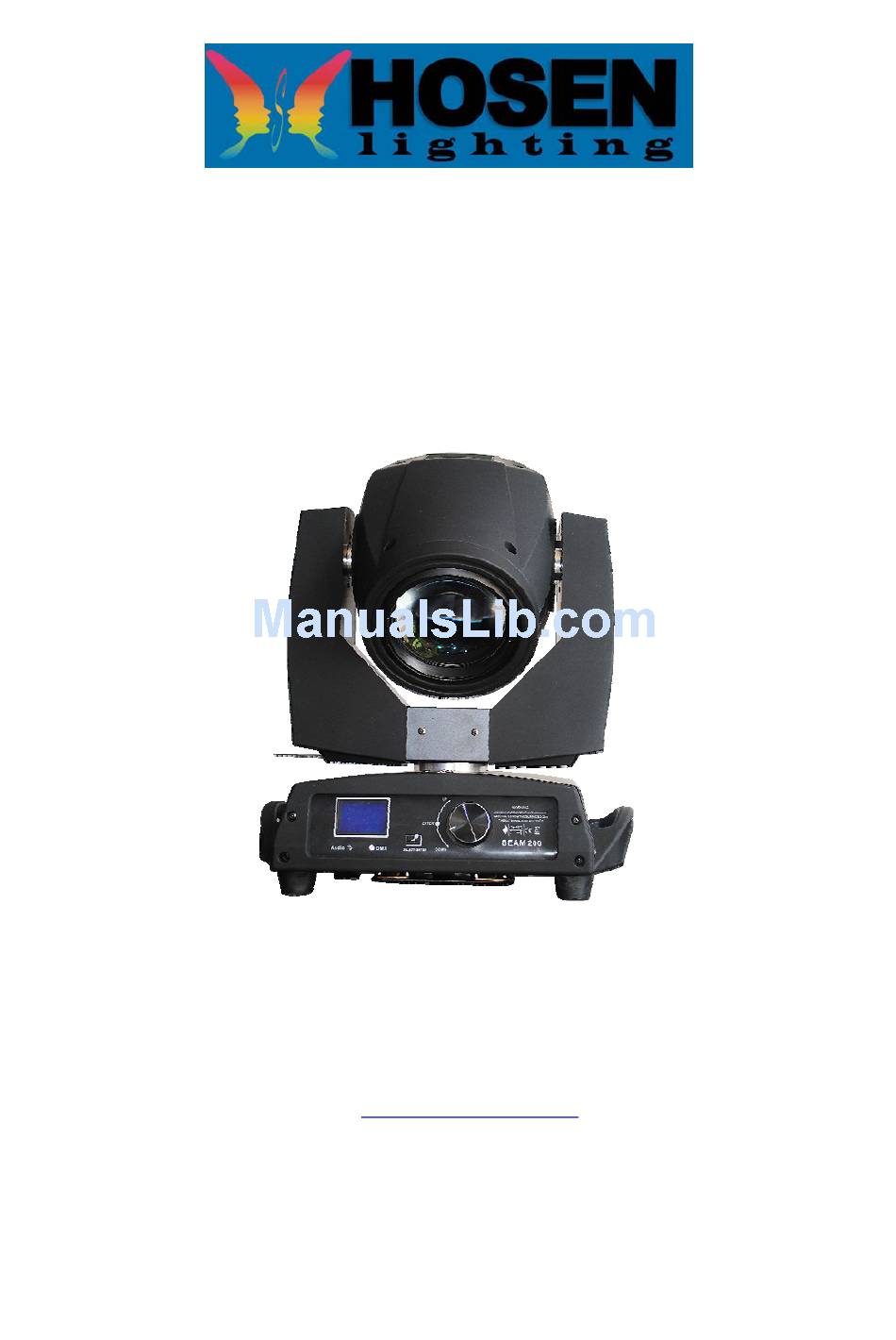

- Page 1 230W Beam Moving Head Light User Manual HSMB230 Support Telephone: +86‐20‐37707017 Support Email: support@hosenlighting.com (QQ、Skype) Website: http://www.hosenlighting.com Copyright: The data at Hosen lighting Technology Limited common to all, to prohibit any unauthorized copying, printing and dissemination. ...
- Page 2 Hosen lighting Technology Limited Contents Contents ............................1 1. Packing List..........................1 2. Schematic Diagram........................1 3. Product Features ........................1 4. Specifications ..........................2 4.1. Physical Specifications....................2 4.2. Electrical Specifications ....................2 4.3. Other Specifications ......................2 5. Installation Method........................2 5.1. Installation Steps ......................2 ...
-
Page 3: Specifications
Hosen lighting Technology Limited 4. Specifications 4.1. Physical Specifications Product Series: Traditional Stage Lighting Item No.: HS‐MB230 Lamp: □ YODN MSD230 7R □ Jenbo 230W □ Philips 230W □ Osram 230W Color temperature: 7800K Color wheel: One color wheel, 14 kinds of color chips in one color wheel ... - Page 4 Hosen lighting Technology Limited line if you will not operate it for a certain time. 5.2. Fixture Linking To run your light shows of one or more fixtures using DMX‐512 controller or to run synchronized shows on two or more fixtures in master/slave operating mode , you need DMX cables to link the units from DMX IN to DMX OUT. Notice: the length of signal cables should be within 100meters, to prevent the signal interference by other appliances because of the long signal cables. 5.3. AC Power The fixture is designed to work on 100‐240V 50/60Hz.Before applying power to a unit, check that the source voltage matches the unit’s requirement. 6. Technical Support Support Telephone: +86‐20‐37707017 Support Email: support@hosenlighting.com (QQ、MSN as same) Website: http://www.hosenlighting.com ...
-
Page 5: Main Menu
Hosen lighting Technology Limited ★ Always mount this unit in safe and stable matter. ★ Install or dismantle should operate by professional engineer ★ Using lamp，the change rate of power voltage should be within±10%,If the voltage is too high,it will shorten the light’s life; if it’s not enough, will affect the effect. 8. Disclaimer While every care has been taken with the details on this specification sheet, we take no responsibility for any inaccuracies caused during installation. We reserve the right to change these specifications without notice to always ensure that the customer is receiving a superior product. 9. Amendment Log 2012‐9‐19 Refresh and revise the user manual. Version 1.0.9.19 10. Appendix 10.1. LED Display Explanation DOWN Press ENTER ... -
Page 6: Fixture Reset
Hosen lighting Technology Limited Turn shortest Off / On Dmx Reset Off / On Back English Language 简体中文 Lightness Lightness=[01‐32] Display Constant open Poorlight Dim Off Display LOGO Off / On Back CH1 000 ... - Page 7 Hosen lighting Technology Limited Channels Value Function 0-255 Pan: 0-450 0-255 Tilt: 0-270 0-255 Pan fine（0-2.1°） 0-255 Tilt fine（0-1.0°） 0-255 XY speed (from fast to slow) 0-255 Dimmer (0-100%) 1-50...
- Page 8 Hosen lighting Technology Limited 42-48 Gobo 6 49-55 Gobo 7 56-62 Gobo 8 63-69 Gobo 9 70-76 Gobo 10 77-83 Gobo 11 84-90 Gobo 12 91-97 Gobo 13 98-104 Gobo 14...
