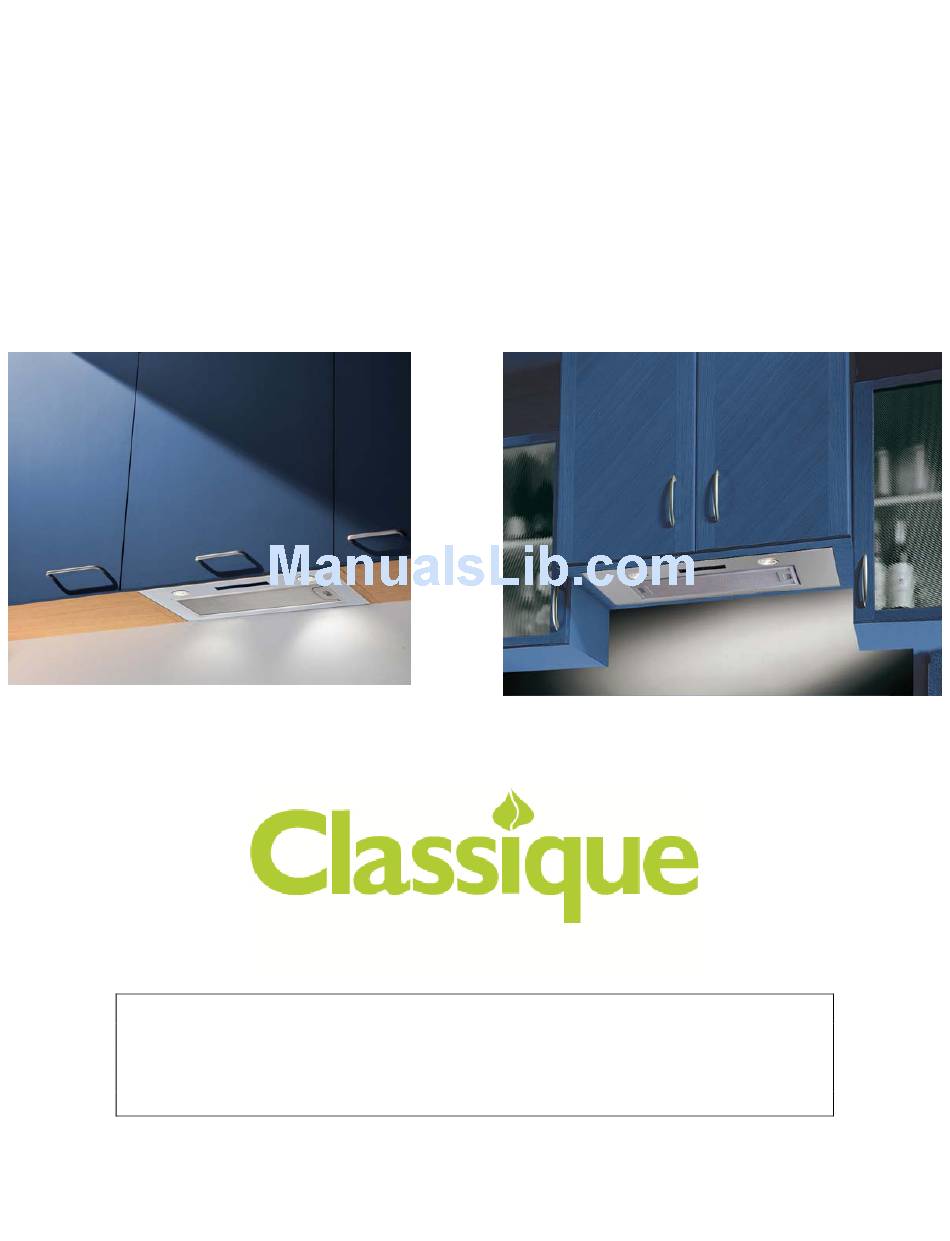

User Manual for your Classique
CLPP52SD 52 cm
Canopy Hood
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 02/11/12
1
Advertisement
Table of Contents
Related Manuals for Classique CLPP52SD
Summary of Contents for Classique CLPP52SD
- Page 1 User Manual for your Classique CLPP52SD 52 cm Canopy Hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
-
Page 2: Table Of Contents
Contents Page Environmental note IMPORTANT SAFETY INFORMATION 4 – 6 Specifications of your cooker hood Dimensions Product details Using your cooker hood 8 - 9 Before first use To use your cooker hood 8 - 9 Cleaning your cooker hood 9 - 10 General cleaning The grease filter... -
Page 3: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from. - Page 5 o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type. o If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.
- Page 6 o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs. o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.
-
Page 7: Specifications Of Your Cooker Hood
Specifications of your cooker hood Product dimensions Height: 162 mm Width: 520 mm Depth: 296 mm Your canopy hood is fitted with: o Slider control operation o Integrated axial motor o 3 speeds o 1 washable aluminium grease filter o 2 halogen lights o Noise level: 62 / 57 / 52 dB Extraction capacity: 350 m³... -
Page 8: Using Your Cooker Hood
Using your cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time. -
Page 9: Cleaning Your Cooker Hood
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE... -
Page 10: The Grease Filter
The grease filter o Your cooker hood includes a grease filter which helps to absorb grease particles to protect your kitchen and furniture from greasy residues. o The aluminium filter may become flammable if it becomes saturated with greasy residue. o To prevent this fire hazard, the filter should be cleaned regularly. -
Page 11: Changing A Light Bulb
o Refit the grease filter once it has dried. o IMPORTANT: Let the grease filter dry thoroughly before refitting it in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 12: Fitting The Carbon Filters
o Insert a new identical 40W (max) bulb. o IMPORTANT: Defective bulbs should be replaced immediately. o If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance. -
Page 13: Installation
o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage. -
Page 14: Before Beginning Installation
We recommend that the appliance is connected by a qualified electrician, who will comply with the local regulations. The wires in the mains lead are coloured in accordance with the following UK code: Blue = Neutral, Brown = Live, Green/Yellow = Ground If you only find two wires in the main’s lead (blue and brown), then neither must be connected to the earth terminal. -
Page 15: Installing Your Cooker Hood
o If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris. - Page 16 1) Remove the metal grease filter (A). 2) Create an opening in the underneath of the kitchen unit; the cut- out must be of the dimensions shown in the drawing below. o IMPORTANT: If you are going to connect your cooker hood to external ducting, then you must complete the steps listed in the “Connecting to external ducting”...
-
Page 17: Connecting To External Ducting
Connecting to external ducting o Connect the coupling to the top of the cooker hood, using two of the smaller screws provided. o Connect a Ø125 mm ducting hose to a discharge outlet that is suitable for cooking vapours. o The discharge outlet should have a cross section of at least 150 cm²... -
Page 18: Extraction Mode Or Recirculation Mode
Extraction mode or recirculation mode? IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. What is the difference between extraction and recirculation modes? In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting. -
Page 19: Troubleshooting
It is normal to get a certain amount of noise and vibration, due to the extraction capacity of the cooker hood. DO NOT MAKE ANY ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. IF THE APPLIANCE IS STILL NOT OPERATING CORRECTLY, PLEASE CONTACT AUTHORISED SERVICE AGENT BY VISITING WWW.CLASSIQUE.CO.NZ... -
Page 20: Warranty Card
Authorised Service Agent. onto www.classique.co.nz locate your nearest Service Agent. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if a service agent is asked to attend whilst the product... -
Page 24: Contact Details
Classique Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.Classique.co.nz...
