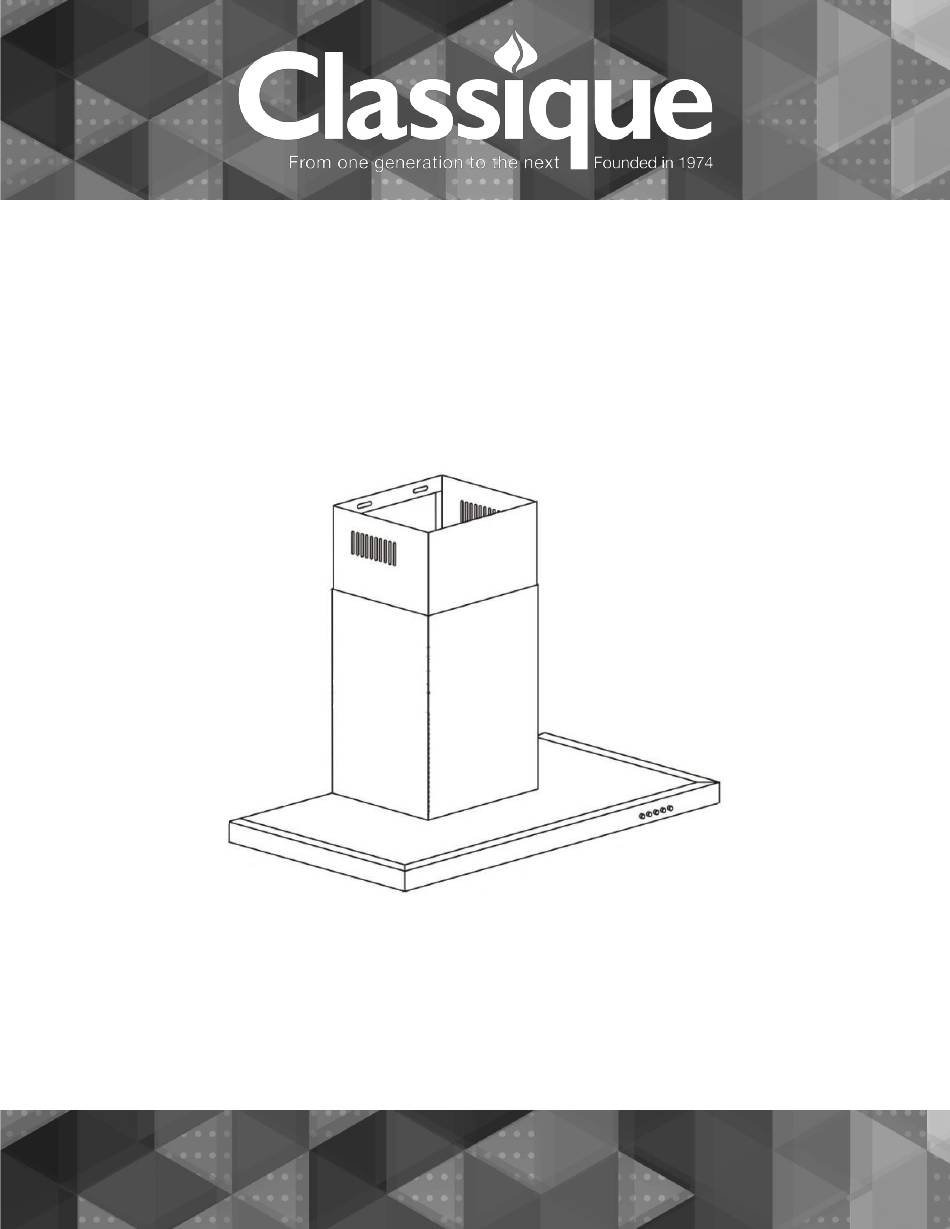

User Manual for your Classique
600/900mm Stainless Steel Box Canopy Rangehood
CLRH60BLSS
CLRH90BLSS
NOTE: This user manual contains important information including safety &
installation points which will enable you to get the most out of your Classique
appliance. Please keep it in a safe place so that it is readily available for future
reference.
Advertisement
Table of Contents
Related Manuals for Classique CLRH60BLSS
Summary of Contents for Classique CLRH60BLSS
- Page 1 NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Classique appliance. Please keep it in a safe place so that it is readily available for future...
-
Page 2: Table Of Contents
Contents Environmental note Important safety information Specifications of your rangehood Using your rangehood Before first use To use your rangehood Cleaning your rangehood The grease filter Maintenance Removing and cleaning the grease filter Changing a light bulb Fitting the carbon filter Installation Electrical connection Before beginning installation... -
Page 3: Environmental Note
Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 4: Important Safety Information
Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from. - Page 5 o When installed between adjoining wall cabinets, the cabinets must not overhang the hob. o The edges of the rangehood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the rangehood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced...
- Page 6 o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose. o Do not install above a cooker with a high level grill. o Never leave frying pans unattended during use as overheated fats and oils might catch fire.
-
Page 7: Specifications Of Your Rangehood
Specifications of your rangehood CLRH60BLSS CLRH90BLSS Product dimensions Height: 640 – 1220mm Width: 600mm (CLRH60BLSS) / 900mm (CLRH90BLSS) Depth: 500mm Your rangehood is fitted with: o Modern LED lighting (2 lamps) o Easy-reach pushbutton controls o 3 speed fan o Brushed stainless steel finish... -
Page 8: Using Your Rangehood
Using your rangehood Before first use IMPORTANT: This process must be followed before the rangehood is used for the first time. You should use a mild liquid detergent and a damp cloth on all the external areas of your rangehood before it is used for the first time. This will help to remove any residues from the manufacturing process. -
Page 9: Cleaning Your Rangehood
Key: ‘V’- Motor Off button ‘W’ - Motor operation: 1 - low speed, 2 - mid speed, 3 - high speed. ‘U’ - Light ‘ON/OFF’ button - This button controls the light Please note that your rangehood can be used either in recirculation mode or in extraction mode. -
Page 10: Maintenance
o To prevent this fire hazard, the metal filter should be cleaned regularly. Depending on use, this should be done every two months, using hot water and normal washing-up detergent. IMPORTANT: Do not wash the grease filter in a dishwasher as the chemicals can cause damage. -
Page 11: Fitting The Carbon Filter
o Remove the grease filter by sliding the securing nibs at the sides of the grill on the underside of the rangehood. o Disconnect the internal plug leading to the LED light o Squeeze the spring clips holding the LED light in place and draw the assembly out of the rangehood o Replace in reverse order using only genuine spare part SYKL10. -
Page 12: Installation
Installation IMPORTANT: Before installation read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters. The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric... -
Page 13: Before Beginning Installation
o The brown wire must be connected to the terminal marked “L” (live), or coloured red. ⏚. o The green/yellow wire must be connected to the terminal marked “E” or Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. -
Page 14: Installing Your Rangehood
Installing your rangehood IMPORTANT: You will have to decide before installing your rangehood whether to use it in extraction mode or recirculation mode. Please refer to page 17 to understand the differences between these two modes. o We recommend that at least two people install this rangehood. o If you are using the appliance in recirculation mode, then PLEASE NOTE that all of the vent in the upper chimney section must be exposed. -
Page 15: Fitting The Chimney
3) Feed the exhaust ducting to your desired position then adjust the height of the inside chimney to the inner chimney bracket and screw in place. Once the position is fixed secure the unit with two safety screws through the Ø6mm holes in the back casing. - Page 16 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D). 11) Take the flat bracket (E) and place it between the two pencil marks that you made in step 9.
-
Page 17: Connecting To External Ducting
o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied. o Secure the top of chimney section (C) to the flat bracket, using the screws provided. o Slide chimney section (D) inside of chimney section (C). Then secure the L shaped bracket to the wall, using the same method as you have just used to secure the lower bracket. -
Page 18: Completing The Installation
o Connect a 150 mm ducting hose to a discharge outlet that is suitable for cooking vapours. Please note that the ducting hose is not supplied with the appliance but one can be obtained from the Retail outlet where you purchased your appliance. o The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend. -
Page 19: Extraction Mode Or Recirculation Mode
Extraction or recirculation mode? IMPORTANT: You will have to decide prior to installing your rangehood whether to use it in extraction mode or recirculation mode. What is the difference between extraction and recirculation modes? In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting. -
Page 20: Troubleshooting
Where do I go to get parts for my rangehood. o If you need bulbs, filters, or semi-rigid aluminium ducting for your rangehood, please contact the retailer from where you purchased it, or visit www.classique.co.nz/service for more information. - Page 21 My rangehood is not working properly. Do not attempt to repair the appliance yourself. If the appliance is not operating correctly please contact an authorised service agent. Go to www.classique.co.nz or phone 0800 M10 HLP / 0800 610 457 to locate your closest service agent.
- Page 23 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.classique.co.nz Phone 0800 M10 HLP 0800 610 457...
