Installation Options
On the Television: If your television provides a wide, level and
stable platform, the Motif X can be placed (with or without the
stand) directly on top of the television (see figure 2). If using the
Motif X without its stand, the stands removable grip arms should
be used beneath the Motif X to provide traction.
On the Floor: Placing the Motif X on the floor might position it
too low to blend with the front speakers (see figure 2). If placing
the Motif X on the floor is the best placement for your system,
the adjustable stand will allow you to tilt the Motif X towards the
listening position.
On the Wall: The brackets allow you to mount the Motif X on
the wall (see figures 3 and "Mounting the Motif X On A Wall").
WARNING! Installation other than that described in
the body of this document requires specific documen-
tation from MartinLogan.
On-Wall/Off-Wall Acoustic Contour Switch
Motif X features a unique 'on-wall/off-wall' switch that tailors
acoustic equalization to either installation option. Simply set
this switch to On-Wall if mounting to a surface. Set the switch
to Off-Wall if the Motif X is more than four inches from a wall.
Setting this switch ensures that you will achieve total system
matching in even the most diverse setups (such as systems mix-
ing on-wall and off-wall installations).
Using Motif X Without the Stand
If using the Motif X without its stand, the stands removable grip
arms should be used as feet beneath the Motif X to provide trac-
tion (see figure 4).
Using the Motif X With the Stand
The stand shipped with the Motif X loudspeaker is
designed for use only with the Motif X. Use with
other appliances may result in instability causing
possible injury.
To install the Motif X with the adjustable stand set the speaker
atop the stand (figure 5). To optimize performance the Motif X
may be tilted on its stand to point towards the main listening
position . After you have placed your Motif X in its final location,
gently press the lever found on the rear of the stand and pivot the

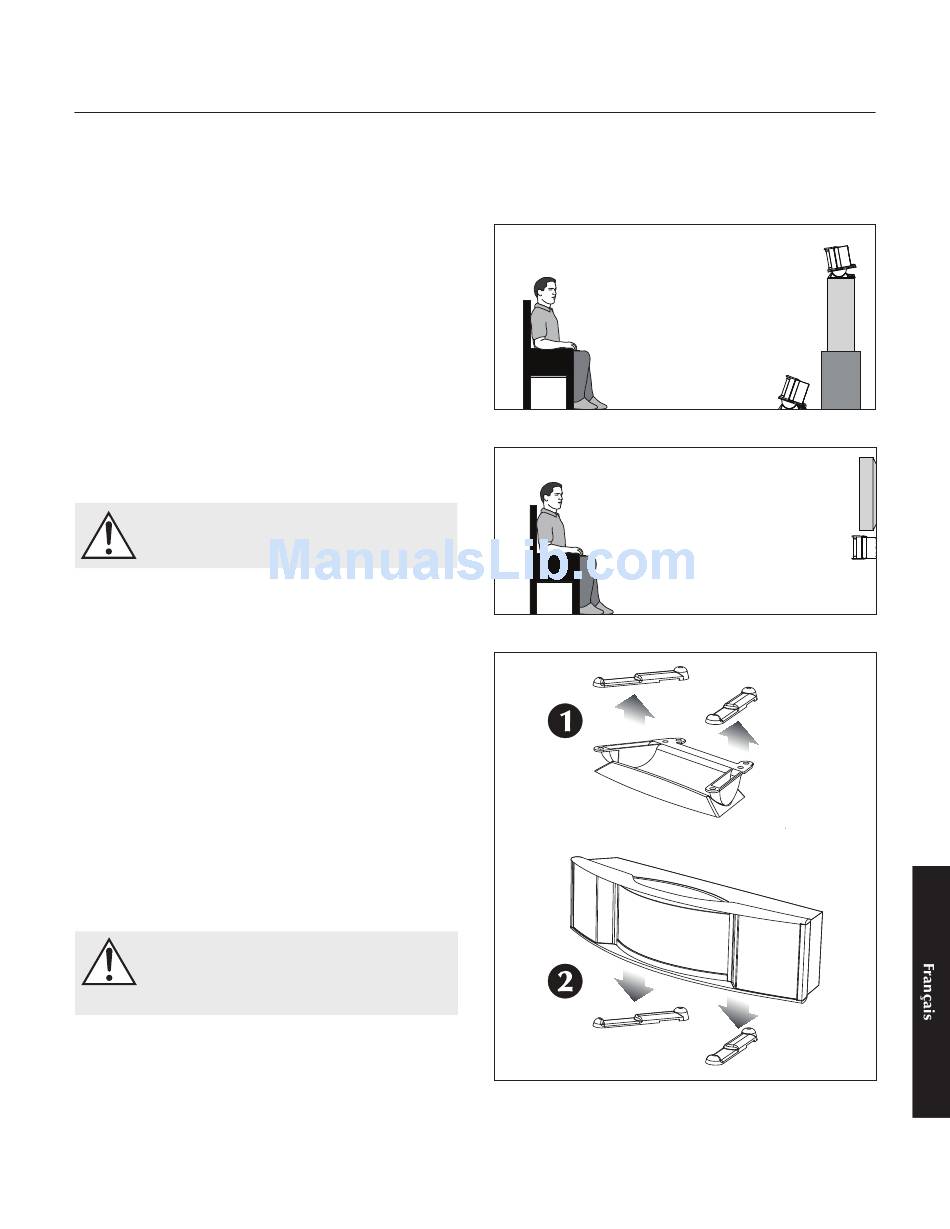

Figure 2. Motif X installation on the floor or on a television.
Figure 3. Motif X installation on a wall.
Figure 4. If Motif X is to be used without the adjustable stand, remove
the grip arms from the stand and place them beneath the speaker.
