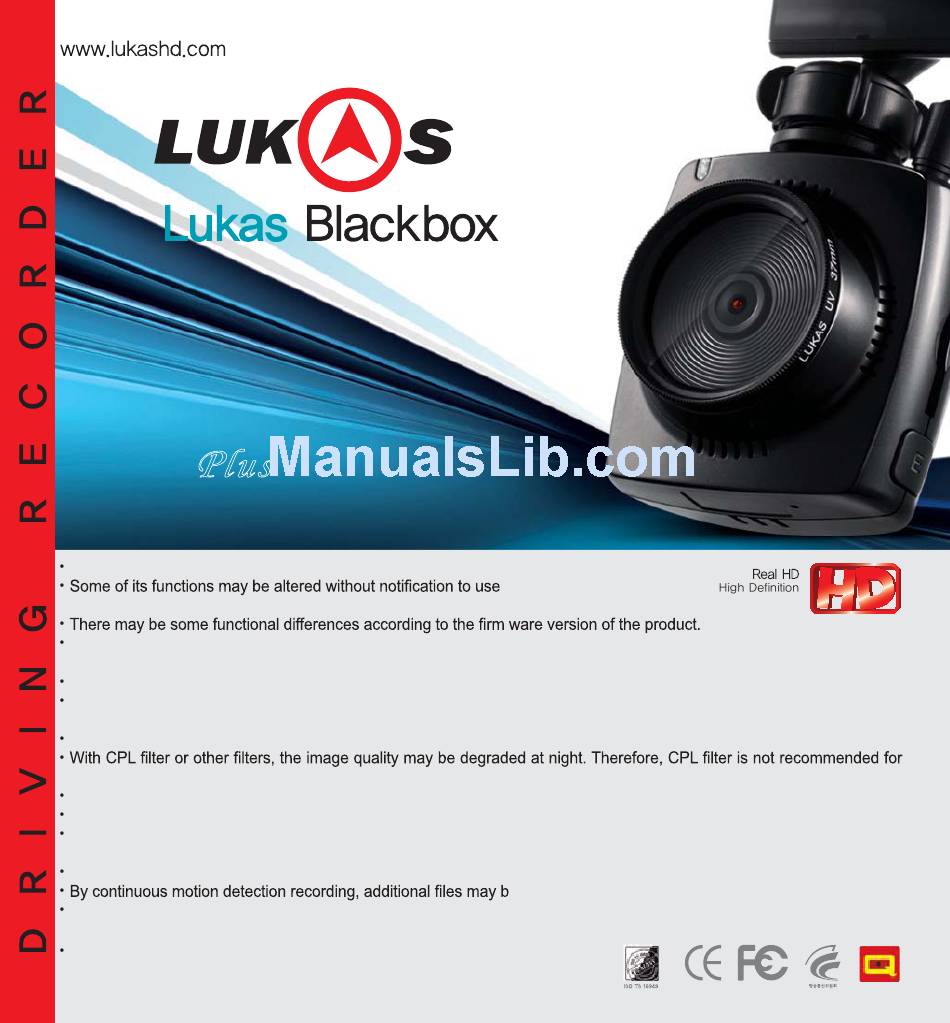

Driving
Recorder(Dashcam)
P
LK-6200
lus
User's Manual
Be sure to read the manual for the correct use of this product.
rs for the functional
improvement of product.
This product is an accessory for safe driving. In case of the car accident, all responsibility lies on the consumer.
Therefore, use it appropriately for its purpose.
In some PC products, Lukas viewer may not be supported.
The operation of blackbox can influence other electronicdevices(FM, DMB etc.) and degrade the reception sensitivity by
generating electromagnetic waves. Install blackbox as far as possible from the antennas of other devices.
In a dim area, it may generate a noise in the recorded image.
the one who drives a car or monitors cars in the parking lot at night.
When connecting GPS, be sure to cut off the power of blackbox.
In the event of sudden frame change or recording mode change, it causes a loss in image data (0~5sec).
When installing it, be careful not to interfere the driving with it. We have no responsibility in the car accident due to the
wrong installation.
When the car is stopped or parked, the recorded image may be shaken due to the car vibration.
e generated.
Motion detection may be malfunctioned due to changes in
surrounding amount of light, weather and surrounding environment.
This product is designed to supply 3 line power (B+, ACC, GND)
with built-in low voltage cut-off function.
User's Guide
... 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lukas LK-6200 Plus
Summary of Contents for Lukas LK-6200 Plus
- Page 1 This product is an accessory for safe driving. In case of the car accident, all responsibility lies on the consumer. Therefore, use it appropriately for its purpose. In some PC products, Lukas viewer may not be supported. The operation of blackbox can influence other electronicdevices(FM, DMB etc.) and degrade the reception sensitivity by generating electromagnetic waves.
-
Page 2: Table Of Contents
Thank you for purchasing Lukas blackbox! Contents This manual was based on the Lukas Plus blackbox model of Qrontech, and there may be some errors and omissions in technology and edition. 1. Attentive Items in Usage ··························································· 4 Visit our website www.lukashd.com... -
Page 3: Attentive Items In Usage
70°. (When 'Use of High Temperature Safe Mode' is set in the PC by our company. The responsibility of product disorder due to this shall be borne by the user. viewer program environment.) ... Lukas Blackbox User’s Manual ... 5... -
Page 4: Composition Of Product
22.# Since no battery-discharging-protection function is in this product, connecting blackbox directly to vehicle’s battery can cause battery discharge. In order to prevent this, install Lukas power safty device together with blackbox. 23.# In case that there is or seems to be a problem in the product, contact seller or manufacturer... -
Page 5: Names Of Product Parts
Press E(6) button to format. Formatting starts as ‘For’ stops blinking. Then voice guidance message sounds. After the completion of formatting, it automatically reboots. (duration time: about 12 sec) Press M(13) button to cancel <LK-6200 Plus> <LK-6200G Plus> Features Environment setup is initialized. Back up ‘Setup’ folder to maintain the existing set value. -
Page 6: Installation Guide
For the accurate installation, we recommend user to have technical support for then adjust the angle while looking at the present image. assistance. Power connection using cigarette lighter power cable..Lukas Blackbox User’s Manual ... 11... -
Page 7: Recommended Installation Angle Of Product
Clear Image: HD Recording of 1280x720p / 16:9 Wide screen Viewing angle of Lukas blackbox can be adjusted up, down, left and right by user. As the image quality may depend on the view angle, it is better to adjust the angle properly according to Viewing angle that minimizes distortion: the following explanation. -
Page 8: Segment Led Messages And Voice Guidance
7. 7 Segment LED Messages and Voice Guidance ■ 7 Segment LED Messages of Lukas Blackbox ■ Equipped with vehicle battery discharge-prevention system: Possible to set low-voltage cut-off function by connecting B+, ACC and GND wires. (Continuous power cable) 7 Segment LED... -
Page 9: How To Use
8. How to Use ■ Power Connection ■ ■ 7 Segment LED Messages of Lukas Blackbox ■ First, check if SD memory card is inserted into the main body. Then, start the engine while the power of product is connected. (Keep the power ON.) -
Page 10: Check Of Current Image
80% of SD card’s total capacity is setup as AlwaysMovie, 10% is setup as EventMovie, and remaining Insert the memory card into the PC or notebook, and play it with Lukas viewer or a general media player. 10% is setup as MotionMovie. -
Page 11: Product Specification
Continuous motion detection recording may generate additional files. SD/SDHC Memory card, SDXC available in part Storage Medium (Basic 8GB / Max. 128GB) Player General media player / Lukas viewer Audio Built in microphone / speaker Power DC 9V~24V Video Output... -
Page 12: Quality Assurance
When asking the repair, please present this warranty. We are not responsible for any costs incurred to install or uninstall the product, regardless of warranty status. 7. For more information, contact manufacturer or your local dealer..Lukas Blackbox User’s Manual ... 23... - Page 13 Ver.01...
