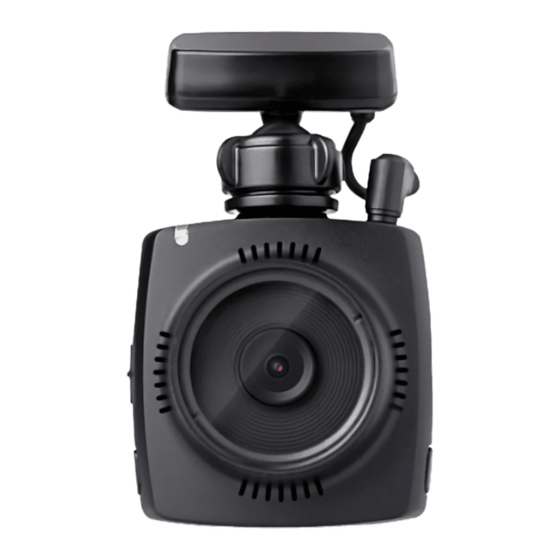

LK-7500V
1CH DASH CAM (Wi-Fi)
User Guide
ver. 1
LUKAS Dash Cam
※ Some functions in this user guide may not be available depending on the installed firmware version.
※ Wi-Fi connection may sometimes be unstable or be unavailable depending on surrounding environments and different types of smart phones(the make and model).
※ OS versions required for the Lukas App : Android 6.0 or higher, iOS 8.0 or higher.
※ The Lukas App is available on the Google Play Store and the App Store.
※ The manufacturer is not held liable for damages as a result of road accidents due to incorrect operation of ADAS features.
※ The level of accuracy of ADAS data can vary depending on the user's environment. It is recommended that you use the data for reference purposes only.
※ This device has Format-Free function. With this function, some of the memory card settings can be restricted. (e.g. length of a video file, image quality, etc.)
※ This device has Format-Free function. With this function, the memory card efficiency may be affected.
Advertisement
Table of Contents
Related Manuals for Lukas LK-7500V
Summary of Contents for Lukas LK-7500V
- Page 1 ※ Wi-Fi connection may sometimes be unstable or be unavailable depending on surrounding environments and different types of smart phones(the make and model). ※ OS versions required for the Lukas App : Android 6.0 or higher, iOS 8.0 or higher.
- Page 2 ▒ Read Carefully Before Using This Device ▒ ※ Before using your LK-7500V, please read through this user guide to ensure the correct use of the device. ※ Qrontech Co., Ltd. reserves all rights to this user guide in accordance with the copyright law.
-
Page 3: Table Of Contents
5-2. Getting Started with Lukas App ‥‥‥‥‥‥ 1-3. GPS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 5-3. Connecting to Lukas App ‥‥‥‥‥‥‥‥‥ 1-4. Memory Card ‥‥‥‥‥‥‥‥‥‥‥‥‥ 5-4-1. How to Use Lukas App : SD Card ‥‥‥‥ 1-5. ADAS ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 5-4-2. How to Use Lukas App : Lukas Connectiion ‥‥‥‥‥‥‥‥‥‥‥ Features ‥‥‥‥‥‥‥‥‥‥‥‥‥... -
Page 4: Instructions For Use
7. Only use genuine accessories provided by the manufacturer. We recommend using genuine accessories that are tested safe and compatible with Lukas Dash Cams. We are not responsible for any problems caused by using other accessories not supplied by the manufacturer. - Page 5 Parking Mode without an extra battery pack. If you suspect any malfunction of the device, stop using the device and contact your local distributor or Lukas CS center. User's Guide ...
-
Page 6: Installation
4. When the vehicle is at a stop, driving speed may show between the 1~30km/h range depending on the GPS reception status. 5. GPS data can be lost if the device is not turned on. 6. Time on the device may not be accurate if the device does not have GPS..LUKAS Dash Cam... -
Page 7: Memory Card
▒ 1-4. Memory Card ▒ 1. Do not remove the memory card while the device is recording. Make sure you completely turn off the device before removing the memory card. Removing the card when the power is on can damage the card and video files, as well as the device. -
Page 8: Adas
4. It is recommended that you use ADAS data for reference purposes only. We are not responsible for any road accidents as a result of incorrect operation of ADAS. ※ The level of accuracy of ADAS data can vary depending on the user's environment. It is recommended that you use the data for reference purposes only..LUKAS Dash Cam... -
Page 9: Features
2. Features ▶ High-Clarity Video Quality - 2.1M Effective Pixel (1/2.9"), Sony STARVIS Exmor R Sensor ▶ Distortion-Free Recording with Wide-Angle Lens 1920X1080p Full HD Recording at 60fps / 16:9 Wide View - Viewing Angle: Diagonal (approx. 145°), Horizontal (approx. 124°), Vertical (approx. 61°) ▶... - Page 10 - Provides dash cam operating status including infromation such as time, date, speed, firmware version. Video Playback ▶ - Recorded videos can be viewed both on the Lukas App and on Lukas Viewer, as well as other media players (Windows & Mac.). ▶ Firmware Upgrade - Firmware will be upgraded to enhance performance and to correct errors.
-
Page 11: Device Overview
3. Device Overview ▒ 3-1. In the Package ▒ CPLFilter Main dashcam unit microSD Card Hardwire Power Cable Fixed-Type Bracket Set (Optional) (Optional) Cigar Power Cable UV Filter microSD Card Adapter Wi-Fi Dongle Quick Start Guide (Optional) <Bundled> <Optional> ※ Make sure you have all the components listed above. ※... -
Page 12: Names & Functions Of Each Part
Device model name & serial number ※ Press the E and M button at the same time for about 3 seconds to go into format standby mode. Press the left key to format, and press the right key to cancel..LUKAS Dash Cam... -
Page 13: Installation
4. Installation ▒ 4-1. Before Installation ▒ ※ Before installation, please park the vehicle on a level surface and bright area. Turn off the engine and remove the key. (Be sure the parking brake is ON) ※ Pick a spot for the device behind or near the rear view mirror, so that there is no obstruction to a driver's vision. ※... - Page 14 Turn on car ignition and check if the segment display shows Using the Lukas App, view the live-stream video to adjust the firmware version of the device. camera lens. Approximately 40% of the car bonnet should be ※...
-
Page 15: How To Hardwire Continuous Power Cable
▒ 4-3. How to Hardwire Continuous Power Cable ▒ ▒ 4-3. How to Hardwire Continuous Power Cable ▒ Locate the fuse box and the Identify a ACC fuse to connect chart that shows what each with the red ACC wire and insert fuse is for. -
Page 16: Check Installation Of Continuous Power Cable
▒ 4-4. Memory Card Recording Time ▒ Video is recorded at 3-minute interval for continuous recording, 30-second interval for motion and event recording. Below table is based the microSD card setting which is set to the following proportional storage assignment for each recording mode : continuous 70%, motion detection 20%, event/emergency 10%. -
Page 17: Memory Card Recording Time
▒ 4-5. Segment LED Display Message ▒ Message Meaning Dash camera powers up Firmware version Time Display Time/Date/Speed Display Date Display - When driving speed exceeds 5km/h, the display will only show speed. - When driving speed is below 5km/h, the display will show date and time or both according to user settings. - Change settings at Settings >... - Page 18 - Exiting High Temperature Protetion Mode : Displays ‘SAFE’ and resumes recording Indicates High Temperature Protection Mode Weekly Alarm - Notifies a specific day of the week. - Displays when dash camera powers on. Displays when FCWS warning is activated Displays when LDWS warning is activated ... LUKAS BLACKBOX...
-
Page 19: Device Operations
- Check recorded video : APP - When you touch 'Lukas View' icon on the Lukas App and select a video from the list, you can watch the selected video. PC - You can play back recorded videos using Lukas Viewer or other media players by inserting the microSD card to a PC (Use a microSD card adapter). - Page 20 Blue LED light blinks slowly Red LED light blinks fast ※ Security LED can be turned ON and OFF in settings either on the Lukas App or Lukas Viewer. (Settings > Basic) 5. Recording During Driving - Continuous Recording : Continuously records and saves 3-minute videos in AlwaysMovie folder.
- Page 21 (10 seconds prior and 20 seconds after motion is detected) ※ Settings for Motion Detection Recording can be changed on Lukas Viewer or the Lukas App. (Settings > Additional) ※ Motion Detection Recording only records when motion is detected. When motion is detected red Security LED light will blink fast. (Front Cam) ※...
-
Page 22: Getting Started With Lukas App
Download the Lukas application on your smartphone. The Lukas App can be found on the Google Play Store and the App Store. - The Lukas App can be used with Android 6.0 or higher, iOS 8.0 or higher. - The Lukas App may not be supported depending on the types of smartphones. -
Page 23: How To Use Lukas App : Sd Card
▒ 5-4-1. How to Use Lukas App - Internal Storage ▒ ※ Click on 'Internal Storage' icon to watch downloaded videos on your smartphone. Back : Go back to the main screen. Always Video : Only shows Always(Continuous) videos on the list. -
Page 24: How To Use Lukas App : Lukas Connectiion
▒ 5-4-2. How to Use Lukas App - Lukas Connection ▒ ※ Connect with your Lukas device to view captured footage. ※ Green indicates a successful connection with the Lukas dash cam. Back : Go back to the main screen. -
Page 25: How To Use Lukas App : Settings
▒ 5-4-3. How to Use Lukas App - Settings ▒ ※ Settings only available when the device is connected to a smartphone. ※ Some of the menu items may be different depending on the model of the smartphone. ※ Keep the dash cam turned on while saving the changed settings. -
Page 26: How To Use Lukas App : Information
: Go back to the main screen Version : Application version Firmware : Firmware version Lukas Homepage : Visit Lukas website for more information F1.0.2 ver. Choice Model : Choose between Lukas and Qvia logo for the main page of the application ... LUKAS Dash Cam... -
Page 27: Lukas Viewer
Others: Windows.NET Framework 4 or higher ※ Lukas LK-7500V records Full HD videos, and playing back the videos on a PC with low specifications may not be smooth. There might be occasional video and sound cuts, changes in play speed, and other minor errors. - Page 28 2. Lukas Viewer Overview GPS Information Set Time Settings File List Capture Video on Play File Open File List & Event Info Type Date Time FileName Always 2019-05-13 09:22:00 Alwa_201905 Always 2019-05-13 09:25:00 Alwa_201905 Alwa_20190513_092200_F.MP4 Always 2019-05-13 09:28:00 Alwa_201905 Always...
- Page 29 3. Device Settings on Lukas Viewer Users can change dash cam settings including video brightness, parking mode, time, Wi-Fi settings and etc. User's Guide ...
- Page 30 Dash Cam Voltage Recording Mode 2019.05.13 11:57:50 33Km/h A 2.7km 12.1V Always LUKAS Mic ON LK-7500V F1.0.2 H3 Vehicle Plate Number (Enter up to 8 digits) 10 11 Mic On/Off Model Name Firmware Version Image brightness (Indicates brightness setting 1~5)
-
Page 31: Specifications
Built-in 3-axis Impact Sensor (Impact, Sudden braking, Sudden starting) Option Dual Band(GPS+Glonass) Storage Media microSD : microSDHC / microSDXC (Standard 16GB, Max. 128GB) Viewer Program Lukas Viewer / Other Media Players Audio Built-in Speaker and Microphone Power & Current Power : DC 10V ~ 24V GPS OFF Consumption Current Consumption: 169mA (2.2W at 13.4V) -
Page 32: Warranty
▒ Certified Company Info. ▒ 1. Certified Company : Qrontech Co., Ltd. Conformity European Marking 2. Device Name(Model Name) : Lukas Dash Cam(LK-7500V) ES Joint Specification Certificate 3. Certificate No. : R-R-QRN-VCUTY 4. Manufacturer/Country of Origin : Qrontech Co., Ltd. / Korea U.S Federal Communications...
