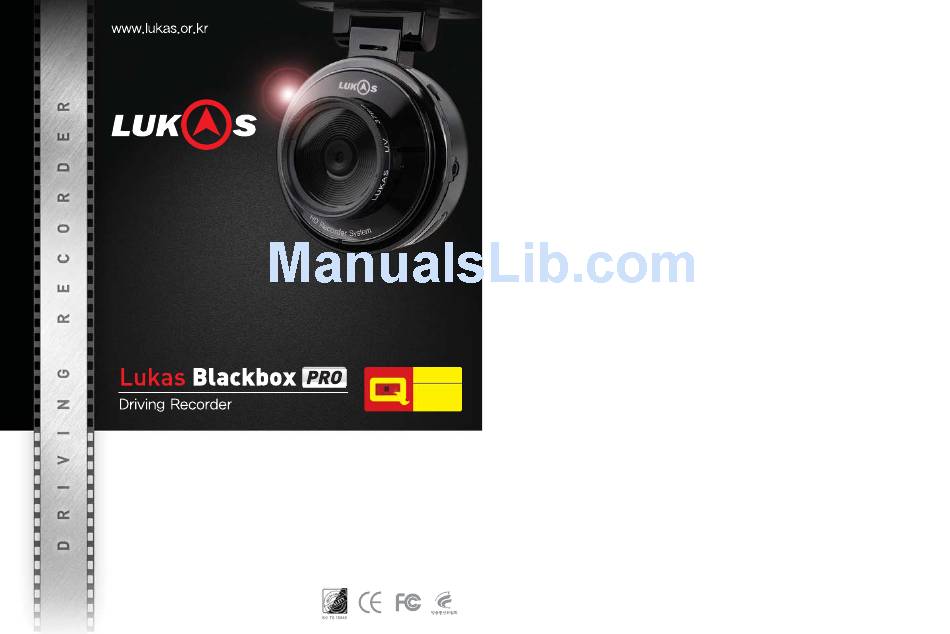

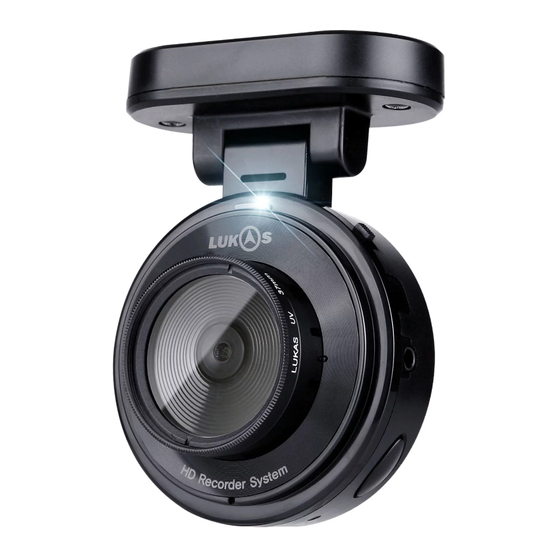

User's Manual
- For proper use of the product, please be sure to read the user's manual thoroughly.
- Some features of the product are subjected to change without prior notice to the users to improve the
product's performance.
- Depending on the product's firmware version, functional differences could be found.
- This product is an ancillary device for the safe vehicle operation. In case of any accident, all responsibilities
belong to the consumer. Therefore, please operate the product in accordance to its purpose.
- Depending on the PC specification, LUKAS Exclusive Viewer won't be supported.
- Electromagnetic wave may be produced by Black Box operation which interfering receptions of other
receivers (FM radio, DMB and etc.). Therefore, please install the box as far as possible from the receiver's
antenna(s).
- The low luminance intensity condition may cause noises in the video recording.
- Since the night video quality may be degraded by CPL and other filters, the use of CPL filter is not
recommended to the driver conduct night parking surveillance and night driving frequently.
- Depending on GPS reception condition, the automatic parking
mode may not be available in shadow areas of GPS signal
such as apartment complexes and building concentrated
areas.
Q Quality
Guaranteed
This Product is guaranteed by
the quality test and inspection
specialized institution, Korean
Environment & Merchandise
Testing Institution
T E L : (02) 8 6 4 - 8 9 1 3
Advertisement
Table of Contents
Related Manuals for Lukas Blackbox PRO
Summary of Contents for Lukas Blackbox PRO
- Page 1 User's Manual Q Quality Guaranteed This Product is guaranteed by the quality test and inspection specialized institution, Korean Environment & Merchandise Testing Institution T E L : (02) 8 6 4 - 8 9 1 3 - For proper use of the product, please be sure to read the user’s manual thoroughly. - Some features of the product are subjected to change without prior notice to the users to improve the product’s performance.
- Page 2 Content Thanks for buying our Lukas black box. This manual was prepared for a Lukas HD class black box model of 1. The Caution during Operation QRONTECH Co., Ltd., so there may be errors or omissions in technology or editing. 2.
-
Page 3: Cautions During Operation
1. Cautions during Operation 1. Do not leave the product under high or low temperature for a long period of time. If the 9. Please use QRONTECH authorized genuine products for the power cable or product is exposed to the sun light for a long period time in the summer or left in a cold accessories. - Page 4 2. The Product Composition 18. Format the SD memory card at least once a week. (Recommendation based on 8GB) - Please check if there is any missing component from the product component items as Black Box always can write and delete. However, the actions can generate the strain to shown on the photo.
-
Page 5: Installation Sequence
3. The Name of Each Component 4. Installation Sequence Please keep the wind shield.. clean before the recording to secure the optimal video quality. If Black Box’s lens is stained with foreign substance (finger print), it may affect the video recording negatively. - Page 6 5. Recommended Installation Angle LUKAS Black Box enables the user to adjust the view angle to various directions of For the safety, please check the followings prior to the installation and perform installation up/down/left/right. according to the sequence. Since the view point does affect the video quality, the description is made with the Start the installation after parking the vehicle in a flat and bright place and having the key examples of the proper view angles.
- Page 7 6. The Product Feature made. HD Level High Quality Recording Resolution - 1280X720P Pixel, Max. 24 Frame Built-in High Performance Microphone - Simultaneously Records the sound data with the video recording. (The set sound recording configuration is unchanged or sustained even the power is turned off.) 16:9 HD Display Ratio - With two times larger sized display compared to VGA image, more detailed video information is delivered.
- Page 8 7. Segment and Buzzer Signal LUKAS Black Box SEGMENT LED Messages The display shown on the initial booting of Black Box gives the number of the current firmware If a SD Card is absent or impossible to recognize, With 0.5 sec. version.
- Page 9 8. Operation Instruction Power Connection Recording Termination First of all, check if the SD memory card is inserted in the main device. Then, start the engine When the engine is turned off, the power to the product is off and the recording is terminated. when the power is connected (having the power button on).
- Page 10 Current Video Review Driving Record Review 1. If a model has the video out, the current video can be displayed on an external device such as This feature is only available on the GPS model. a navigation device or a TV connected with AV in feature which can be useful for Black Box LUKAS Black Box stores approx.
- Page 11 9. LUKAS Exclusive Viewer Recorded Video Play Screen Description Installation Instruction 1. Install Lukas viewer.msi. (It is stored in the memory card included in the purchased black box. Also, the file is downloadable from LUKAS Website.) 2. Run Lukas viewer installed on the background of Windows. LUKAS Viewer’s Composition Driving Date: Year/Month/Date Day of Week Customer s Vehicle Input Number...
- Page 12 GPS Map Information Window Terminal Environment Configuration The map showing the driven vehicle s location in displayed at the right bottom of LUAKS Using Environment Configuration in the program menu, the product s configuration value Viewer. (If the PC is not connected to the internet or the GPS reception is not good, the map can be changed by a user.
- Page 13 10. Memory Card Instruction No Name Function Description The Recording Time Table for Persistent Recording SD memory card Sets the storage space ratio of Persistent Video and Event Video. Each Memory Size Memory 75:25 Memory Size Set 80:20 90:10 Size Set (Standard) G-SENSOR G-SENSOR Sensitivity can be set from 1 to 5.
-
Page 14: Product Specification
11. Product Specification 12. Customer Support FAQ Q. Trying to receive the insurance discount. Where is the product serial number located? Item Specification A. The product s serial numbered is attached on the face with the SD memory card slot. Camera 1 Camera, (1.3M Pixels CMOS Digital Sensor) View Angle... - Page 15 Center (02-2093-1257). Q. The left and right sides of the stored video are blurring. Since the most of the problem happens by the locked SD memory card, please check the card s lock. Q. The vehicle is parked on a slope. But, Parking Mode is failed (only on the HD quality Black Box).
-
Page 16: Warranty Service Support
13. Warranty Service Support 14. Product Warranty The Verification Items before the Service Request Product Name Product S/N - If the product needs the service, please submit a simple description to QRONTECH s Customer Customer Name Purchase Date Support Center or LUKAS website s Service Inquiry for fast and accurate service. - During the service, depending on the situation, the product s data may be needed to be Customer Purchase Place...
