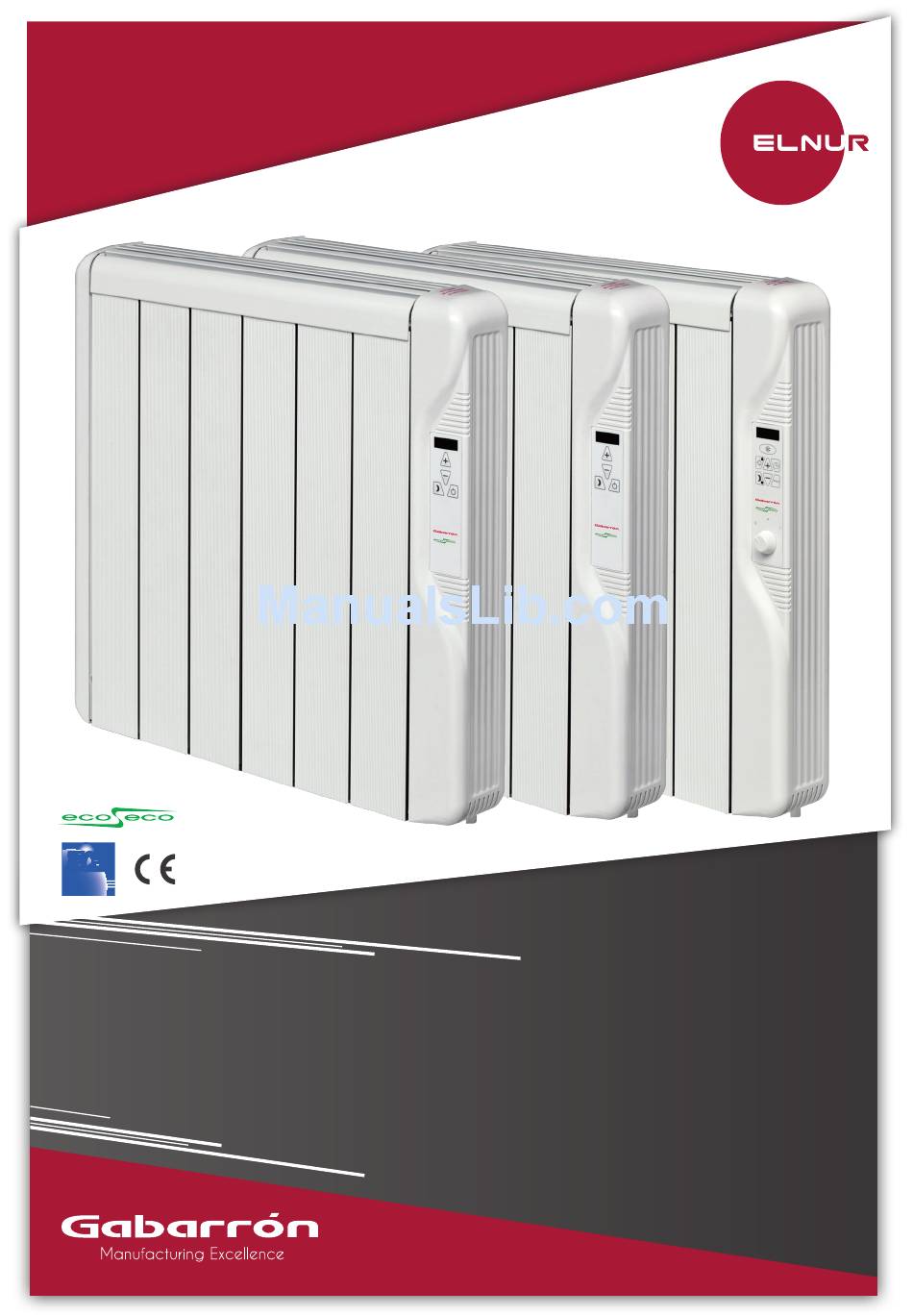

INSTALLATION INSTRUCTIONS
AND USER GUIDE
IECEE
IECEE
CB
SCHEME
INTERTIA ELECTRIC RADIATOR
RX4P
RX6P
RX8P
RX10P
RX12P
RX14P
Please read these instructions before installing or
using this appliance for the first time
RX4F
RX4E
RX6F
RX6E
RX8F
RX8E
RX10F
RX10E
RX12F
RX12E
RX14F
RX14E
Advertisement
Table of Contents
Related Manuals for Elnur INTERTIARX4P
Summary of Contents for Elnur INTERTIARX4P
- Page 1 INSTALLATION INSTRUCTIONS AND USER GUIDE IECEE IECEE SCHEME INTERTIA ELECTRIC RADIATOR RX4P RX4F RX4E RX6P RX6F RX6E RX8P RX8F RX8E RX10P RX10F RX10E RX12P RX12F RX12E RX14P RX14F RX14E Please read these instructions before installing or using this appliance for the first time...
-
Page 2: Instructions On Installation
INSTALLATION INSTRUCTIONS 1.- WARNING The warranty of the heater will not cover any damage caused by non observance of any of these instructions. • The instructions should be retained for future reference. This guide must be kept and given to any new owner. •... - Page 3 Position and fix the brackets at the correct distance from the floor and hang the unit on the hooks of the brackets. And mark the wall. Use the polystyrene packaging to level the heater and protect the floor. Use the heater as a template and mark the fixing points on the wall using a pencil through the two fixing holes in the...
- Page 4 MODELOS RX-F DIGITAL CONTROL Digital display: It shows the temperature and It increases the other messages. temperature set point. Heating indicator: This small dot will be lit when heater consuming It decreases the energy. temperature set point. Start / Stop key: Press this key to start / stop the heater.
- Page 5 DIGITALS MODELS RX-E Digital DISPLAY: shows time, temperature other messages. Heating indicator: This small dot will be lit when Key + : heater consuming It increases the energy. values. SUN indicator Frost protection key: If the display shows the time the heater is in frost protection SUN key : mode.
- Page 6 T SUN, MOON AND TEMPERATURES The electronic programmer is able to handle three temperature levels during the 24h of the day. Press the key to set the SUN temperature. The display will show the SUN temperature value blinking. – Set the SUN temperature value by means of the keys and press the key to store the value.
-
Page 7: Cleaning And Maintenance
WEEKLY PROGRAMMES It is possible to allocate different programs to different days of the week. To do this, the controller has to be upgrade from 24hr mode (factory default) to 24hr/7days mode as follows: Move the selector to position, the display will be Off. Press the key and at the same time turn the selector to position maintaining the P-SE... - Page 8 WIRING MODELS RX-P R heating element Ts safety cut out C three way selector MODELS RX-F R heating element Ts safety cut out MODELS RX-E R heating element Ts safety cut out C three way selector...
- Page 9 WARNING: In order to avoid overheating do not cover the heater. The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
- Page 10 Telephone +44(0)1942 670119 technical@elnur.co.uk Manufactured by: ELNUR, S.A. Madrid, Spain www.elnur-global.com export@elnur-global.com Management System International Certifications: As a part of the policy of continuous product improvement Elnur reserves the right to alter specifications without notice. INSTALLATION INSTRUCTIONS AND USER GUIDE WEB VERSION...
