Summary of Contents for StarTech.com IDECASE25U2 InfoSafe

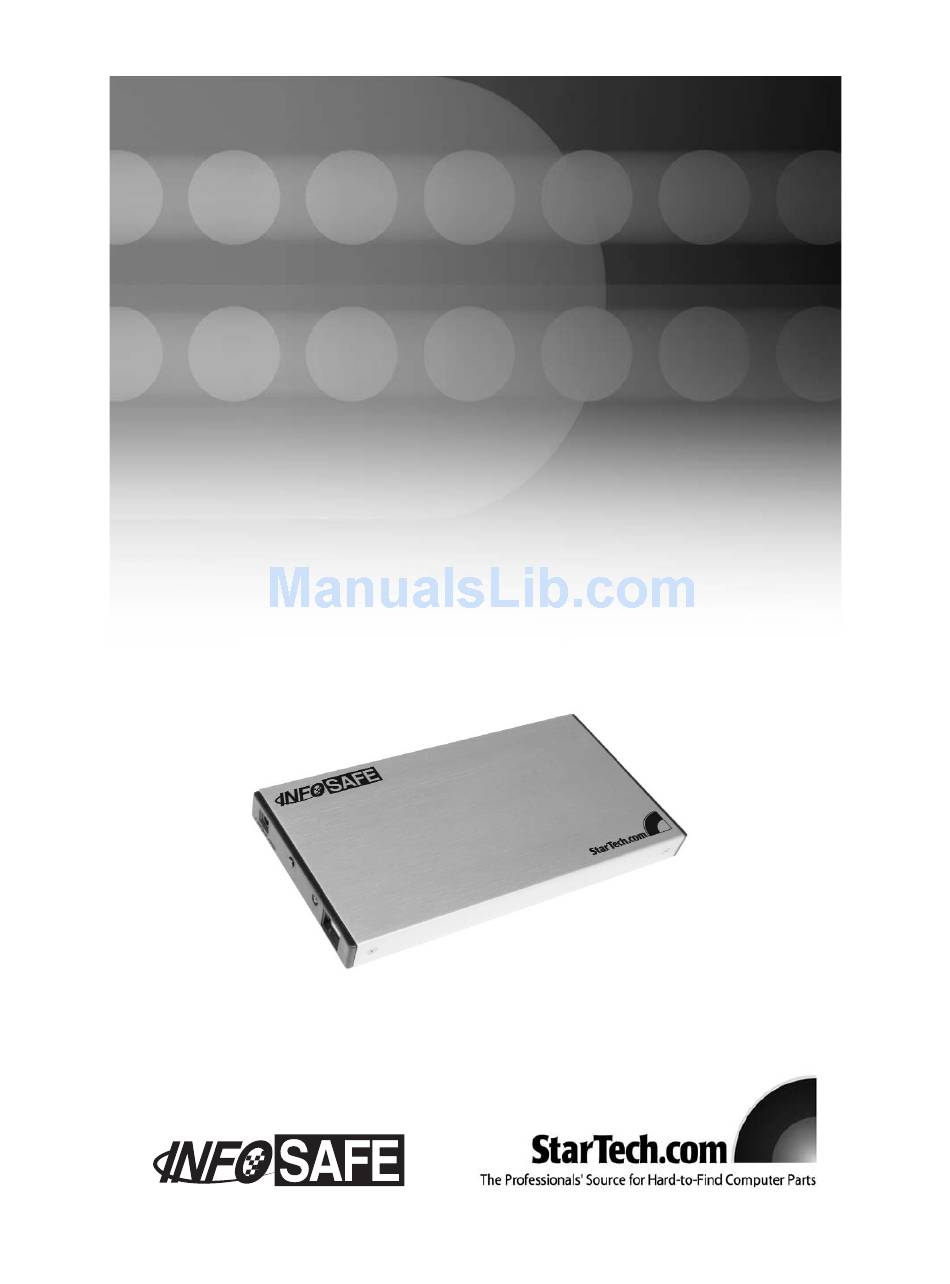

- Page 1 InfoSafe Mobile Drive Enclosure External USB 2.0 2.5” Hard Drive Enclosure with One-Touch Backup IDECASE25U2 Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........9 Accessory Products from StarTech.com ......10 Technical Support . -
Page 4: Introduction
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com InfoSafe external hard drive enclosure. This product allows you to turn virtually any standard 2.5” notebook computer hard drive into a portable storage solution. -
Page 5: Installation
Instruction Manual I I n n s s t t a a l l l l a a t t i i o o n n Installing a Hard Drive in the Enclosure Use caution when installing a hard drive in the enclosure. Excessive shock or force could damage the drive and/or the enclosure, resulting in data loss. -
Page 6: Installing Drivers (Windows 98Se)
Instruction Manual 6. Gently insert the tray into the enclosure, ensuring that the top of the tray matches the top of the enclosure and that the rear panel of the tray is flush with the outer edge of the enclosure. 7. -
Page 7: Disconnecting The Enclosure From A Computer
Instruction Manual provided using the included USB “Y” cable. If you wish to use an external power adapter with the drive enclosure, a universal adapter rated for 5V DC output at 1.6A and a tip with a positive center will work with the enclosure. Most electronics stores should be able to provide a generic adapter that meets these requirements. -
Page 8: Configuration And Use
Instruction Manual 7. When the install program has finished copying files to the computer, it will present you a summary of the software components installed. Click Next and then click Finish on the next screen to complete the installation. You can now configure the One-Touch Backup software. - Page 9 Instruction Manual window. (If you receive a warning the first time you attempt to configure simply click OK. It means the backup software has not found an existing task configuration file.) Close This closes the backup software window. You can still use the One-Touch backup button;...
- Page 10 Instruction Manual Active List Allows you set existing tasks as active or inactive. Opens the Task Status window. Task Detail Window You will be presented with this menu when adding a new task or modifying an existing task. The Browse Directory Window The Task Detail Window You can manual enter the path (i.e.
-
Page 11: Troubleshooting
Instruction Manual Task Direction: Backup Copies files from the computer to the enclosure. Restore Copies files from the enclosure to the computer. Synchronize Copies files as needed between the computer and enclosure so that both have the same files. The Task Status Window When you click the Active List button, you will be presented with this window. -
Page 12: Specifications
Instruction Manual Specifications Hard Drive Compatibility EIDE: ATA/33/66/100/133/166 drives supported (ATA/100/133/166 drives interface at ATA/66 speeds) External Interface/Data Transfer Rate USB 2.0 (backwards compatible with USB 1.1/1.0) Maximum data transfer rate: 480 Mbits/sec. (A USB 2.0 interface is required for maximum data transfer rates. -
Page 13: Accessory Products From Startech.com
A A c c c c e e s s s s o o r r y y P P r r o o d d u u c c t t s s f f r r o o m m S S t t a a r r T T e e c c h h . . c c o o m m Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 15 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
