Summary of Contents for StarTech.com HSB220SAT25B

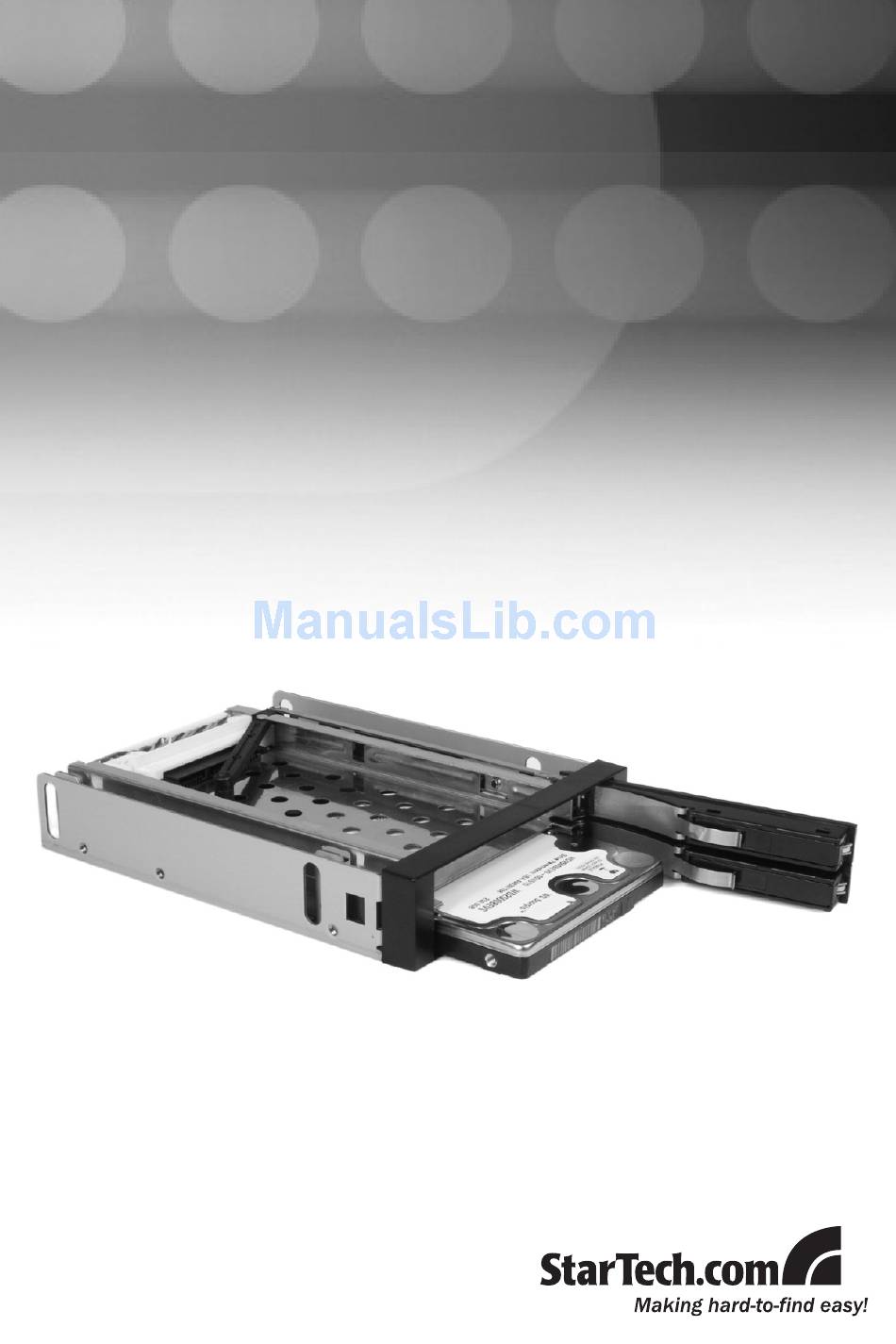

- Page 1 3.5” Bay 2.5” Dual SATA Hard Drive Hot-Swap Bay HSB220SAT25B User Guide...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Table of Contents Introduction ... 1 Package contents ...1 Installation and Usage ... 2 Hardware Installation ...2 Drive Installation ...3 Drive Removal ...5 Specifications ... 6 Technical Support ... 7 Warranty Information ... 7 Instruction Manual Instruction Manual... -
Page 4: Introduction
Also a perfect addition for operat- ing system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the HSB220SAT25B Dual SATA Hard Drive Hot-Swap Bay provides everything you need to expedite important projects. -
Page 5: Installation And Usage
Connect the 15-pin SATA Power Connector and 4-pin LED connector (provided by an included LP4-to-4-pin LED/15-pin SATA Power Y-cable) to the appropriate ports on the rear panel of HSB220SAT25B, as shown above. Repeat this connection with the second (included) Y-cable, connecting to the remaining ports on the rear panel of HSB220SAT25B. -
Page 6: Drive Installation
Ensuring the computer is powered down, remove the slot cover from a 3.5” floppy drive bay on the host computer. Gently, slide HSB220SAT25B into the now vacant 3.5” floppy drive bay, threading the connected cables through the opening, until the front panel of HSB220SAT25B is flush with the computer case front panel. - Page 7 Please note: It is essential that the drive be positioned properly within the drive bay. Attempting to install a drive with its interface improperly aligned with the drive bay in- terface could cause serious damage to both the drive and the drive bay.
-
Page 8: Drive Removal
220SAT25B, as removing drives while in use can damage the drive and any data contained within. Drive Removal To remove a drive from HSB220SAT25B: Open the front panel door by gently sliding the locking button from left to right. Gently pull the door open to eject the drive partially, then pull the drive... -
Page 9: Specifications
Instruction Manual Specifications Bus Type SATA II Supported Data Transfer Rate 3.0 Gbps (using SATA II drive) (Maximum) Supported Drive 2.5” SATA/SATA II Form Factor 2 x 15-pin SATA Power Female (external) 2 x 15-pin SATA Power Female (internal) Connector Types 2 x SATA 7-pin Data Female (external) 2 x SATA 7-pin Data Female (external) 2 x 4-pin LED... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
