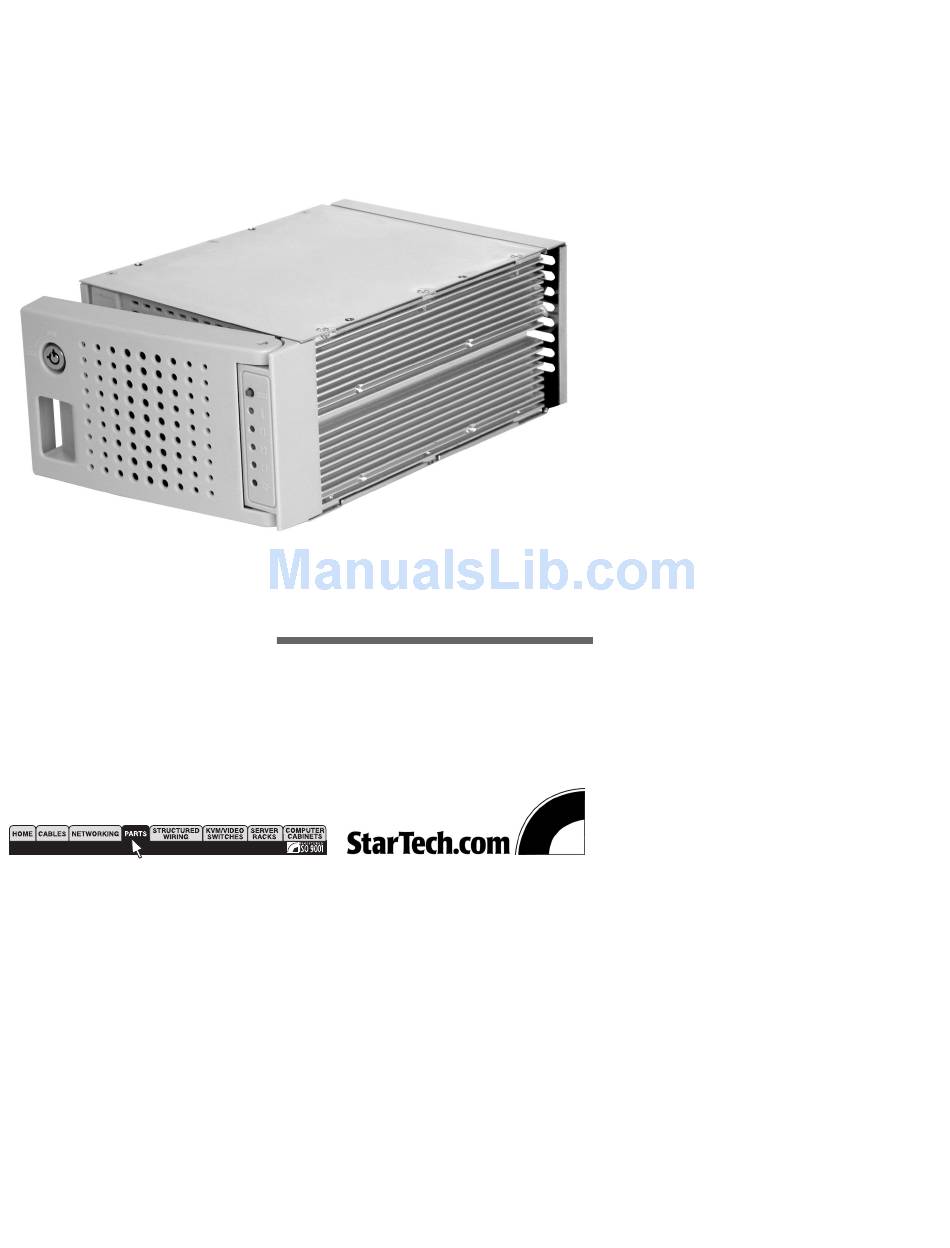

Page 1: Data Storage
Data Storage 3 Drive SCA U160 SCSI Lockable Backplane Installation Manual RAIDBAY3... -
Page 2: Specifications
Overview StarTech.com’s RAIDBAY3 is the perfect solution for building hot-swap SCSI RAID arrays. Up to (3) 3.5 inch drives can be installed in this all aluminum chassis, each in their own independent removable drive drawer. The frame and drawer design of the 5.25 inch full height (2 bay slots) chassis can increase the number of drives that can be... - Page 3 Installation Front Panel 1. Reset Switch - When overheating occurs, indicated by the buzzer sounding, you must press the “Reset Switch” button once to stop the buzzer. Press the button again to reset it to the original settings. 2. Overheeating LED - When overheating occurs, the LED will be lit 3.
- Page 4 Case Rear Panel 1. Reset Switch (for buzzer) 2. External Reset Switch 3. SCSI Connector to Controller 4. SCSI ID Setting Switch 5. 4-Pin Power 5V/12V* 6. Buzzer 7. SCSI Connector for Terminator** (see Appendix for more details)
- Page 5 SCSI ID Settings SCSI ID SCSI ID...
-
Page 6: Installing The Hard Drives
Installing the Hard Drives 1. Open the front panel. 2. Remove one of the inner trays by pressing on the release button. This will cause the trays arm to swing out. Hold the arm and pull the tray out. 3. Place the hard drive into the inner tray and using the screws provided secure the hard drive to the tray. - Page 7 Appendix Functions and Definitions of Rear Panel 1. JO1 Pin definition P1: +12V P2: GND P3: Power LED+ P4: Power LED- P5: HDD LED+ P6: HDD LED P7: HDD LED+ P8: HDD LED- P9: HDD LED+ P10: HDD LED- P11: Thermal LED (Green) P12: Thermal LED (Red) P13: Reset Pin 1 P14: Reset Pin 2...
