Summary of Contents for Robe CitySkape Xtreme

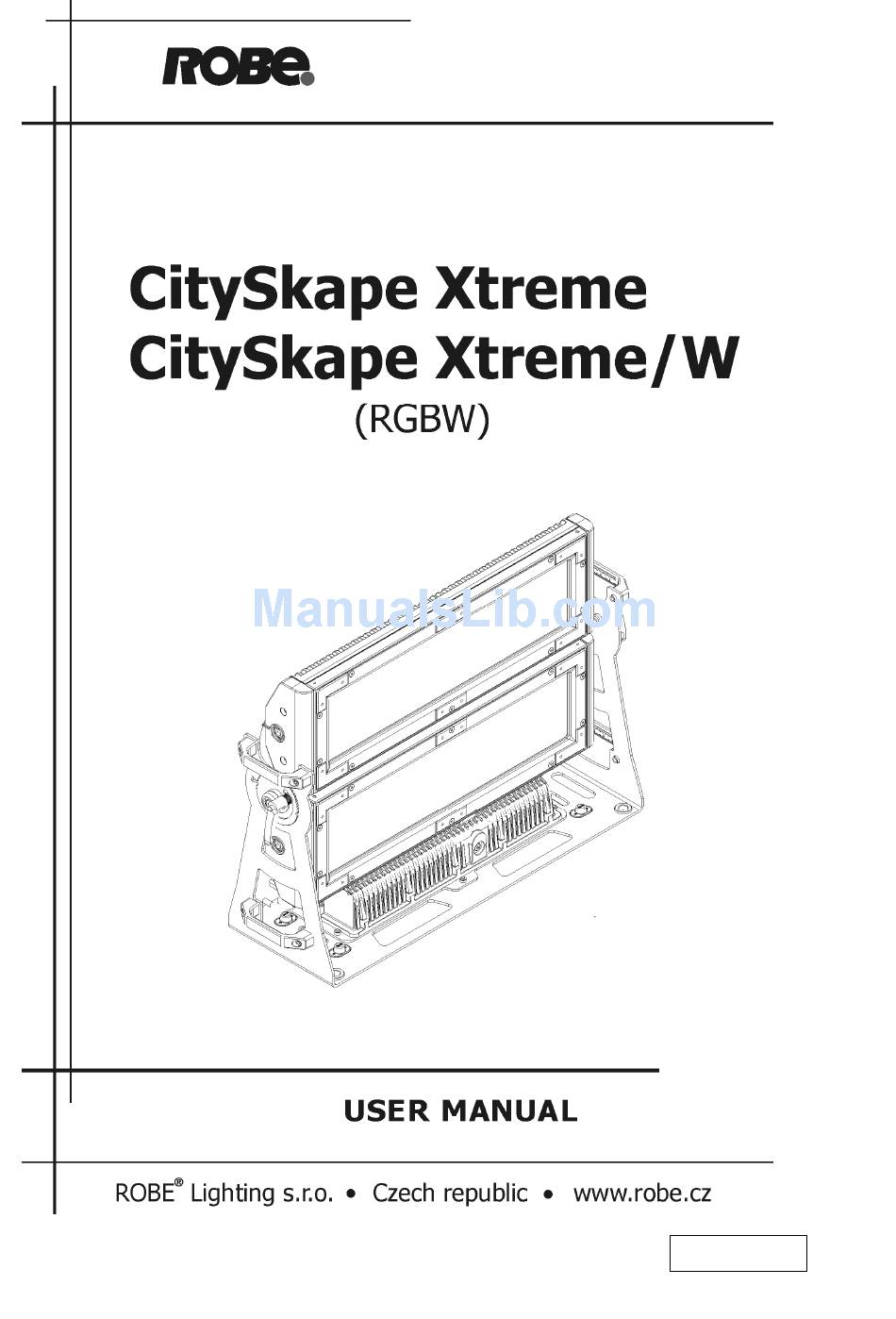

  • Page 1 Version 2.2...

  • Page 2: Table Of Contents

    3.5 DMX 512 connection ............................8 3.6 Master/slave connection ............................8 3.6 Stand-alone operation ............................8 4. CitySkape Xtreme (RGBCW) - DMX protocol ......................10 5. Control menu map ..............................12 6. Fixture menu ................................14 6.1 Fixture Address ..............................15 6.2 Fixture information .............................

  • Page 3: Safety Instructions

    CitySkape Xtreme (RGBW) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR CITYSKAPE XTREME ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

  • Page 4: Fixture Exterior View

    CitySkape Xtreme (RGBW) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.

  • Page 5: Installation

    CitySkape Xtreme (RGBW) 3. Installation 3.1 Rigging the fixture Ensure that the structure (truss, wall) to which you are attaching the fixture is secure. Mounting via two Omega holders Mounting points for permanent installation The mounting holes in the Omega holders have a diameter of 13 mm. Use the clamps with M12 bolts only.

  • Page 6: Connection To The Mains

    CitySkape Xtreme (RGBW) Both LED modules can be adjusted to the desired position either together by means of the the tilt-locks for both LED modules or individually. For individual adjusting of the LED module you do not need any tool as a friction locks keep adjusted position of each LED module.

  • Page 7: Installation Of The Barn-Doors, Top/Half Top Hats

    CitySkape Xtreme (RGBW) 3.3 Installation of the barn-doors, top/half top hats You can install barn-doors or top hats to better define illuminated surface. Before installing the equipment disconnect the fixture from the mains. 1. Fit the barn-doors module (1) or top/half top hat (2) on the LED module (4) and fasten it by means of the 12 screws (3) as shown on the picture below.

  • Page 8: Dmx 512 Connection

    CitySkape Xtreme (RGBW) 3.5 DMX 512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR- connectors in order to connect the controller with the fixture or one fixture with another.
  • Page 9 CitySkape Xtreme (RGBW) Note: Disconnect the fixtures from the DMX controller before master/slave operating, otherwise data collisions can occur and the fixtures will not work properly!

  • Page 10: Cityskape Xtreme (Rgbcw) - Dmx Protocol

    CitySkape Xtreme (RGBW) 4. CitySkape Xtreme (RGBCW) - DMX protocol Version 1.1 Mode/Channel Value Function Type of control Red LEDs - both LED modules 0 - 255 Red LEDs saturation control (0-100%) proportional Green LEDs - both LED modules 0 - 255...
  • Page 11 CitySkape Xtreme (RGBW) Mode/Channel Value Function Type of control Colour macros – both LED modules 216 - 254 Red down, Green=0, Blue=full, White=0 proportional Blue (Red=0, Green=0, Blue=full, White=0) step Shutter/ Strobe – both LED modules 0-31 Shutter closed step...

  • Page 12: Control Menu Map

    CitySkape Xtreme (RGBW) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. totL totL rSEt rSEt DM.In.
  • Page 13 CitySkape Xtreme (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 tEM.U. °C, °F bALA On, Off C.bAL. 0..200..255 GrEn 0..255 bLuE 0..237..255 Stor LOAd FuLL In.Po. rEd1 0-255 F.dim 0-255 Stor.

  • Page 14: Fixture Menu

    CitySkape Xtreme (RGBW) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 PrG.3 Edit PrG.1 St.01 rEd1 0-255 PrG.3 St.68 S.tim. 0-25.5 sec CoPY SPEC. rdML rdMH Adj. rEd1 F.dimr CaL.U.

  • Page 15: Fixture Address

    6. Press the ENTER button to confirm the choice. Note: After switching on, the CitySkape Xtreme will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX input, the display will start to flash “A001” with actually set address.

  • Page 16: Personality

    --- Balance Use this menu item to enable (On) or disable (Off) the white balance which is set in the “White colour balance“ menu below. I f this function is set off, the CitySkape Xtreme will use maximum values (255) of saturation for red, green and blue colour.

  • Page 17: Manual Mode

    CitySkape Xtreme (RGBW) 6.4 Manual mode Use this menu for control the fixture without connected DMX console. PrE.C. --- Preset effects control. Select this menu to call up preset positions of the channel effects. Man.C. --- Manual effect control. Select this menu to control all channels via buttons of the control board.

  • Page 18: Special Functions

    CitySkape Xtreme (RGBW) 1. Use the UP/DOWN buttons to find “ St.AL.“ menu. 2. Press the ENTER button. 3. Use the UP/DOWN buttons to select desired program. 4. Press the ENTER button. The selected program runs in a loop. Edit --- Editing a program. The fixture offers 3 freely editable programs (EPG.1-EPG.3) each up to 68 steps. Every program step includes a fade time-the time taken by the step´s channel status to reach the desired level and a...
  • Page 19 DMX input of the fixture if you using the flash cable RS232/DMX with the DMX input of the Robe Universal Interface if you using the USB cable. Disconnect the fixture from the other fixtures in a DMX chain. Turn both the computer and the fixture on.

  • Page 20: Rdm

    DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for CitySkape Xtreme is the following. Parameter ID Discovery command...

  • Page 21: Error And Information Messages

    The fixture is set as a master and DMX console is connected to the fixture. 9. Wireless DMX operation The wireless version of the CitySkape Xtreme is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band.
  • Page 22 CitySkape Xtreme (RGBW) • Adjustable strobe sequences • White colour balance adjusting •Lumen maintenance: Channels @ Power full intensity mode One LED Full mode 95,000 channel Eco mode 108,000 Two LED Full mode 90,000 channels Eco mode 102,000 Three LED...
  • Page 23 Weight • 64 kg Protection factor • IP 65 Included items • 1 x CitySkape Xtreme (CitySkape Xtreme/W) • 2 x omega holder (No. 99010420) • 2 x Frost glass (No. 14060206) • 1 x User manual Optional accessories • Barn-doors (No. 10980064) •...

  • Page 24: Cleaning And Maintenance

    CitySkape Xtreme (RGBW) 11. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent.
