Version 1.4
1

Advertisement

Table of Contents
loading

Related Manuals for Robe 575EAT

Summary of Contents for Robe 575EAT

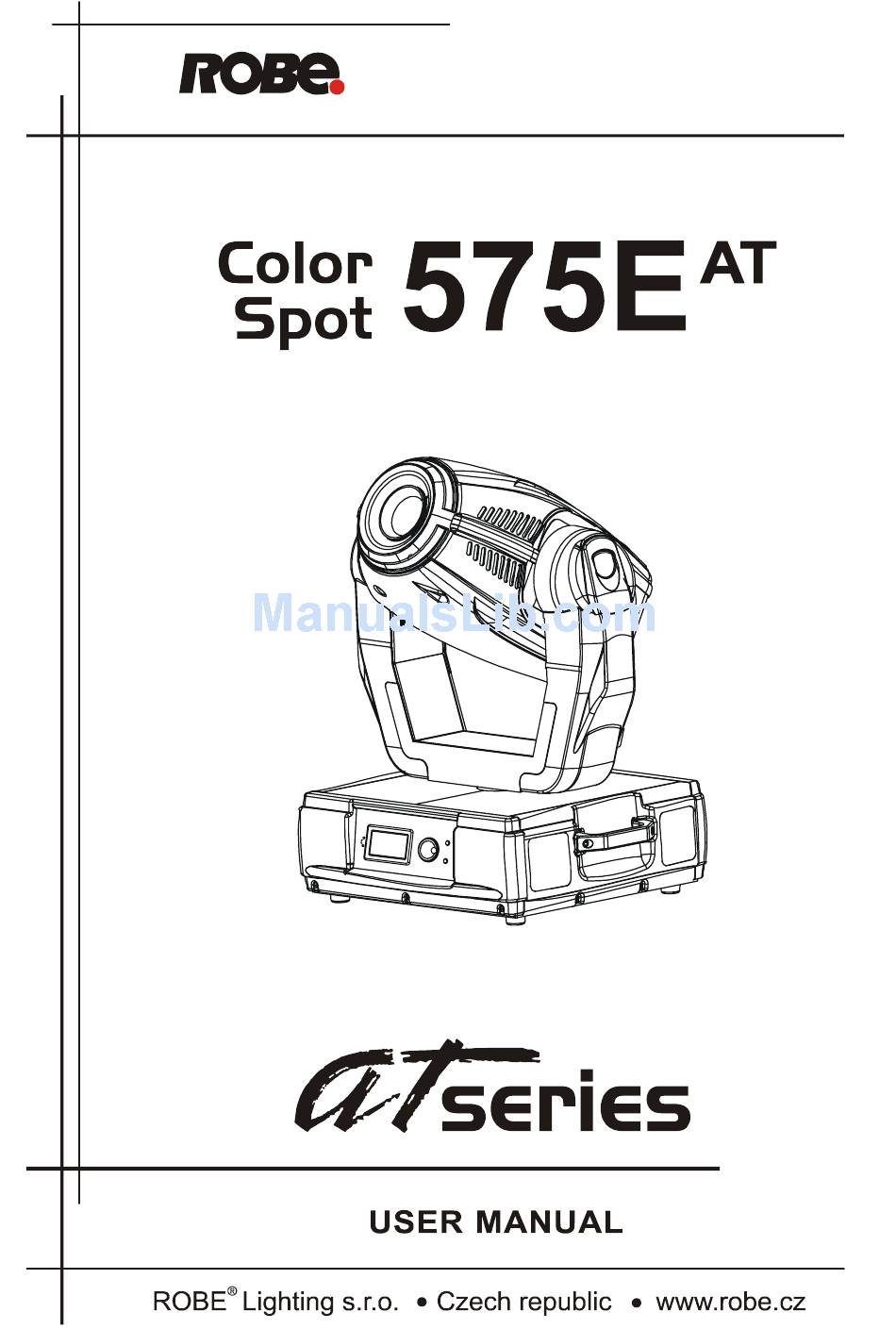

  • Page 1 Version 1.4...

  • Page 2: Table Of Contents

    ColorSpot 575E AT Table of contents 1. Safety instructions ......................3 2.Operating determinations ....................4 3. Description of the device ....................5 4. Installation ........................6 4.1Fitting the lamp ......................6 4.2 Lamp adjustment ....................... 7 4.3 Inserting/Exchanging colours and gobos ..............7 4.4 Replacing the 3-facet prism ..................

  • Page 3: Safety Instructions

    CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this device have to: - be qualilfied - follow the instructions of this manual CAUTION!

  • Page 4: Operating Determinations

    2.Operating determinations This device is a moving-head spot for creating decorative effects and was designed for indoor use only. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

  • Page 5: Description Of The Device

    3. Description of the device 1 - Moving head 2 - Yoke 3 - Front panel 4 - Handle Rear panel: 1 - 5-pin DMX output 2 - 5-pin DMX input 3 - 3-pin DMX output 4 - 3-pin DMX input 5 - Ethernet input 6 - Power switch 7 - Fuse holder-live...

  • Page 6: Installation

    4. Installation 4.1Fitting the lamp DANGER ! Install the lamps with the device switched off only. Unplug from mains before ! To insert the lamp MSR 575W/2 loosen the lamp cover at the rear of head (see the drawings ) by remowing the 3 fastening screws which are marked "X,Y,Z".Carefully pull out the cover with the lamp socket assembly.If changing the lamp, remove the old lamp from the socket.

  • Page 7: Lamp Adjustment

    4.2 Lamp adjustment 3 adjustment screws "A,B,C" The ColorSpot 575E AT lamp holder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp,open the shutter and the iris,set the dimmer intensity onto 100% and focus the light on a flat surface (wall).Center a hot-spot(the brightest part of the image) by using the 3 adjustment screws "A,B,C".Turn one screw after another a quarter-turn clokwise(counter-clokwise) to set the hot-spot in the center of the image.If you cannot detect the hot-spot,adjust the lamp until the light is evenly distributed.

  • Page 8: Replacing The 3-Facet Prism

    Stat.gobo wheel: Gently bend out the gobo module to release it from the 3 distace slots and eject it from the pressing snap. Put the new gobo module back under the pressing snap and push it to the distace slots. distance slots gobo module pressing snap...

  • Page 9: Connection To The Mains

    prism holder prism module pressing snap fixative holes 4.5 Connection to the mains Verify the power supply settings before applying power! If you wish to change the power supply settings,see the chapter below. Connect the fixture to the mains with the enclosed power plug.If you need to install other power plug on the power cable,follow the identification table below.

  • Page 10: Rigging The Fixture

    4.7 Rigging the fixture DANGER TO LIFE! Please consider the respective national norms during the installation! The installation must only be carried out by an authorized dealer! The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Page 11 For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture. You must only use safety-ropes with screw-on carabines. Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc. Insert the end in the carabine and tighten the fixation screw. Fixation via the omega holders 1.Bolt each clamp (1) to the omega holder (4) with M12 bolt and lock nut through the hole in the holder.

  • Page 12: Dmx-512 Connection/Connection Between Fixtures

    4.8 DMX-512 connection/connection between fixtures The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 13: Ethernet Connection

    4.9 Ethernet connection The fixtures on a data link are connected to the Ethernet with Art-Net communication protocol.The controlling software from PC (or lighting console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 14 Ethernet / DMX connection Options "Ethernet/DMX" has to be selected from "Set Ethernet Mode" menu on the first fixture (connected to the network) in the fixture chain,next fixtures have standard DMX addresses. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.

  • Page 15: Dmx Protocol-Version 1.0

    5.DMX Protocol-version 1.0 Mode/Channel Value Function Type of control 0-255 Pan movement by 530° proportional Pan fine 0-255 Fine control of pan movement proportional Tilt 0-255 Tilt movement by 280° proportional Tilt fine 0-255 Fine control of tilt movement proportional Pan/Tilt speed , Pan/Tilt time Max.speed (tracking mode) step...
  • Page 16 Mode/Channel Value Function Type of control Pan/Tilt macro speed Set pan/tilt speed (channel 5) to 0 No macro generation step 1-127 Macro generation from fast to slow -forwards proportional 128-129 No macro generation step 130-255 Macro generation from slow to fast- backwards proportional Colour wheel1 Continual Positioning...
  • Page 17 Mode/Channel Value Function Type of control Positioning 130-136 Deep red step 137-144 Deep blue step 145-151 Pink step 152-159 Cyan step 160-166 Magenta step 167-174 Yellow step 175-181 3200K correction filter step 182-189 UV filter step 190-215 Forwards rainbow effect from fast to slow proportional 216-217 No rotation...
  • Page 18 Mode/Channel Value Function Type of control 244-249 Random gobo selection by audio control step (Set microphone sensitivity in menu "Personality") 250-255 Auto random gobo selection from fast to slow proportional Fine static gobo positioning 0-255 Fine positioning proportional Rotating gobo wheel Index - set indexing on channel 14 (11/16/13) Open/hole step...
  • Page 19 Mode/Channel Value Function Type of control Gobo fine indexing 0-255 Fine indexing proportional Prism 0-19 Open position (hole) step 20-127 3-facet rotating prism step 128-255 Prism/gobo macros step 128-135 Macro 1 step 136-143 Macro 2 step 144-151 Macro 3 step 152-159 Macro 4 step...
  • Page 20 Mode/Channel Value Function Type of control Zoom Zoom without focus corection 0-39 Zoom 15° step 40-79 Zoom 18° step 80-127 Zoom 22° step Zoom with focus corection *** 128-169 Zoom 15° step 170-219 Zoom 18° step 220-255 Zoom 22° step Focus 0-255 Coarse focus...

  • Page 21: Controller Mode

    6. Controller mode The fixtures are individually addressed on a data link and connected to the controller.The fixtures respond to the DMX signal from the controller. 6.1 DMX addressing There are 512 available channels on DMX link.Every fixture on DMX link must have a DMX start address, which is defined as the first channel from which the fixture will respond to the controller.
  • Page 22 Focus,Zoom Motorized focus enables the beam to be focused anywhere on stage at different beam angles 15°,18°,22°,provided by the special zoom. Dimmer/Shutter/Strobe Smooth 0 - 100 % dimming is provided by the combined mechanical dimmer/shutter unit. This unit may also be used for strobe effect (1 - 10 flashes per second) Fans By the Control Board using the "Fan Modes"...

  • Page 23: Control Menu Map

    8.Control menu map Default settings=Bold print Default settings=Bold print Fixture Address DMX Address Ethernet Settings Set Ethernet Mode Disable Ethernet Ethernet Ethernet/DMX Set IP Address Default IP Address Custom IP Address Set ArtNet Universe (0 -255) Fixture information Power On Time Total Hours Resetable Hours Lamp On Time...
  • Page 24 Personality User Mode User A Settings User B Settings User C Settings DMX Presetting Mode 1 Ch.1 Pan Ch.24 Dimmer Fine Set Active Mode 2 Ch.1 Pan Ch.19 Dimmer Set Active Mode 3 Ch.1 Pan Ch.29 Dimmer Fine Set Active Mode 4 Ch.1 Pan Ch.21 Dimmer Fine...

  • Page 25: Special Functions

    Lamp On/Off (On,Off) Test sequences Mode 1 Pan (0-255) Tilt (0-255) Zoom (0-255) Focus (0-255) Run Test Program Mode 2 Run Test Program Manual Mode Presetted Effect Control Pan (Position 1,...,Position 6) Dimmer (Position 1,...,Position 5) Manual Effect Control Pan (0-255) Dimmer Fine (0-255) Stand- alone setting Music Trigger (On,Off)
  • Page 26 Effect Adjustment DMX Values Pan (0-255) Dimmer fine (0-255) Calibrate Values Pan (0-225) Dimmer (0-255) Save and Reset...

  • Page 27: Control Menu

    [RNS] encoder wheel-moves between menu items on the the same level, scrolls between values. [ESC] button-leaves menu without saving changes [ENTER] button-enters menu,confirms adjusted values and leaves menu After switching the fixture on,the display shows the initial screen: ROBE Show Lighting Press [ENTER],the display shows current address: DMX ADDRESS The main menu of the control panel is accessed by pressing [ENTER] button.To browse through the menu, rotate...

  • Page 28: Fixture Informations

    8.2 Fixture informations Use this menu to read an useful information about the fixture. Power On Time ---Select this submenu to read the number of operation hours. Total Hours --- The function shows the total number of the operation hours since the ColorSpot 575E AT has been fabricated.

  • Page 29: Personality

    Display Turned --- Select this function to turn the display by 180°. You can also turn the the display by pressing the [ESC] button while the ROBE logo is displayed. Blackout d.M.C. --- Select this function to enable the blackout during the head movement correction (if the...

  • Page 30: Lamp On/Off

    Fan Modes --- By using this function you can choose 2 types of the fan speed operating modes. Auto Cooling --- The fans automatically raise their speed in order to control inside temperature of the lighting, if the temperature inside increases about certain level (the low fan speed reduces the cooling of the lighting).

  • Page 31: Reset Functions

    Program 3 --- The option will start created program No. 3 Note:If the fixture operates in the controller mode ( DMX controller is connected) and any program from this menu is selected ,in this case the fixture will not respond to the DMX controller after switching on and will play selected program.

  • Page 32: Special Functions

    Pan/Tilt --- This function resets pan and tilt. Colour System --- This function resets colour wheels. Gobo System --- This function resets static and rotating gobo wheels. Dimmer/Strobe --- This function resets dimmer/strobe module. Focus/Zoom/Frost --- This function resets focus,zoom and frost. Iris/Prism --- This function resets iris and rot.prism.

  • Page 33: Rdm

    LAMP_ON_MODE DEVICE_HOURS LAMP_HOURS LAMP_STRIKES ...Another options for this command (only for Robe´s fixtures): value PARAMETER_DATA=0x84 - lamp OFF by DMX value on DMX channel value PARAMETER_DATA=0x88 - lamp OFF if DMX is not present ...Commands relative resetable values 12. Error and information messages Occured errors during fixture operation are signaled by warning icon on the display: Press [ESC] to see the current error messages.
  • Page 34 Caution: The message is disabled if the lamp light sensor (function "Lamp Sensor"in menu Personality) is switched Off. Lamp Error The ignition of the lamp is seven times unsuccessful (the "Active Lamp Timer" message appeared six times before), and the display shows "Lamp Error", meaning that the lamp could be damaged or even missed or there could be a failure on the ignitor or ballast.

  • Page 35: Technical Specifications

    Tilt Error 1 (Tilt Error 2) The messages will appear after the reset of the head if the head is not located in the default position. 13. Technical specifications Power supply: Voltage:.........100/120/208/230/240V AC, 50/60Hz ~ Live Fuse:.......T 6.3A@230V, T 10A@120V Neutral Fuse:......T 6.3A@230V,T 10A@120V Power consumption:....760 VA Lamp:...

  • Page 37: Rotating Gobo Wheel

    Colours: Colour wheel 1: - 9 dichroic filters + open Colour wheel 2: - 8 replaceable 'SLOT&LOCK' dichroic filters (including 3200 K and UV filter) + open Static gobo wheel: - 9 replaceable 'SLOT&LOCK' metal gobos plus an open position,outside diameter=26.9mm,image diameter=22.5mm, aluminium,thickness=0.5mm Rotating gobo wheel: - 6 dichroic glass gobos and one glass gobo rotating in both directions at different speeds...

  • Page 38: Optional Accessories

    -Max.Pan speed 157.27°/sec. -Max.Tilt speed 108.95°/sec. -Pan/tilt control accuracy: 0.00415°/0.00415° -16 bit movement resolution -Automatic Pan / Tilt position correction -Remotely controllable speed of pan/tilt movement for easy programming -Movement control:tracking and vector Rigging -Stands directly on the floor -Mounts horizontally or vertically with 2 Omega brackets -2 truss orientation -Safety chain/cord attachment point Temperatures...

  • Page 39: Maintenance And Cleaning

    14. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.
