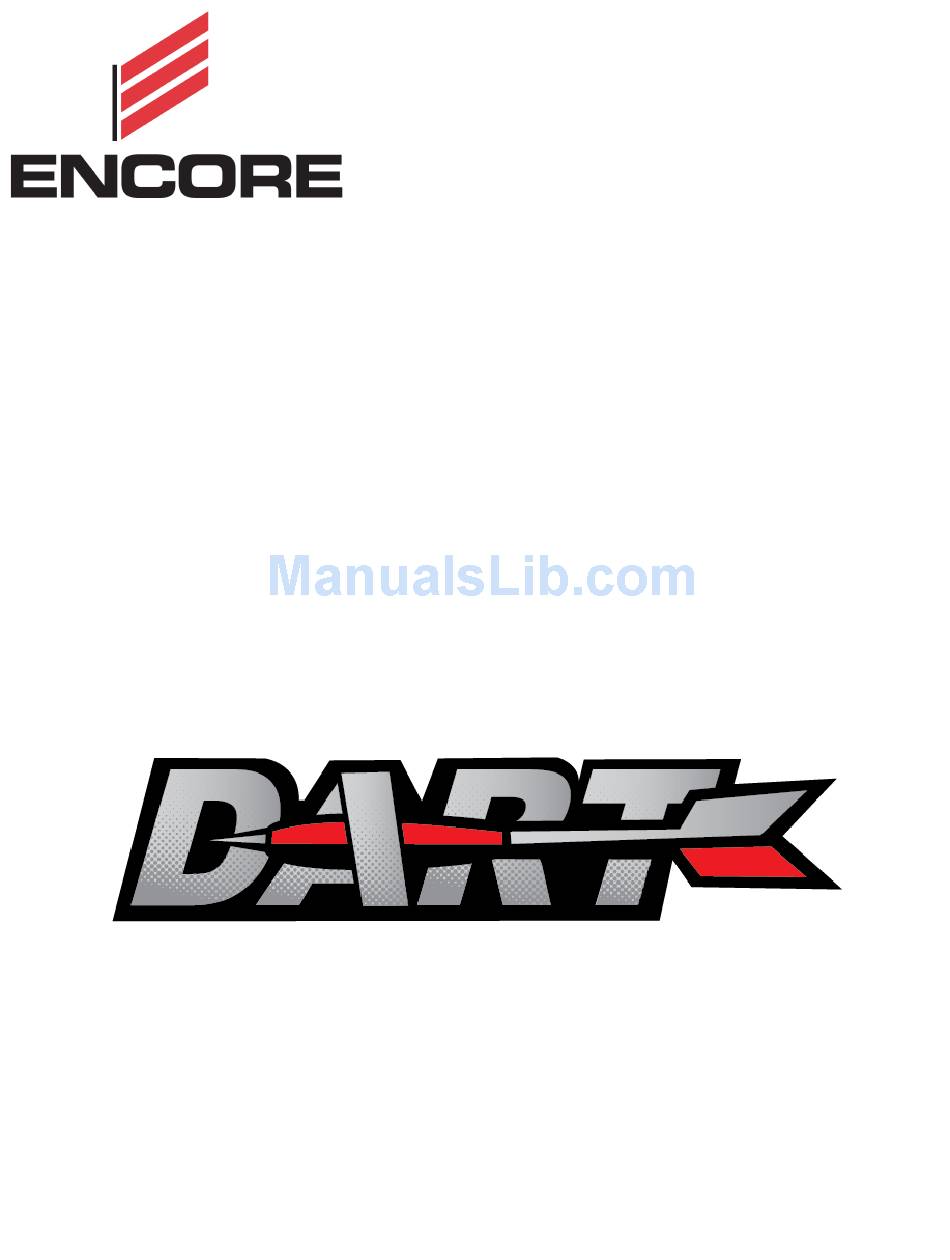

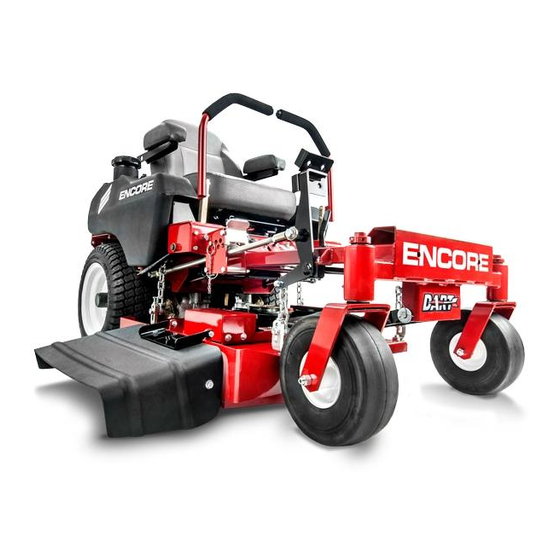

- Page 1 OPERATORS MANUAL ED34FS600V ED34FS600VCA...
-
Page 4: Table Of Contents
BELT ADJUSTMENT ......................... 12 BYPASS VALVE ..........................12 DECK HEIGHT ADJUSTMENT ......................12 DECK LEVELING ADJUSTMENT ..................... 13 TRACKING ADJUSTMENT ....................... 13 MOWER BLADES ..........................13 WIRING SCHEMATIC ........................14 CALIFORNIA EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT ......15 ENCORE WARRANTY ........................17... -
Page 5: Quick Reference Sheet
QUICK REFERENCE SHEET Engine Pulleys Kawasaki Electric FS600V-S00 603070 RH Spindle Pulley 423262 LH Spindle Pulley Blades 533114 Tensioner Pulley-Blade 14” Blade 423029 Drive Belt 14” Low Lift Blade 423014 823351 Pump Tensioner Pulley 14” Mulch Blade 423173 353101 Pump Drive Pulley 14”... -
Page 6: General Information
Encore Mfg a division of Worldlawn Power Equipment, Inc. reserves the right to redesign and change the machine as deemed necessary, without notification. - Page 7 Be especially cautious when changing direction on slopes. 17. The Encore Rider is NOT designed for towing. 18. Only factory approved Grass Collection Systems are permitted. 19. Shut off fuel while storing or transporting. Do...
-
Page 8: Before Operating
BEFORE OPERATING STARTING ENGINE Fill engine crankcase as per engine manufacturer’s The throttle c control, ignition switch and choke control are located between the motion control manual. ENGINE DOES NOT HAVE OIL IN levers on the front panel under the front of the seat. CRANKCASE FROM THE FACTORY. -
Page 9: Safety Interlock System
SAFETY INTERLOCK SYSTEM CORRECT TRANSMISSION Your Encore Rider is equipped with a Safety OPERATION Interlock System that is designed to help The Encore rider is equipped with a Hydro prevent possible serious injuries. Transaxle unit for each wheel and are controlled with “Motion Control Levers”, one for each wheel. -
Page 10: Service Locator Chart
SERVICE LOCATOR CHART... -
Page 11: Maintenance Info
6. Always replace worn or broken parts with genuine Encore repair parts purchased from an authorized Encore dealer. Using anything other than Encore repair parts may void all Encore factory warranties. OIL AND FILTER Please refer to the engine manual for engine lubrication recommendations. -
Page 12: Belt Adjustment
BELT ADJUSTMENT DECK HEIGHT ADJUSTMENT Remove key from the ignition switch. The blade drive belt may be accessed by removing belt shields. Spring tension should be maintained by having Approximately 1/8” stretch between coils. Turning the nut on the eyebolt clockwise will decrease tension. When installing a blade drive belt please refer to figure 3 for routing the blade drive belt. -
Page 13: Deck Leveling Adjustment
MOWER BLADES DECK LEVELING ADJUSTMENT Check sharpness of mower blades after every 10 hours or operation. To sharpen blades proceed as Before checking the deck level make sure that tire follows: pressures are at the proper level. Begin by setting the deck to a fixed position and pointing the blades to the front edge of the deck. -
Page 14: Wiring Schematic
WIRING SCHEMATIC Encore part #353132 Wire Harness for ED34FS600V... -
Page 15: California Evaporative Emission Control Warranty Statement
CALIFORNIA EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board and Worldlawn Power Equipment is pleased to explain the evaporative emission control system's warranty on your 2014 model year lawn mower. In California, new equipment that use small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. - Page 16 (3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by Worldlawn Power Equipment.
-
Page 17: Encore Warranty
(“Mower”), purchased from an Authorized Encore Dealer, will be free from defects in material and workmanship for a period of two years residential from the original date of purchase (see details below). Encore also warrants the Mower’s deck shell will be free from defects in material and workmanship for a period of ten years commercial/residential from the original date of purchase (see details below). - Page 20 ALL RIGHT RESERVED ED34FS600V PARTS MANUAL CONTENTS SUBJECT TO CHANGE DART 20131210...
