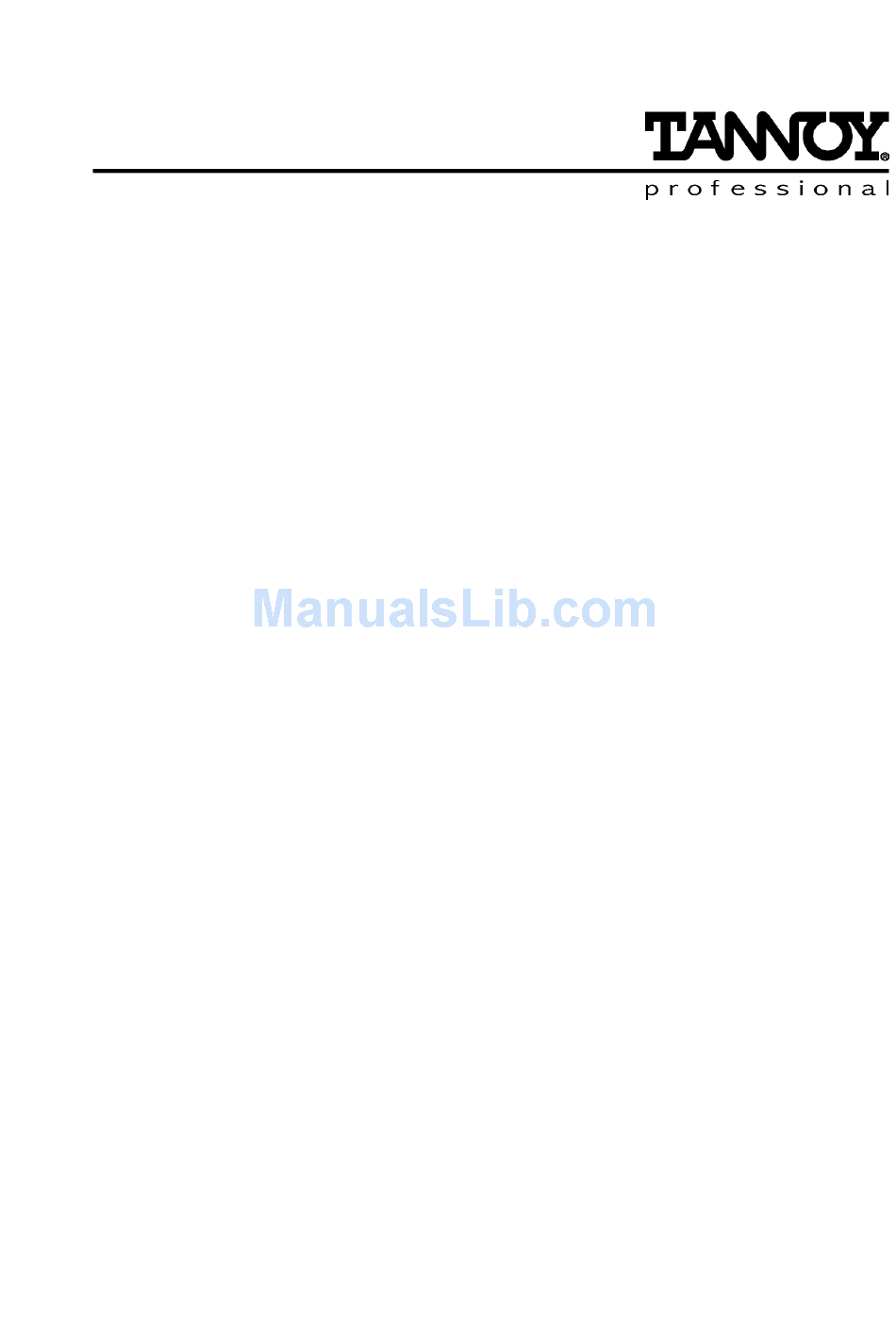

- Page 1 B950 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Unpacking 3. Connectors/Cabling 4. Polarity Checking 5. Amplification & Power Handling 6. Crossovers 7. Equalisation 8. Positioning 9. Dimensions 10. Performance Data 11. Technical Specifications 12. Recommended Service Parts & Accessories 13. Warranty 14. Declaration of Conformity... -
Page 3: Introduction
Contacts will accept 6 sq. mm wire with an outside diameter of up to 15mm and a current rating of 30 Amps. The pins of the 2 Speakon sockets identified input/output on the rear of the input panel are paralleled within the enclosure. Tannoy have adopted the following wiring standard for all Superdual products :-... -
Page 4: Polarity Checking
For a worldwide list of distributors, please contact Neutrik directly: - +41 7529666 EUTRIK Cable choice consists mainly of selecting the correct cross sectional area in relation to the cable length and the load impedance. A small cross sectional area would increase the cables series resistance, inducing power loss and response variations (damping factor). -
Page 5: Amplification & Power Handling
6. Crossovers The complete range of Tannoy Professional contractor products can be used in conjunction with the B950 utilising TX1, TX2 & TX3 crossover/controllers (see product literature for correct TX controller) For active operation the TDX1 digital loudspeaker management system is also available (late ’98). -
Page 6: Positioning
8. Positioning When a bass loudspeaker is used in an environment with boundary surfaces, its placement affects its frequency response. When such effects are properly understood, they can be used to great effect in producing the desired sound quality without the aid of additional amplification. -
Page 7: Dimensions
9. Dimensions 1110.0 576.0 2 HANDLES BOTH ENDS 650.0 B950 160.0 145.0 125.0 450.0... -
Page 8: Performance Data
10. Performance Data... -
Page 9: Technical Specifications
Tannoy operate a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications which Tannoy reserve the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications. -
Page 10: Warranty
13. Warranty No maintenance of the B950 loudspeaker is necessary. All Tannoy professional loudspeaker products are covered by a 5 year warranty from the date of manufacture subject to the absence of misuse, overload or accidental damage. Claims will not be considered is the serial number has been altered or removed. -
Page 11: Declaration Of Conformity
Declaration of Conformity The following apparatus is/are manufactured in the United Kingdom by Tannoy Ltd of Rosehall Industrial estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives relevant to Domestic Electrical Equipment. The apparatus is... - Page 12 TGI/Tannoy, 300 Gage Avenue, Kitchener, Ontario, CANADA, N2M 2C8 Telephone: (519) 745 1158 Fax: (519) 745 2364 Tannoy Nederland BV, Anthonetta Kuijlstraat 19, 3066 GS, Rotterdam THE NETHERLANDS Telephone: (010) 2860554 Fax: (010) 2860431 Tannoy is a member of the Group of Companies Issue 2 Part No.
