210
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rider 210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bryton Rider 210

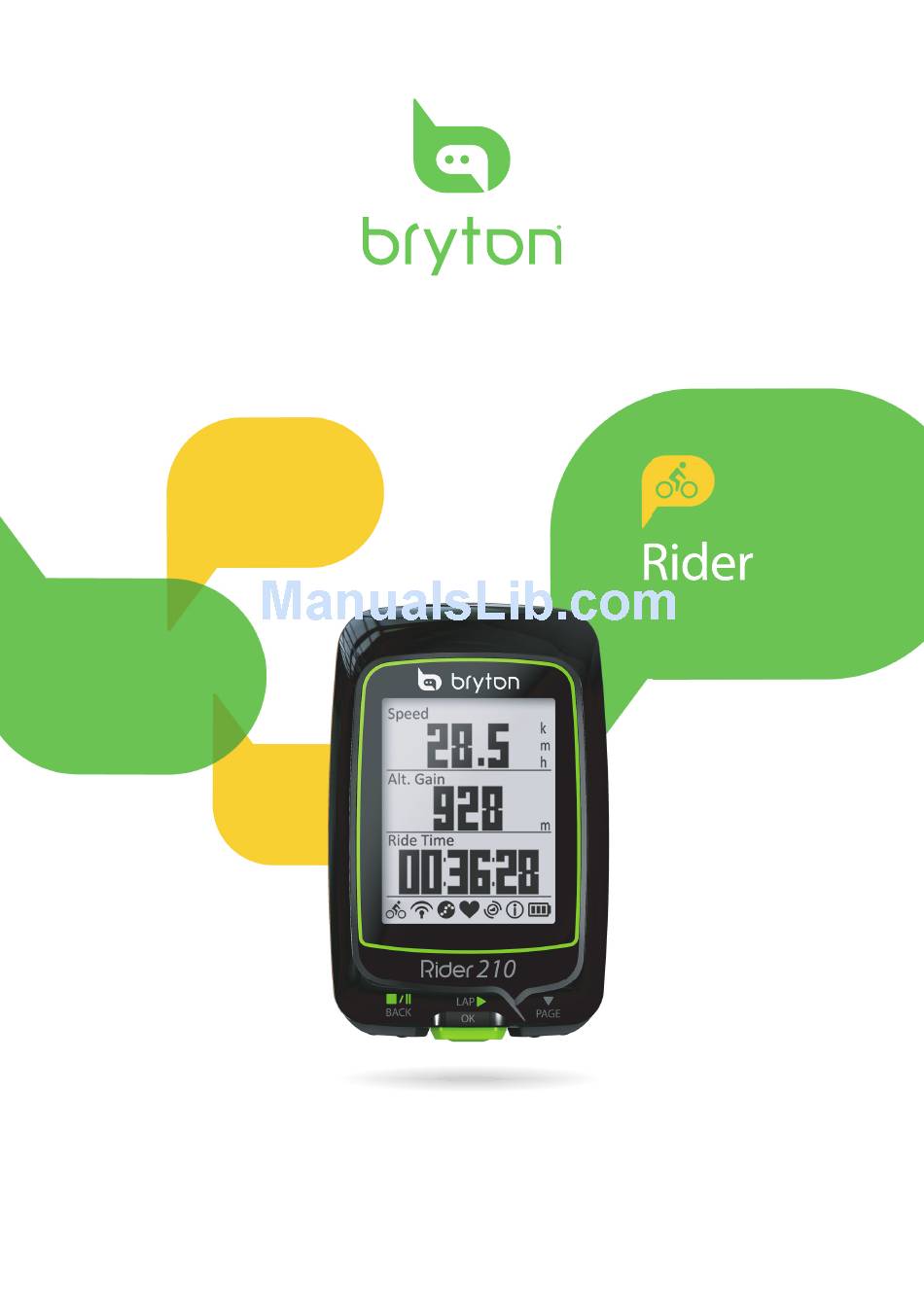

  • Page 1 User's Manual...
  • Page 3: Table Of Contents

    Accessories ........5 Altitude ........15 Status Icons ......... 5 Display ........16 Step 1: Charge your Rider 210 ... 6 Sensors ........18 Step 2: Turn On Rider 210 ... 6 Bluetooth ........19 Step 3: Initial Setup ..... 6 Personalize User Profile ....
  • Page 4 Always consult your physician before you begin or modify any training program. Please read the details in Warranty and Safety Information guide in the package. Product Registration Help us better support you by completing your device registration using Bryton Bridge. Go to http://support.brytonsport.com for more information. Bryton Software Go to http://brytonsport.com to download free software to upload your personal profile,...
  • Page 5: Getting Started

    Getting Started This section will guide you on the basic preparations before you start using your Rider 210. Rider 210 is equipped with barometer which shows the real time altitude. NOTE: To adjust the altitude settings on Rider 210, refer to page 15.
  • Page 6: Accessories

    Accessories The Rider 210 comes with the following accessories: • 4-pin USB cable • Bike mount Optional items: • Heart rate belt • Speed sensor • Cadence sensor • Speed/Cadence Dual sensor Status Icons Icon Description Icon Description Heart Rate Sensor Active...
  • Page 7: Step 1: Charge Your Rider 210

    Press and hold to turn on the device. Step 3: Initial Setup When turning Rider 210 on for the first time, the setup wizard appears on screen. Follow the instructions to complete setup. 1. Select the display language. 2. Select the daylight saving time.
  • Page 8: Step 4: Acquire Satellite Signals

    Step 4: Acquire Satellite Signals Once the Rider 210 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals. Please make sure you acquire the satellite signal for the first time use.
  • Page 9: Share Your Records

    Share Your Records When using the device for the first time, please download Bryton Mobile APP and pair your mobile phone with Rider 210. NOTE: You can also scan QR code here or go to corp.brytonsport.com/app/sports to download Bryton APP.
  • Page 10: Notification

    Pair your Bluetooth enabled mobile phone with Rider 210. For the pairing instructions, refer to “Share Your Records” on page 8 for more information. NOTE: You must install Bryton Mobile APP and pair you mobile with Rider 210 in order to use the notification function.
  • Page 11: Training

    Bicycling is one of the best types of exercise for your body. It helps you to burn your calories, lose weight, and increase your overall fitness. With the Rider 210 Training feature, you can set simple workouts and use the Rider 210 to track your training or workout progress.
  • Page 12: My Workout

    Using the On-screen Keyboard Name Name OK/EXIT OK/EXIT 1. Press to select the input character. DEL to erase the data. • Select 2. Press to confirm the selection. to select END and press 3. When finished, press to confirm. NOTE: If user does not enter the workout name, the system will automatically label the file name according to the current date and time.
  • Page 13: Stop Training

    NOTE: If the selected workout includes several interval settings, a workout details appear on the screen. Select Start and press to proceed with the workout. Stop Training You can stop the current training after you have reached your goal or when you decide to end the current training.
  • Page 14: History Flow

    To delete your history: Delete 1. In the main screen, press to select History > View and press 2. Press to select Delete and press to enter the history list. Do you want to delete? 3. Press to select a training history from the list and press to delete the selected history.
  • Page 15: Settings

    Settings With the Settings feature, you can customize altitude, display settings, sensor settings, system settings, bike and user profiles, GPS setup, and view device information. Settings My Lap Altitude Display Sensors to select Settings. 1. In the main screen, press 2.
  • Page 16: Altitude

    Lap by Distance 1. In the Settings menu, press to select Distance My Lap > Distance and press to select Detail info and press 2. Press 10.0 to change the setting. 3. Press to select your desired distance and press to confirm.
  • Page 17: Display

    Other Location Altitude Location 1 1. In the Settings menu, press to select Altitude > Location 1, Location 2, Altitude Location 3, or Location 4 and press 2. To set the altitude, press to select Altitude and press to confirm. 3.
  • Page 18 3. Press to select the item field that you want to customize, and press to confirm the selection. 4. Press to select the desired setting and press to confirm. 5. Press to exit this menu. NOTE: The number of data fields shown on the screen depends on the “Data fields” selection.
  • Page 19: Sensors

    Auto Scroll 1. In the Settings menu, press to select Auto scroll Display > Auto scroll and press Auto scroll 2. Press to select the setting that you want to change and press to enter its Interval submenu. • Auto scroll: enable/disable the auto 5 sec switch.
  • Page 20: Bluetooth

    5 m. When the cadence sensor is paired, the cadence sensor icon appears on the main screen. Bluetooth Before pairing Rider 210 with your bluetooth enabled mobile phone, make sure the bluetooth function of your mobile phone and Rider 210 is turned on. Enable Bluetooth Bluetooth 1.
  • Page 21: Personalize User Profile

    Personalize User Profile You can change your personal information. User 1. In the Settings menu, press to select User and press Gender 2. Press to select the setting that you Male want to change and press to enter its submenu. •...
  • Page 22 Personalize Bike Profile You can customize and view your bicycle(s) profile. 1. In the Settings menu, press to select Bike 1 Bike > Bike 1 or Bike 2 and press Bike Type 2. Press to select the setting that you Folding Bike want to change and press to enter its...
  • Page 23: Change System Settings

    Change System Settings You can customize the device system settings such as backlight off, self lap, key tone, beep, time/unit data format, on-screen display language, and data reset. Backlight Off Back light 1. In the Settings menu, press to select System >...
  • Page 24 Alert Alert 1. In the Settings menu, press to select System > Alert and press 2. Press to select the desired setting and press to confirm. 3. Press to exit this menu. Time/Unit Dlight Save Date Time +0:00 mmddyyyy 12hr +1:00 yyyymmdd 24hr...
  • Page 25: View Gps Status

    Language Language 1. In the Settings menu, press to select System > Language and press English 2. Press to select the desired setting Deutsch and press to confirm. 3. Press to exit this menu. Français View GPS Status You can view the GPS signal information that your device is currently receiving. Status 1.
  • Page 26: View Software Version

    View Software Version You can view your device current software version. to select About. 1. In the Settings menu, press 2. Press to confirm. The current software version is displayed on the screen. 3. Press to exit this menu. Settings 25...
  • Page 27: Appendix

    Appendix Specifications Rider 210 Item Description Display 1.6 FSTN positive transflective LCD Physical Size 39.6 x 58.9 x 17 mm Weight Operating -10°C ~ 50°C Temperature Battery Charging 0°C ~ 40°C Temperature Battery Li polymer rechargeable battery Battery Life 17 hours with open sky...
  • Page 28: Battery Information

    Heart Rate Monitor Item Description Physical size 67~100 x 26 x 15 mm Weight 14 g (sensor) / 35g (strap) Water Resistance 20 m Transmission range Battery life 1 hour per day for 24 months Operating temperature C ~ 40 2.4GHz / Dynastream ANT+ Sport wireless Radio frequency/protocol communications protocol...
  • Page 29: Install Rider 210

    Install Rider 210 Mount Rider 210 to the Bike Appendix...
  • Page 30: Install The Speed/Cadence/Dual Sensor (Optional)

    Install the Speed/Cadence/Dual Sensor (Optional) SPEED CADENCE SPEED Speed Status: active ID XXXXXXXXX Rescan Turn Off Speed Status: active ID XXXXXXXXX Rescan Turn Off CADENCE Cadence Status: active ID XXXXXXXXX Rescan Turn Off Cadence Status: active ID XXXXXXXXX Rescan Turn Off Speed/CAD Status: active ID XXXXXXXXX...
  • Page 31: Install Heart Rate Belt (Optional)

    Adjust the sensor position to the middle part of the body (wear it slightly below the chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic belt firmly so that it will not turn loose during the exercise.
  • Page 32: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 24 x 1.75 1890 12 x 1.75 24 x 2.00 1925 14 x 1.5 1020 24 x 2.125 1965 14 x 1.75 1055...
  • Page 33: Basic Care For Your Rider 210

    Basic Care For Your Rider 210 Taking good care of your device will reduce the risk of damage to your device. • Do not drop your device or subject it to severe shock. • Do not expose your device to extreme temperatures and excessive moisture.
  • Page 34 Screen Terminologies Screen Display Terminology LapAvSpd lap average speed LapMaSpd lap maximum speed L'stLpAvSp last lap average speed LapDist lap distance L'stLpDist last lap distance L'stLapT last lap time LapAvHR lap average heart rate LapMaHR lap maximum heart rate L'LpAvHR last lap average heart rate L'A'MHR% lap average MHR percentage...
