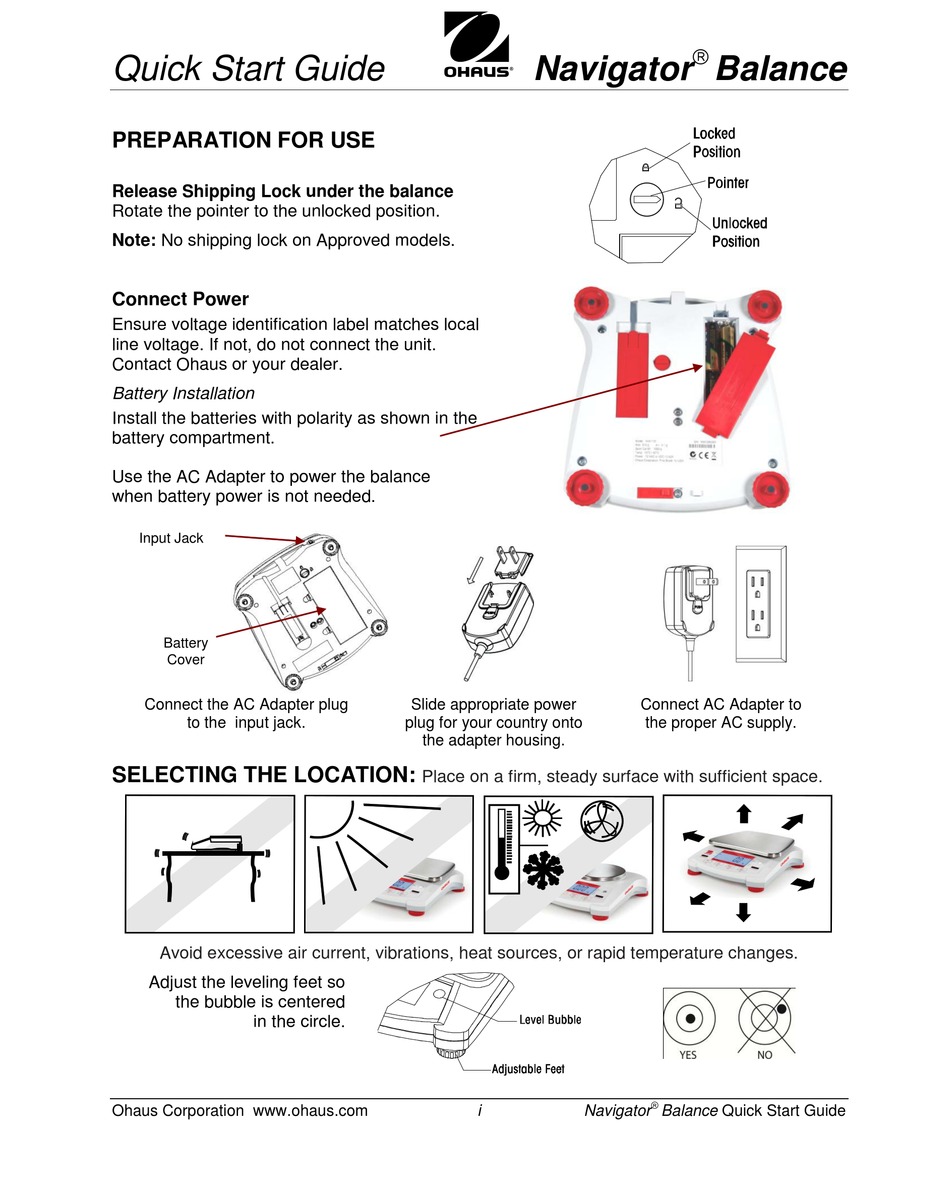

Quick Start Guide
Navigator
Balance
PREPARATION FOR USE
Release Shipping Lock under the balance
Rotate the pointer to the unlocked position.
Note: No shipping lock on Approved models.
Connect Power
Ensure voltage identification label matches local
line voltage. If not, do not connect the unit.
Contact Ohaus or your dealer.
Battery Installation
Install the batteries with polarity as shown in the
battery compartment.
Use the AC Adapter to power the balance
when battery power is not needed.
Input Jack
Battery
Cover
Connect the AC Adapter plug
Slide appropriate power
Connect AC Adapter to
to the input jack.
plug for your country onto
the proper AC supply.
the adapter housing.

SELECTING THE LOCATION:

Place on a firm, steady surface with sufficient space.
Avoid excessive air current, vibrations, heat sources, or rapid temperature changes.
Adjust the leveling feet so
the bubble is centered
in the circle.
Ohaus Corporation www.ohaus.com
i
Navigator
Balance Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Navigator Balance and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OHAUS Navigator Balance

Summary of Contents for OHAUS Navigator Balance

  • Page 1: Selecting The Location

    Note: No shipping lock on Approved models. Connect Power Ensure voltage identification label matches local line voltage. If not, do not connect the unit. Contact Ohaus or your dealer. Battery Installation Install the batteries with polarity as shown in the battery compartment.

  • Page 2: Safety Precautions

    IR Sensors can be activated by a hand or other object placed about 12mm (½ inch) above the sensor. Activation distance varies with the reflective nature of the object. If unwanted activations occur, sensors can be turned off.  Navigator Balance Quick Start Guide Ohaus Corporation www.ohaus.com...
  • Page 3 Yes. Repeat for all numbers, and same procedure for [SEt. Hi]. When limits are set or accepted, place sample on Pan. Accept indicator shows weight is within acceptable range. To clear stored reference values press and hold Mode until [CHECK] appears. When [CLr.ref ] appears, press Yes.  Ohaus Corporation www.ohaus.com Navigator Balance Quick Start Guide...

  • Page 4: Menu Navigation

    Units must be “turned on” to be active. For oz and lb:oz, choose dec or frac readouts. Note: Available units and modes vary by model and local regulations. *83033981* P/N 83033981  Navigator Balance Quick Start Guide Ohaus Corporation www.ohaus.com...
