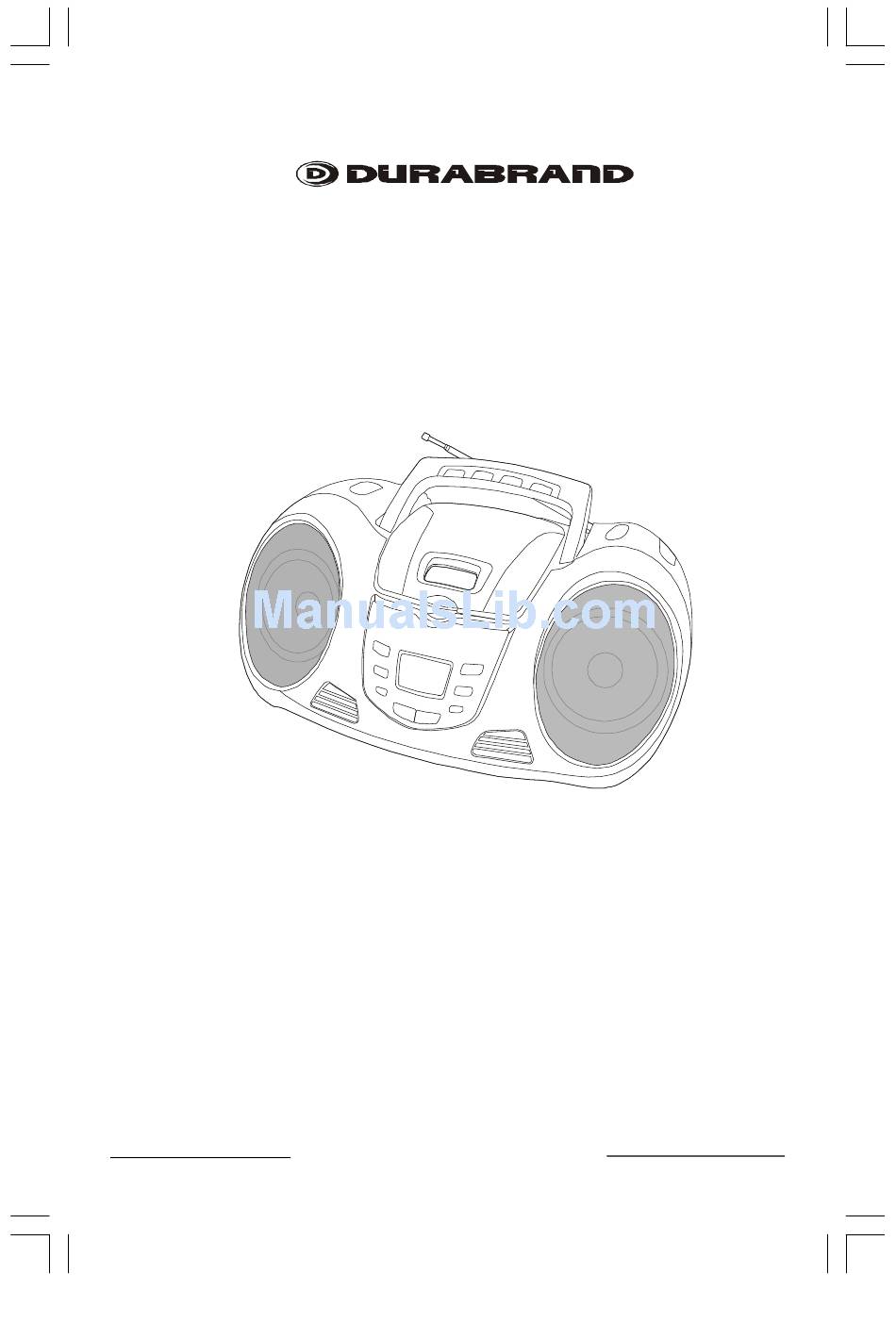

ANALOG TUNER WITH DIGITAL READOUT AM/FM STEREO RECEIVER • REPEAT ONE AND REPEAT ALL PLAY • 2 WAY POWER - AC/DC • USES 8 SIZE “C” BATTERIES PLEASE READ CAREFULLY BEFORE USE IB-CD2086-WM-E-012005(WMA).pmd MODEL CD-2086 (not included) IB-CD2086(AD)-WM-E-031705 3/22/2005, 5:52 PM...
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.
IMPORTANT SAFETY INSTRUCTIONS 15. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 16. Damage Requiring Service -Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged.
Page 4
BATTERY SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR SET, READ AND FOLLOW THESE INSTRUCTIONS. 1. Use only the type and size of batteries mentioned in the operating instructions booklet (batteries are not included with this set, please buy the proper batteries). 2.
CHOOSING THE POWER SOURCES You can use the AC power or batteries as a power source. BATTERY DOOR (on the bottom of the set) TIP: • If the plug of the AC power cord does not match your ou tlet , do not for c e i t. Reverse it and try again.
PLAYING A CD FUNCTION switch (at the left side of the set) Connect the supplied AC power cord or batteries (refer to page 4). FUNCTION RADIO CD/MP3 TIP: 1. “ NO DISC ” will show in the display if there is no CD disc in the CD compartment or if the CD disc is upside down.
Page 7
USE THESE BUTTONS FOR ADDITIONAL OPERATIONS PHONES jack FUN C TIO N Elapsed playing time of the current track +10 button • When the CD play is paused, the word “PAUSE” will show in Adjust the volume di s pla y, t he Stop playback el aps e d...
CD REPEAT, INTRO AND RANDOM PLAY You may have repeat, intro and random play functions by pressing the MODE button. Press the MODE button several times, the display will show the followings in turn: REPT 1 REPT ALL Single Track Repeat Plays one song over and over till you press STOP.
CD PROGRAMMED PLAY You can make a program up to 20 tracks in the specified order you want them to be played. Program Number Track Number (song number) 1. Slide the FUNCTION switch to the CD/MP3 position. Make sure the set is in the STOP mode. 2.
MP3 PLAYBACK FUNCTION switch (at the left side of the set) Connect the supplied AC power cord or batteries (refer to page 4). Slide the FUNCTION switch to FUNCTION the CD/MP3 position (power on), RADIO CD/MP3 the LCD display will be on, and the word “READING ”...
Page 11
OTHER MP3 OPERATIONS Operation To pause play To release pause and resume play To stop To turn off the power To skip to the next track(s) To skip to the next 10th track(s) quickly To skip to the previous trac k(s) To go ahead at high speed (search) To go back at high speed...
MP3 REPEAT, INTRO AND RANDOM PLAY You may have repeat, intro or random play functions by pressing the MODE button. Press the MODE button several times, the display will show the followings in turn: REPT 1 REPT DIR Single Track Repeat Plays one song over and over till you press the STOP button.
Page 13
MP3 PROGRAMMED PLAY The tracks (songs) on the disc can be programmed (arranged in advance) to play in any order you prefer (up to 20 tracks can be programmed). Program Number Album Number (title number) Track Number (song number) During programming, the symbol “PROG” shows in the display. To program play in your preferred order, follow steps below: 1.
Page 14
MP3 files are music files which have been compressed into the MP3 format. WMA is the abbreviation for Windows Media Audio. WMA is another audio format, the compression and the audio quality are better than MP3. The CD-2086 plays MP3 & WMA files which have been recorded onto a CD disc.
Page 15
ABOUT “MP3” WHAT IS MP3? MP3 (MPEG 1 Audio Lay er-3) is a s tandard tec hnology and format for compressing a sound sequence or song. The file is compressed to about 1/10 of its original size. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed.
LISTENING TO THE RADIO FUNCTION switch LCD display Connect the supplied AC power cord or batteries (refer to page 4). FUNCTION RADIO CD/MP3 BAND FM STEREO TUNING NO TE: This set uses an analog (rotary) tuner with a digital display. The digital display is very useful when locating your favorite station and also as- sists you to pinpoint the exact tuning frequency.
Page 17
• If the FM broadcast is noisy, slide the BAND switch from FM Stereo to FM. • Next time you want to listen to the radio, just s li de t he F UNCT IO N s wit c h to the RA DIO po s iti on.
Page 18
PRECAUTIONS On Safety • Do not open the cabinet. As the laser beam used in the DISC player section may be harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. • Should any solid object or liquid fall into the player, unplug the player, and have it checked by qualified personnel before operating it any further.
MAINTENANCE Cleaning the lens A dirty lens will cause sound skipping. If the lens is very dirty, the player may not work. We suggest using a special cleaning disk (not included) available in most music and Hi-Fi stores. However, if you do not have one, you may use a cotton swab very slightly dampened with alcohol to clean the lens.
TROUBLE SHOOTING Problem The power is not on. There is no sound. “ NO DISC ” or “ BAD DISC ” appears in the display even when a disc is in place. Discs do not play. The sound drops out. CD/MP3 does not play while the radio may continue to play.
During the initial 90 day period after original purchase, we will service or exchange, at no charge, the set that is returned to LENOXX ELECTRONICS CORP. After the initial 90 day period expires, and for a period of 12 months from original purchase, we will repair the unit covering any part(s) that need to be replaced at no charge, but will charge for the cost of labor, return postage paid by Lenoxx.
