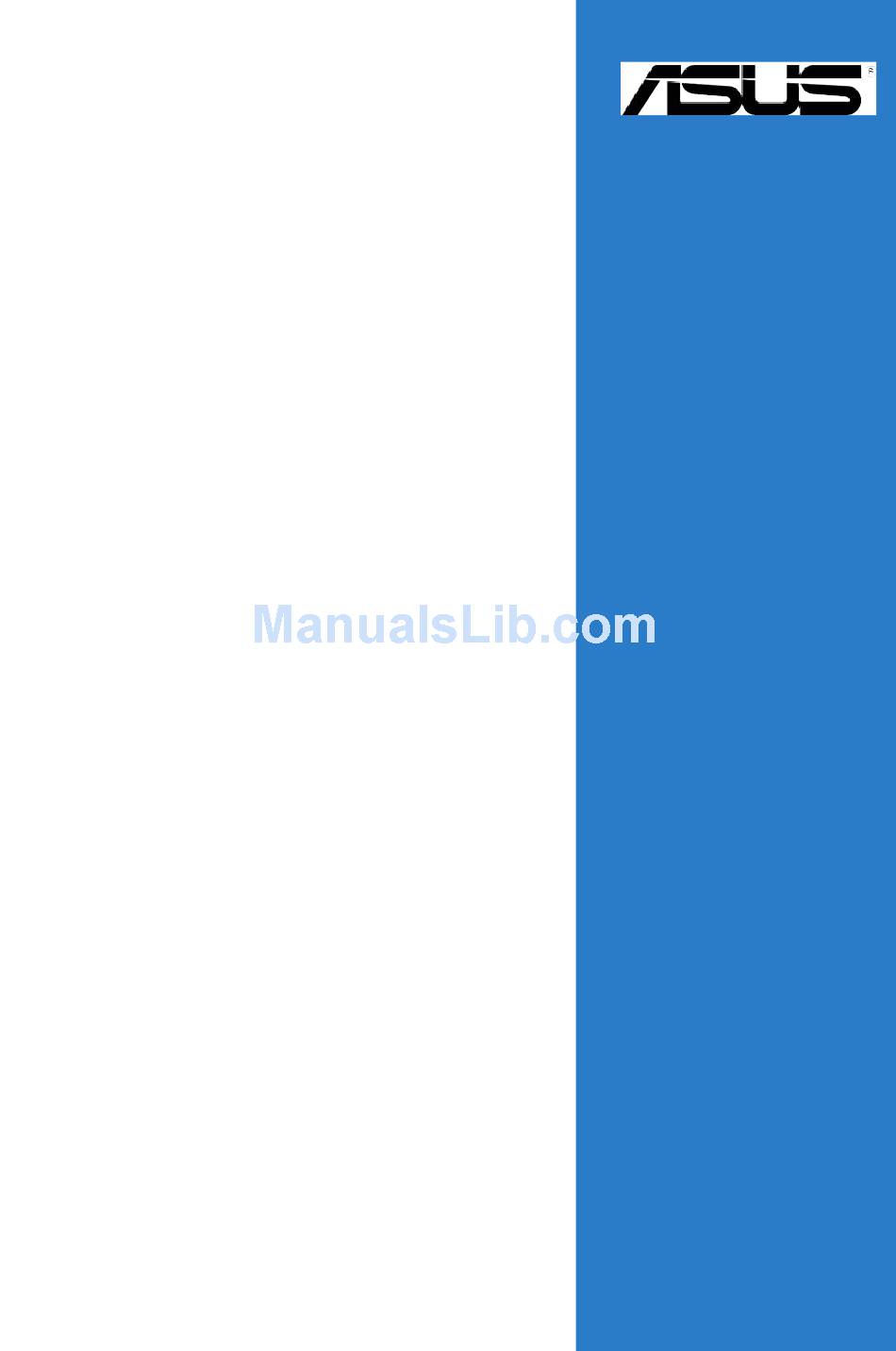

  • Page 1 YNRC-BR...

  • Page 2: Table Of Contents

    E2453 First Edition V1 February 2006 Contents P5RC-BR specifications summary ............iii Motherboard layout ................. 1 Central Processing Unit (CPU) ............2 2.1 Enhanced Intel SpeedStep Technology (EIST) ....2 ® 2.2 Installing the CPU ..............3 System memory ................5 3.1 Memory configurations ............

  • Page 3: P5Rc-Br Specifications Summary

    YNRC-BR specifications summary mPGA479 (Micro-FCPGA) socket for the Intel ® Pentium M, Yonah processor ® ® Chipset Nortbridge: ATI RC410ME (GMCH) Southbridge: ATI IXP460 Front Side Bus 533/667 MHz Memory 2 x 240-pin DDR2 DIMM sockets for up to 2 GB...

  • Page 5: Motherboard Layout

    RC410L 1394 B:USB2 Top: GMCH Subwoofer Speaker Out Center Rear Speaker Out USB2.0 Below Top: BATTERY1 T: USB3 Side Speaker Out RJ-45 B: USB4 SATA1 F_AUDIO1 RTL8101L SATA3 IXP460 Top:Line In ALC883 Center:Line Out Below:Mic In F_PANEL1 PCI1 ASUS P5RC-BR...

  • Page 6: Central Processing Unit (Cpu)

    Press <F10> to save your changes and exit the BIOS setup. After the computer restarts, right click on a blank space on the desktop, then select Properties from the pop-up menu. When the Display Properties window appears, click the Screen Saver tab. ASUS P5RC-BR...

  • Page 7: Installing The Cpu

    Unlock the socket by pressing the lever sideways , then lift it up to a 90 ~ 100 angle. Make sure that the socket lever is lifted up to 90 ~ 100 angle; otherwise, the CPU does not fit in completely. ASUS P5RC-BR...
  • Page 8 CPU. The lever clicks on the side tab to indicate that it is locked. After installation, make sure to plug-in the 24-pin ATX power cable to the motherboard. This motherboard supports Dothan M 3 series or Pentium M 7 series ® ® CPUs. ASUS P5RC-BR...

  • Page 9: System Memory

    DDR DIMM socket. The figure illustrates the location of the DDR2 DIMM sockets. YNRC-BR 240-pin DDR2 DIMM sockets Memory configurations You can install 128 MB, 256 MB, 512 MB, and 1GB DDR SDRAM DIMMs into the DIMM sockets using the memory configurations in this section.
  • Page 10 A DDR2 DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated. Locked retaining clip ASUS P5RC-BR...

  • Page 11: Removing A Ddr2 Dimm

    DIMM. DDR2 DIMM notch Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force. Remove the DIMM from the socket. ASUS P5RC-BR...

  • Page 12: Expansion Slots

    — — — used — PCI slot There is a 32-bit PCI slot on this motherboard. The slot supports PCI cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. ASUS P5RC-BR...

  • Page 13: Jumper

    4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data. Except when clearing the RTC RAM, never remove the cap from the default position. Removing the cap will cause system boot failure! CLRTC Clear CMOS Normal (Default) YNRC-BR Clear RTC RAM ASUS P5RC-BR...
  • Page 14 5. Move the jumper cap from pins 1-2 to pins 2-3. 6. Hold down the <F1> key during the boot process and enter BIOS setup to verify that the password has been cleared. CLPWD Clear Password Normal (Default) YNRC-BR Clear password setting ASUS P5RC-BR...

  • Page 15: Connectors

    Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink Mic In Mic In Mic In Mic In Yellow Orange Center/Subwoofer Center/Subwoofer Black Rear Speaker Out Rear Speaker Out Rear Speaker Out Gray Side Speaker Out ASUS P5RC-BR...
  • Page 16 14. Coaxial S/PDIF Out port. This port connects an external audio output device via a coaxial S/PDIF cable. 15. S-Video port. This port connects a video cassette recorder, camcorder, or television with S-Video interface. 16. PS/2 keyboard port (purple). This port is for a PS/2 keyboard. ASUS P5RC-BR...

  • Page 17: Internal Connectors

    Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable. • Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices. NOTE: Orient the red markings (usually zigzag) on the IDE ribbon cable to PIN 1. YNRC-BR IDE connector PIN 1 ASUS P5RC-BR...
  • Page 18 You must install a PSU with a higher power rating if you intend to install additional devices. ATXPWR1 YNRC-BR ATX power connector USB connectors (9-1 pin FRONT_USB2) These connectors are for USB 2.0 ports. Connect the USB/GAME module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis.
  • Page 19 When using the connectors in Standard IDE mode, connect the primary (boot) hard disk drive to the SATA1 connector. 5. Front headphone connector (10-1 pin F_AUDIO1) This connector is for a chassis-mounted front panel headphone port. F_AUDIO1 YNRC-BR Front audio connector ASUS P5RC-BR...
  • Page 20 Do not forget to connect the fan cables to the fan connectors. Insufficient air flow within the system can damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors! SYS_FAN1 Rotation +12V YNRC-BR Fan connector ASUS P5RC-BR...

  • Page 21: System Panel Connector

    PWR LED HD LED PLED+ HDLED+ YNRC-BR System panel connector • System power LED (2-pin PWR LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
  • Page 22 ASUS P5RC-BR...
