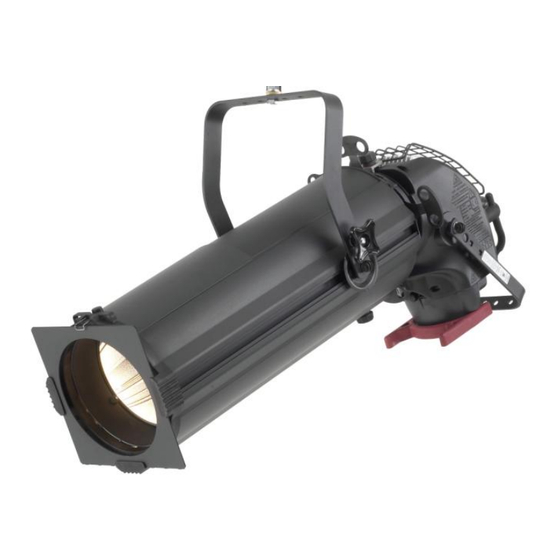

Selecon 5.5-13 Operation Manual

Pacific very narrow zoomspot
Hide thumbs
Table of Contents

Advertisement

Quick Links

REGISTER THIS PRODUCT WITH PHILIPS SELECON: www.seleconlight.com/warrantyreg
For Pacific MSR, CDM, 80V Power System please refer to the additional instruction sheets as well.
For Pacific 12-28, 14-35, 23-50, 45-75 Zoomspots and Fixed Beam models, please refer to the main
instruction manuals.
THANK YOU FOR PURCHASING A SELECON PACIFIC LUMINAIRE. WE
HAVE DESIGNED THIS LUMINAIRE TO PROVIDE YOU WITH A
SUPERIOR FITTING IN PERFORMANCE, DESIGN & ENGINEERING. WE
ARE CONFIDENT THAT IT WILL PERFORM TO YOUR EXPECTATIONS
FOR MANY YEARS TO COME.
Installation is entirely at your risk. Read this manual from cover to cover before attempting
installation. Do not attempt installation unless you are suitably qualified. If you do not
understand a point in this manual, don't guess. Don't take short cuts. If in doubt, stop!
Contact Philips Selecon or one of its authorised distributors for advice. Don't be afraid to
ask for help.
IMPORTANT NOTE: Before discarding the packaging ensure you have the suspension bolt set,
colour frame, safety chain for the attachment between the lamphouse and lens tube and/or lamp.
Version 3.1: September 2007
OPERATION MANUAL
PACIFIC VERY NARROW
ZOOMSPOT MODELS:
5.5-13 and 7-19
Caution!
© 2007 Selecon New Zealand Limited All Rights Reserved

Advertisement

Table of Contents
loading

Related Manuals for Selecon 5.5-13

Summary of Contents for Selecon 5.5-13

  • Page 1 Do not attempt installation unless you are suitably qualified. If you do not understand a point in this manual, don’t guess. Don’t take short cuts. If in doubt, stop! Contact Philips Selecon or one of its authorised distributors for advice. Don’t be afraid to ask for help.

  • Page 2: Further Assistance Contact Your Local Philips Selecon Dealer Or Philips Selecon

    Information in this manual shall not be deemed a warranty, representation or guarantee concerning a luminaires’ suitability or fitness for a specific purpose. Subject to the right to use its luminaires, Philips Selecon does not convey any right, title or interest in its intellectual property, including, without limitation, its patents, copyrights and know-how.

  • Page 3: Table Of Contents

    Please read this information carefully to ensure that you are fully conversant with its operation. Subject to the right to use its luminaires, Philips Selecon does not convey any right, title or interest in its intellectual property, including, without limitation, its patents, copyrights and know-how. If you would like further assistance contact your local Philips Selecon dealer or Philips Selecon.

  • Page 4: Safety Warnings

    Pacific Operation Manual Safety Warnings Not for residential use. CAUTION: Hot Surfaces, Avoid contact by persons or materials. The Pacific has some hot surfaces. Be careful to avoid burns. Take care with the lamp house and Heat sink. We suggest the use of leather gloves when focusing these luminaires.

  • Page 5: Centering The Lamp

    Please refer to page 7 for more details. The lamp house has no yoke fitted. A yoke can be fitted if the lamp house is to be used with other lens barrels. Please contact your Philips Selecon distributor for order codes.

  • Page 6: Centre The Lamp In The Middle Of The Beam If Necessary, By Adjusting The Three Levelling Screws. Optimising The Output

    Pacific Operation Manual Centre the lamp in the middle of the beam if necessary, by adjusting the three levelling screws. Optimising the output Lamp tilt gear The lamp position can be altered to 'Peak' or 'Flat' light output. The peak beam gives a central hot spot falling off evenly to the beam edges.

  • Page 7: Mounting Your Luminaire

    Extra safety bond attachment points have also been provided for accessories, etc, on the lens tube and on the lamp-holder handle. Safety bonds are available from Philips Selecon or your distributor. The Pacific uses universal burning position lamps.

  • Page 8: Operating Your Luminaire

    20IRIS Note that when a ‘B’ size gobo is used in a 12-28, 5.5-13 or 7.5-19 Zoomspot, only 60% of the image area will be projected due to the 50mm (2”) gate size. When a ‘B’ size gobo is used in a 23-50 Zoomspot or Fixed Beam unit, part of the light beam will be wasted.

  • Page 9: Colour Filter Life

    An adjustable iris  A motorised gobo holder (eg Rosco/ DHA) The rear slot will house a Philips Selecon rotatable pattern holder To fit an accessory in the front mounting slot Remove the accessory slot cover using a Philips screwdriver. Slide the accessory in front of the shutter plate, into the moulding slot.

  • Page 10: Safe Practice

    Pacific Operation Manual Safe Practice Heat The Pacific incorporates an innovative design to effectively remove the heat out of the luminaire, away from the critical heat-sensitive components such as the lamp base and wiring. The components that form part of the heat removal system, the heat-sink and lamp house, will operate at temperatures which can burn you!!! Take care in handling the luminaire.

  • Page 11: Safety

    However, the owner shall bear the cost of freight and insurance on the luminaire, both ways. If Philips Selecon does not wish to service, repair or replace the defective luminaire, it shall refund the purchase price.

  • Page 12: Accessories And Codes

    Pacific Operation Manual Accessories and codes Gobo holder for 'M' size patterns (5.5-13, 7.5-19 &12-28 Zoomspot) 19PACGHM Gobo holder for 'M' size Glass patterns (5.5-13, 7.5-19,12-28 Zoomspot) 19PACGHMG Gobo holder for 'A' size patterns (23-50, 45-75 and Fixed Beams) 19ACGHA...
