Summary of Contents for Selecon PLPROFILE4 MKII

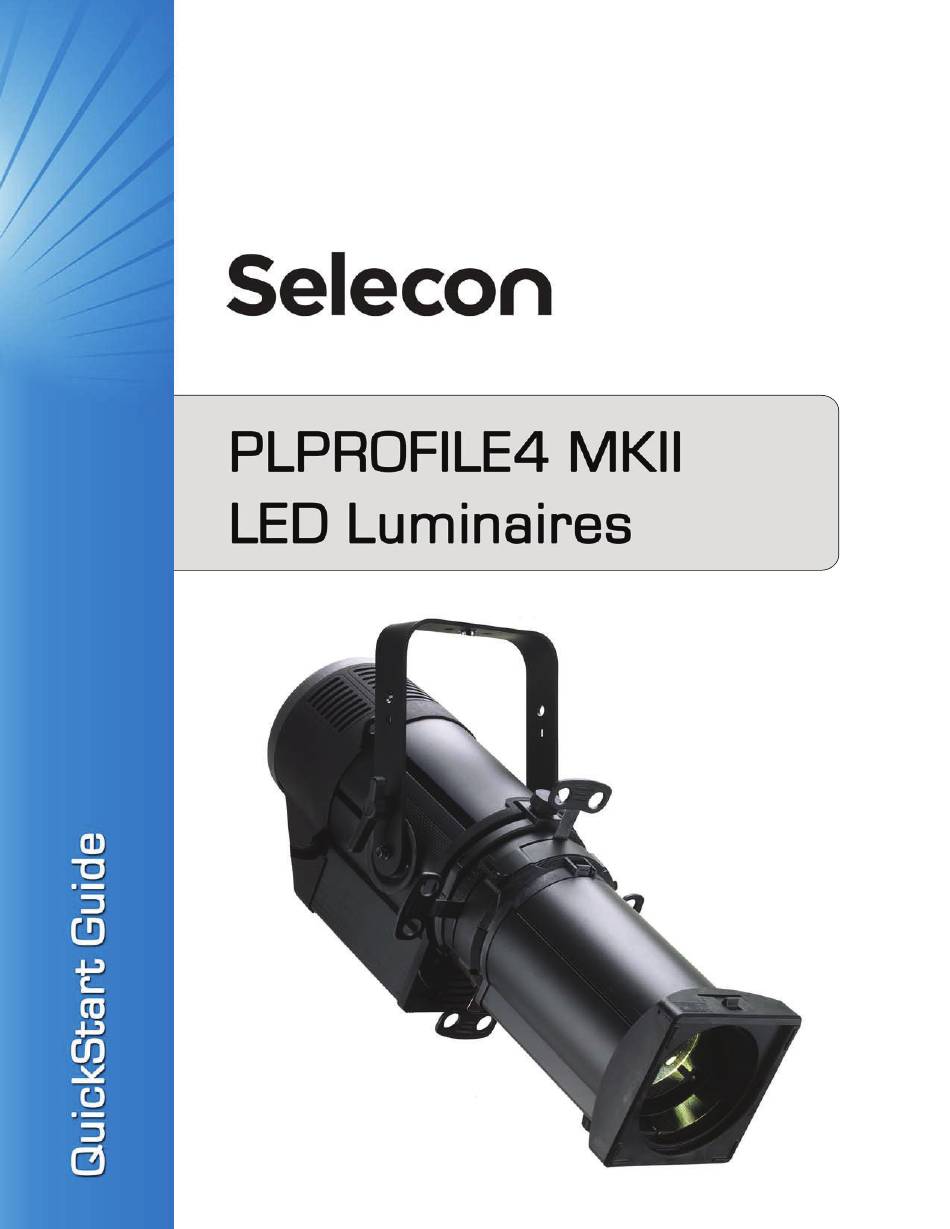

- Page 1 For PLPF4MKII-03 & PLPF4MKII-01...
- Page 2 Information contained in this document may not be duplicated in full or in part by any person without prior written approval of Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited.
-
Page 3: Table Of Contents
PLPROFILE4 MKII LED Luminaires QuickStart Guide TABLE OF CONTENTS elecon Offices ....................... Inside Front Cover TABLE OF CONTENTS IMPORTANT INFORMATION Warnings and Notices ............................. 2 Additional Resources for DMX512 ........................ 2 Selecon Limited Three-Year Warranty....................2 PREFACE About this Guide..............................3 Product Descriptions .............................. -
Page 4: Important Information
Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Selecon web site at www.seleconlight.com or by contacting your local Selecon office. IMPORTANT INFORMATION... -
Page 5: Preface
1. About this Guide This Quickstart Guide is intended for a knowledgeable user to unpack, install, and use the PLPROFILE4 MKII LED Luminaire in a short time period. For the complete manual in PDF format, please visit our web site at: www.seleconlight.com... -
Page 6: Installation And Set Up
Figure 2: PLPROFILE4 MKII LED Luminaire Top Box Connections 2. Power Requirements WARNING! The PLPROFILE4 MKII LED Luminaire should be connected to a constant circuit or a relay device. It should never be connected to a dimmer or circuit controlled by a dimmer. -
Page 7: Connecting Power
Note: Refer to Figure 2 on page 4 for AC Input and Output connections. If the unit is supplied with an AC input cable, Table 1 describes how to connect power to your PLPROFILE4 MKII LED Luminaire. Field wiring of the PLPROFILE4 MKII LED Luminaire is straight forward. A total of 3 wires/ conductors need to be brought to the unit. -
Page 8: Mounting
PLPROFILE4 MKII LED Luminaires QuickStart Guide 5. Mounting WARNING! Before attempting any installation or service, disconnect all power at power source. Dimming the luminaire does not disconnect power. Installation and service should only be performed by a trained and qualified professional. -
Page 9: Pan And Tilt Adjustments
Tilt Adjustment PLPROFILE4 MKII LED Luminaires offer variable tilt settings. The unit can be set at a specific angle (in relation to its mounting position) or at an angle between 0 to 90 degrees. When the yoke is in the position shown in Figure 5, you have full range access to shutters the gate etc. -
Page 10: Focus And Beam Adjustments
FOCUS AND BEAM ADJUSTMENTS 1. Lens Tube Removal and Installation It is easy and quick to change to the lens tubes on a PLPROFILE4 MKII LED Luminaire. Fixed beam and zoom lens tubes are interchangeable. To remove and install lens tubes: Step 1. -
Page 11: Zoom And Focus Adjustments (Zoomspot Models)
PLPROFILE4 MKII LED Luminaires QuickStart Guide 2. Zoom and Focus Adjustments (Zoomspot Models) Note: Fixed Beam Angle models have hard/soft focus adjustment only. To adjust zoom/beam angle and focus: Step 1. Make sure all frame shutters are open (out of beam path). See "FOCUS AND BEAM ADJUSTMENTS"... -
Page 12: Beam Shutter Operation
Each PLPROFILE4 MKII LED Luminaire is capable of holding two gobo holders, each containing one "B" sized glass or steel gobo. PLPROFILE4 MKII LED Luminaire are not supplied gobo holders or an iris. These items can be purchased from your local Authorized Dealer. - Page 13 Step 5. Hand tighten gobo access panel retaining screws. See Detail Detail Gobo / Iris Access Panel Gobo Area Gobo Holder Panel Retaining Screw (2 Each) Figure 10: PLPROFILE4 MKII LED Luminaire Gobo Holder and Gobo Installation Gobo/Iris Access Panel...
-
Page 14: Operation And Programming
OPERATION AND PROGRAMMING 1. LCD Menu Operation The PLPROFILE4 MKII LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. -
Page 15: Security
Note, Selecon does not have records of PIN codes established by users or owners. Note: Contact Selecon technical support if a unit is locked and the PIN code is lost for instructions on how to reset luminaire. -
Page 16: Presets
PLPROFILE4 MKII LED Luminaires QuickStart Guide Step 4. Use [LEFT ARROW] or [RIGHT ARROW] keys to highlight "YES", press [OK] or [ESC] twice to cancel action. Step 5. Fixture is now locked if locking process was not canceled as described in previous step. - Page 17 PLPROFILE4 MKII LED Luminaires QuickStart Guide Table 2: Settings Menu User-Settable Parameters Parameter Values Default Description General Full, Medium, or Quiet Sets the luminaire’s output mode - Full Quiet Mode Mode Mode, Medium Mode, or Quiet Mode. Users can set what the default preset is...
-
Page 18: Troubleshooting
1. Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Selecon Dealer or Service Center. Description Symptom Possible Cause/Remedy Unit is set to Preset Off... -
Page 19: Cleaning And Care
Refer to the product user’s manual for specific cleaning procedures and care. If you have any questions regarding the use or care of your PLPROFILE4 MKII LED Luminaire, please contact Selecon technical support or your local Authorized Dealer. - Page 20 TECHNICAL GLOBAL 24HR TECHNICAL SUPPORT: Call: +1 214 647 7880 SUPPORT entertainment.service@signify.com NORTH AMERICA SUPPORT: Call: 877-VARI-LITE (877-827-4583) entertainment.service@signify.com EUROPEAN CUSTOMER SERVICE CENTER: Call: +31 (0) 543 542 531 entertainment.europe@signify.com © 2023 Signify Holding. All rights reserved. All trademarks are owned by Signify Holding or their respective owners.
