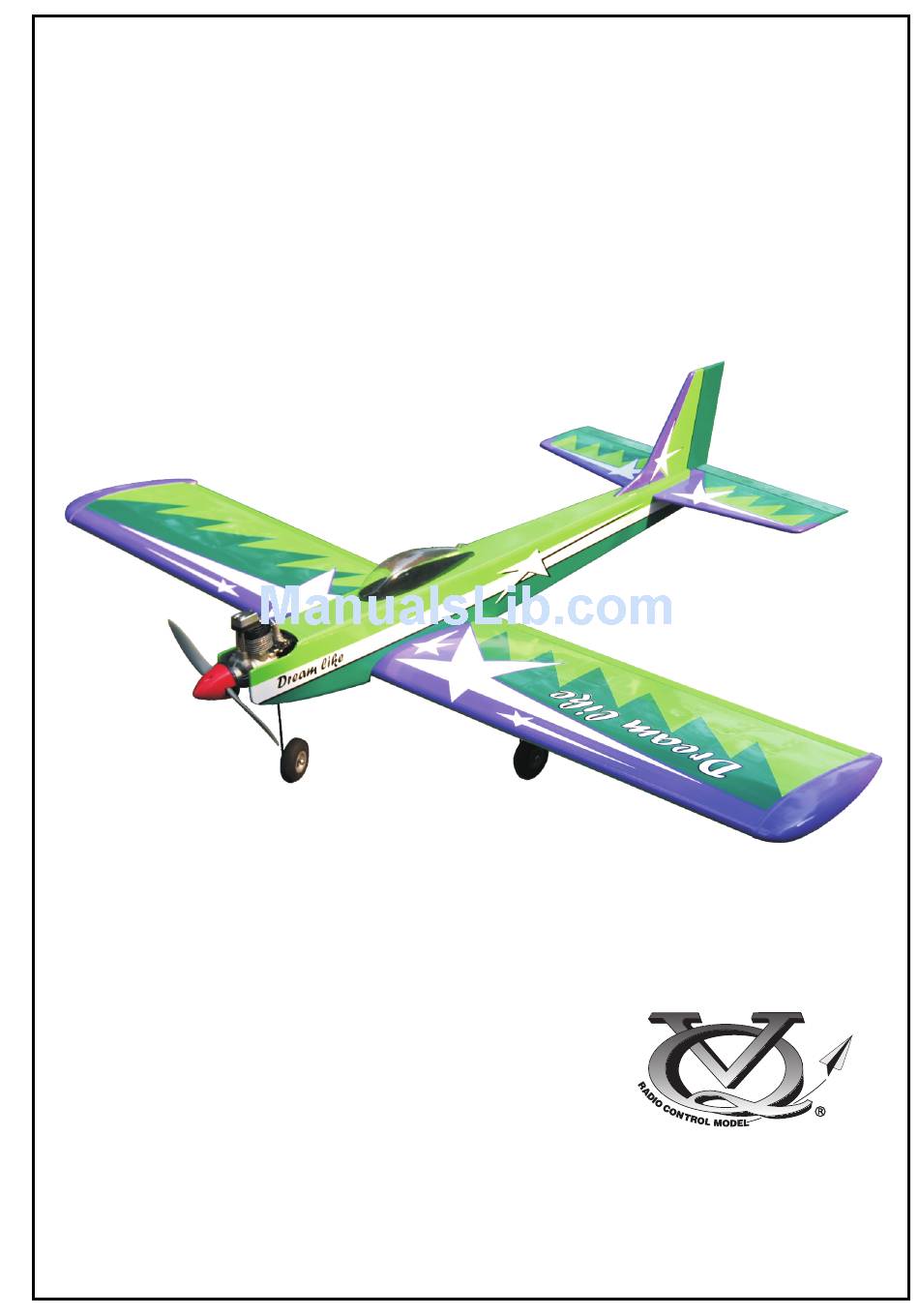

Dream like
.40 ARF LOW WING TRAINER
ALL WOOD AND ALMOST READY TO FLY
Wing span:
Length:
Weight (ready to fly): 2.4-2.6Kg
Engine:
or electric equivalent
Radio:
5 channel / 5 servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
RADIO CONTROL MODEL
INSTRUCTION MANUAL
1510mm
1030mm
2T .46 / 4T .52
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vinh Quang Dream like
Summary of Contents for Vinh Quang Dream like
-
Page 1: Instruction Manual
RADIO CONTROL MODEL INSTRUCTION MANUAL Dream like .40 ARF LOW WING TRAINER ALL WOOD AND ALMOST READY TO FLY Wing span: 1510mm Length: 1030mm Weight (ready to fly): 2.4-2.6Kg Engine: 2T .46 / 4T .52 or electric equivalent Radio: 5 channel / 5 servos WARNING! This radio controlled model is NOT a toy. - Page 2 REQUIRED FOR OPERATION (Purchase separately) 10.5x6 for .40 - 2 cycle engine Extension for aileron 11x6 for .46 - 2 cycle engine servo, retract servo. 11x7 for .52 - 4 cycle engine 12x7 for .70 - 4 cycle engine 12x7~ 13X6 for Brushless Motor Brushless Motor Control Minimum 5 channel radio...
-
Page 3: Aileron Servo Installation
1- Joining the wing WING TOP-VIEW Cut the hole for the aileron servo extension. 20mm 15mm ! Make sure to glue securely, If not properly glued, a failure in flight may occur. 1-Trial fit each part before gluing . Be certain that there are no gaps. - Page 4 4- Installing the main gear BOTTOM VIEW Main gear 1- Locate the main landing gear struts and place them into the landing gear slot as show. Make sure that the ends of the struts are inserted into 3x12 mm screw the holes in the landing gear channel.
- Page 5 After confirming the direction . Insert this assembly, clunk end 7-Fuel tank first, into the fuel tank and tighten and screw the fuel tank cap on firmly. Ensure that the fuel tank clunk does not touch the rear of the fuel tank. To muffler Filler tube Rubber stopper...
- Page 6 9-Vertical / Horizontal Tail Secure the vertical stabilizer in place using masking tape and allow the epoxy to cure Plastic control horn ..2 ....4 Hinge Line/Control horn Alignment STABILIZER CONTROL SURFACE...
- Page 7 FUSELAGE - BOTTOM VIEW 10-Servo Throttle servo Switch Throttle rod Fuel tank Elevator BATTERY servo AREA Elevator rod Rudder rod Nose gear rod Rudder servo 11- Linkage Rudder - elevator linkages Rudder push rod Steel clevis To rudder servo To elevator servo Elevator push rod 12-Battery - receiver...
- Page 8 - This model aircraft is designed to be powered by a 2 cycle .40 ~ .46 engine or a 4 cycle .48 ~ .52 engine. Installing a more powerful engine than specified or flying the DREAM LIKE aggressively may lead to serious damages and accidents.
