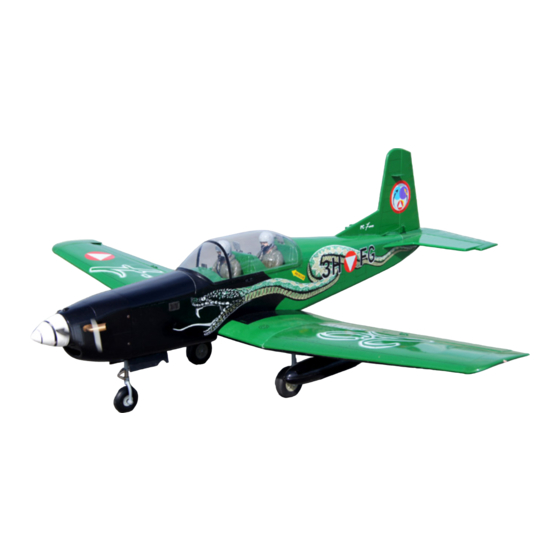

PILATUS PC-7
VQ No: VQA096 Austria Air-force
VQ No: VQA097 Swiss Air-force
Instruction manual / Montageanleitung
SPECIFICATIONS
Wingspan:...........................1500mm (59in)
Length:...............................1350mm (53 in)
Electric Motor:.....................See next pager
Glow Engine:.................... .46 2-T / .70 4-T
RTF Weight: 3.4Kg / 7.5lbs (Will vary with
Equipment Used).
Radio:......................6 Channel / 4-5 Servos
Function: Ailerons-Elevator-Rudder-Throttle
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
AUSTRIA AIR FORCE TRAINER
SWISS AIR FORCE TRAINER
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
Retractable Landing Gear Optional
TECHNISCHE DATEN
Spannweite:...................................1500mm
Lange:............................................1350mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.4Kg
Fernsteuerung.............6 Kanal / 4-5 Servos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vinh Quang PILATUS PC-7
Summary of Contents for Vinh Quang PILATUS PC-7
- Page 1 Radio control model / Flugmodel PILATUS PC-7 AUSTRIA AIR FORCE TRAINER SWISS AIR FORCE TRAINER VQ No: VQA096 Austria Air-force VQ No: VQA097 Swiss Air-force ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Instruction manual / Montageanleitung TECHNISCHE DATEN SPECIFICATIONS Wingspan:......1500mm (59in)
- Page 2 REQUIRED FOR OPERATION (Purchase separately) BENOTIGTE KOMPONENTEN FUR DEN ABFLUG (Nicht enthalten) Extension for aileron 10.5x6 for .40 - 2 cycle engine servo, retract servo 11x6 for .46 - 2 cycle engine and Rx battery pack. 12x6 for .60 - 4 cycle engine 12x7 for .70 - 4 cycle engine 13x8 for BOOST 60 Motor...
- Page 3 1- Coller les ailes Glue Wing joiner Center wing Glue must go inside Two holes for the wooden dowel installation are Draw the center line pre-drilled at factory on the wing joiner Wooden dowel Wooden dowel CENTER WING - TOP VIEW 2- Coller les ailes Pull the thread (for aileron extension cord guide) throughout the hole on the left wing panel and the hole on the center wing...
- Page 4 4- Retract landing gear Note: Electric retract landing gear not included. 3x20mm screw 3x20mm screw ..8 4mm collar .....4 After checking that the retract works smoothly with the servos, fix the retract on the wing with 3x20mm screws 3x20mm 5- fixed gear Main landing gear 3x12mm screw Nylon gear...
-
Page 5: Aileron - Linkage
6- fixed gear 4mm collar .....4 7- Aileron servo - control horn Hinge Line/Control horn Alignment 2x30mm screw Control horn ....2 2x30mm screw ..4 8- Aileron - linkage Clevis .....2 2x170mm rod ...2 Connector .....2... -
Page 6: Horizontal Stabilizer
9- Horizontal Stabilizer Securely glue together. If coming off during flight, you lose control of your air plane. Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme Cut away only the covering mit der Flugeigenschaft auftreten! both the right and left side B’... - Page 7 11- Elevator Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten! Securely glue together. If coming off during flight, you lose control of your air plane. 1-Trial fit the hon. Actuate rudder linkage manually it should not be hard spot. Adjust if necessary.
-
Page 8: Fuel Tank
13- Engine mount / Engine ! Align the mark on both mounts with the mark on the fuselage 5/32x1” 1/8x5-1/64” 4x25mm screw 3x20mm screw B’ ...4 ...4 Blind-nut 1/8”(3mm) nut Engine mount ....4 ....4 B=B’ ..1 set Reposition the engine mounts on to the fire-wall. Using a pencil or felt tipped pen, Remove the engine mount and drill a Attach the four blind-nut to the fire-wall as show. -
Page 9: Electric Motor
15- Electric Motor Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled . Remove the aluminum motor mounting plate and drill a 1/8”(3mm) hole through the plywood at each of the four marks marked . -
Page 10: Wing Installation
18- Servo - linkage FUSELAGE - BOTTOM VIEW (EP version) Rudder servo Nose gear pushrod Li-Po battery Rudder pushrod Elevator servo FUSELAGE - REAR - BOTTOM VIEW Elevator push rod Rudder push rod FUSELAGE - REAR - TOP VIEW Plastic control horn Clevis Connector ..1... - Page 11 20- Droptank Drop-tank mount FRONT WING SECTION Drop tank mount (3mm plywood) Cut away only the covering (the slot for the drop-tank mount installation is pre-cut at factory) 2x6mm screw ..6 21- Stabilizer Thin CA Cut away only the covering, the slot is pre-cut at factory...
-
Page 12: Control Surface
RESCUE At curves stretch sticker and apply a little heat so that no ceases occur. Cut off the excess that is produced. PILATUS PC-7 DECAL SHEET For PC-7 Austria Air-force version RESCUE RESCUE For PC-7 Swiss Air-force version...
