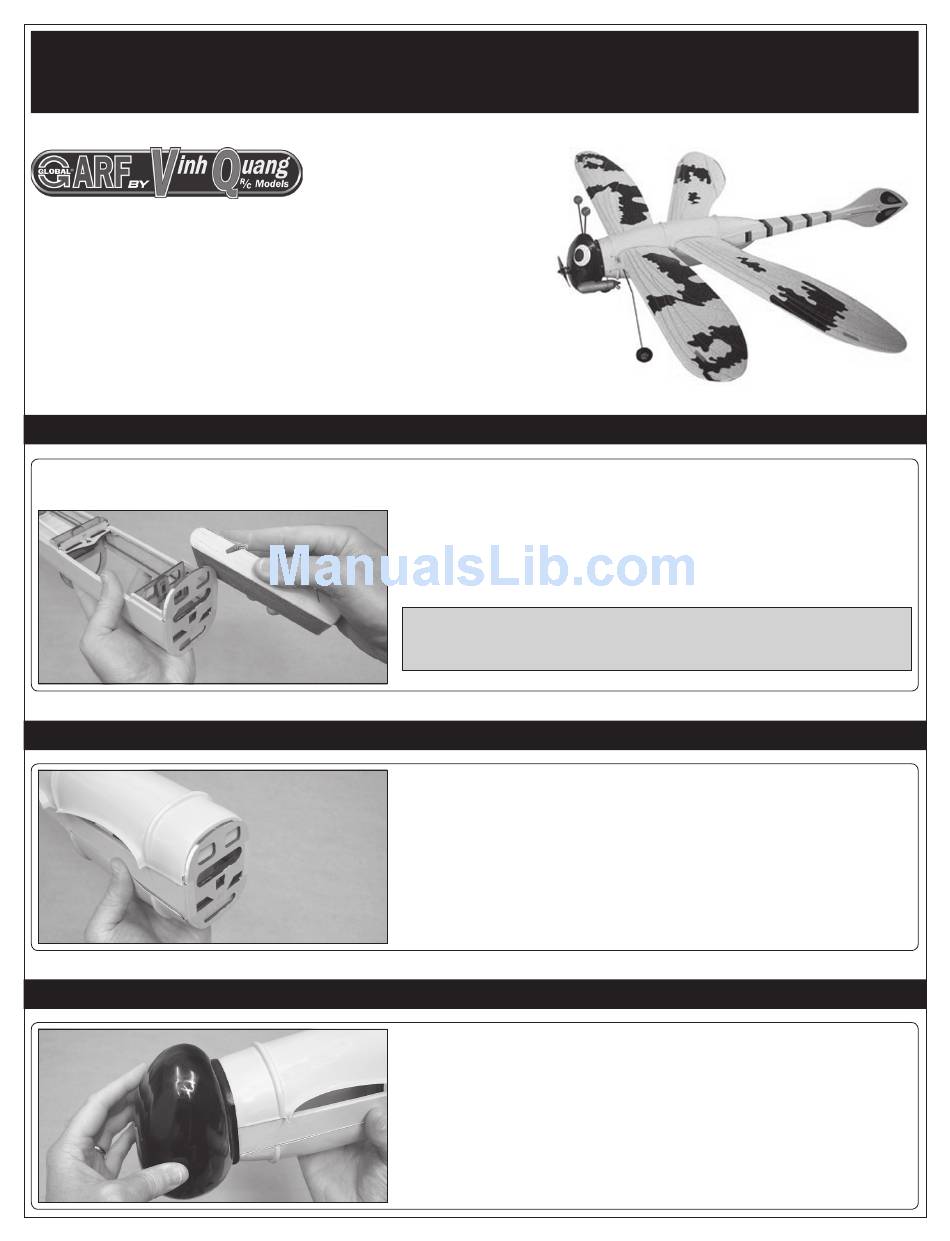

Vinh Quang VQE005 Dragon Fly Assembly Instructions Addendum

this addendum supplements the Instruction sheet included with your
dragon Fly ARF. Please read through both this addendum and the Instruction
sheet before starting.
this addendum covers installation of the two forward fuselage fairings and
the cowl. Please follow the procedures in this addendum carefully.

cHecKING tHe FIt oF tHe coWl

q Before installing the top and bottom fuselage fairings, double-check that the cowl fits properly over the firewall. The cowl mounting
ring should slide over the firewall, but not fit too tightly. If it doesn't slide over the firewall, please follow the procedure below.

INstAllING tHe FuselAGe FAIRINGs

INstAllING tHe coWl

Made in Vietnam
VQ Models dRAGoN FlY ARF
AsseMblY INstRuctIoNs AddeNduM
q If the cowl mounting ring does not slide over the firewall, lightly sand the
top and bottom curved edges of the firewall to match the curves of the cowl.
Remove small amounts of material at time and double-check the fit often to
ensure that you don't remove too much material.
IMPORTANT It may be necessary to also lightly sand the inside edge of the
cowl mounting ring to remove any excess fiberglass resin that might interfere
with sliding the cowl mounting ring over the firewall.
q When you install the top and bottom fuselage fairings, make sure that the
front of the fairings are installed behind the firewall. Do not install the fuselage
fairings over the edges of the firewall.
q Install the cowl after installing the fuselage fairings. When aligned properly,
the back edge of the cowl mounting ring should be butted up against the
front of the fuselage fairings. The cowl mounting screws are then threaded
through the cowl mounting ring and into the edge of the firewall/fuselage
Kit Product Number VQe005
Global Hobby distributors
© 2008, All Rights Reserved
