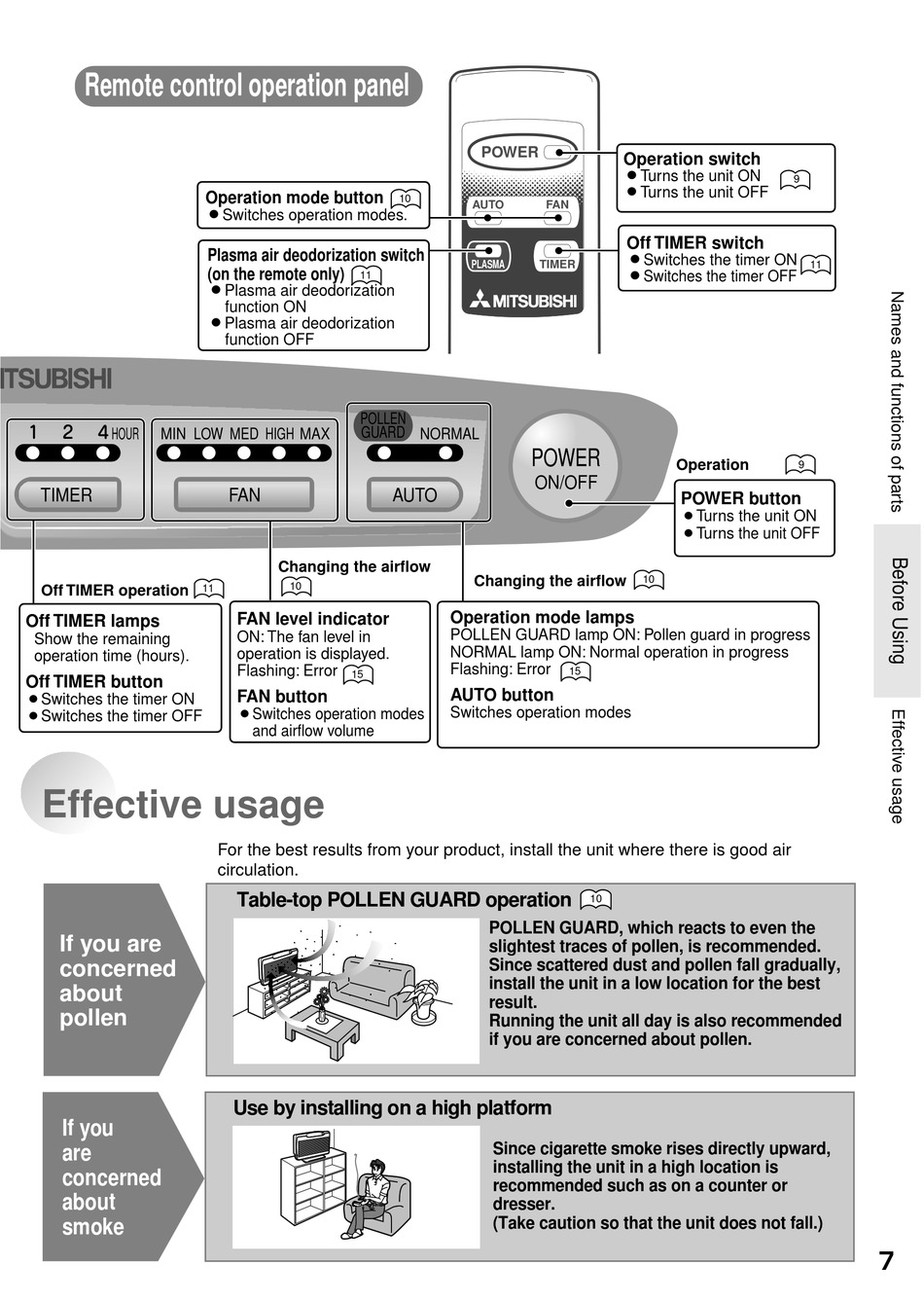

Remote control operation panel
HOUR MIN LOW MED HIGH MAX
TIMER
Off TIMER operation
Off TIMER lamps
Show the remaining
operation time (hours).
Off TIMER button
¡Switches the timer ON
¡Switches the timer OFF

Effective usage

If you are
concerned
about
pollen
If you
are
concerned
about
smoke
Operation mode button
¡
Switches operation modes.
Plasma air deodorization switch
(on the remote only)
11
¡
Plasma air deodorization
function ON
¡
Plasma air deodorization
function OFF
POLLEN
GUARD
FAN
Changing the airflow
10
11
FAN level indicator
ON: The fan level in
operation is displayed.
Flashing: Error
15
FAN button
¡Switches operation modes
and airflow volume
For the best results from your product, install the unit where there is good air
circulation.
Table-top POLLEN GUARD operation
Use by installing on a high platform
POWER
10
AUTO FAN
PLASMA TIMER
NORMAL
POWER
ON/OFF
AUTO
Changing the airflow
Operation mode lamps
POLLEN GUARD lamp ON: Pollen guard in progress
NORMAL lamp ON: Normal operation in progress
Flashing: Error
AUTO button
Switches operation modes
POLLEN GUARD, which reacts to even the
slightest traces of pollen, is recommended.
Since scattered dust and pollen fall gradually,
install the unit in a low location for the best
result.
Running the unit all day is also recommended
if you are concerned about pollen.
Since cigarette smoke rises directly upward,
installing the unit in a high location is
recommended such as on a counter or
dresser.
(Take caution so that the unit does not fall.)
Operation switch
¡
Turns the unit ON
¡
Turns the unit OFF
Off TIMER switch
¡
Switches the timer ON
¡
Switches the timer OFF
Operation
POWER button
¡Turns the unit ON
¡Turns the unit OFF
10
15
10
9
11
9
7
