Avadesign V-Bell DP-104 SIP IP Installation And User Manual

Hide thumbs Also See for V-Bell DP-104 SIP IP:
Table of Contents

Advertisement

Quick Links

See also: Installer and User Manual
Installation and User Guide
2014
w w w . a v a d e s i g n . c o m . t w

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Bell DP-104 SIP IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avadesign V-Bell DP-104 SIP IP

Summary of Contents for Avadesign V-Bell DP-104 SIP IP

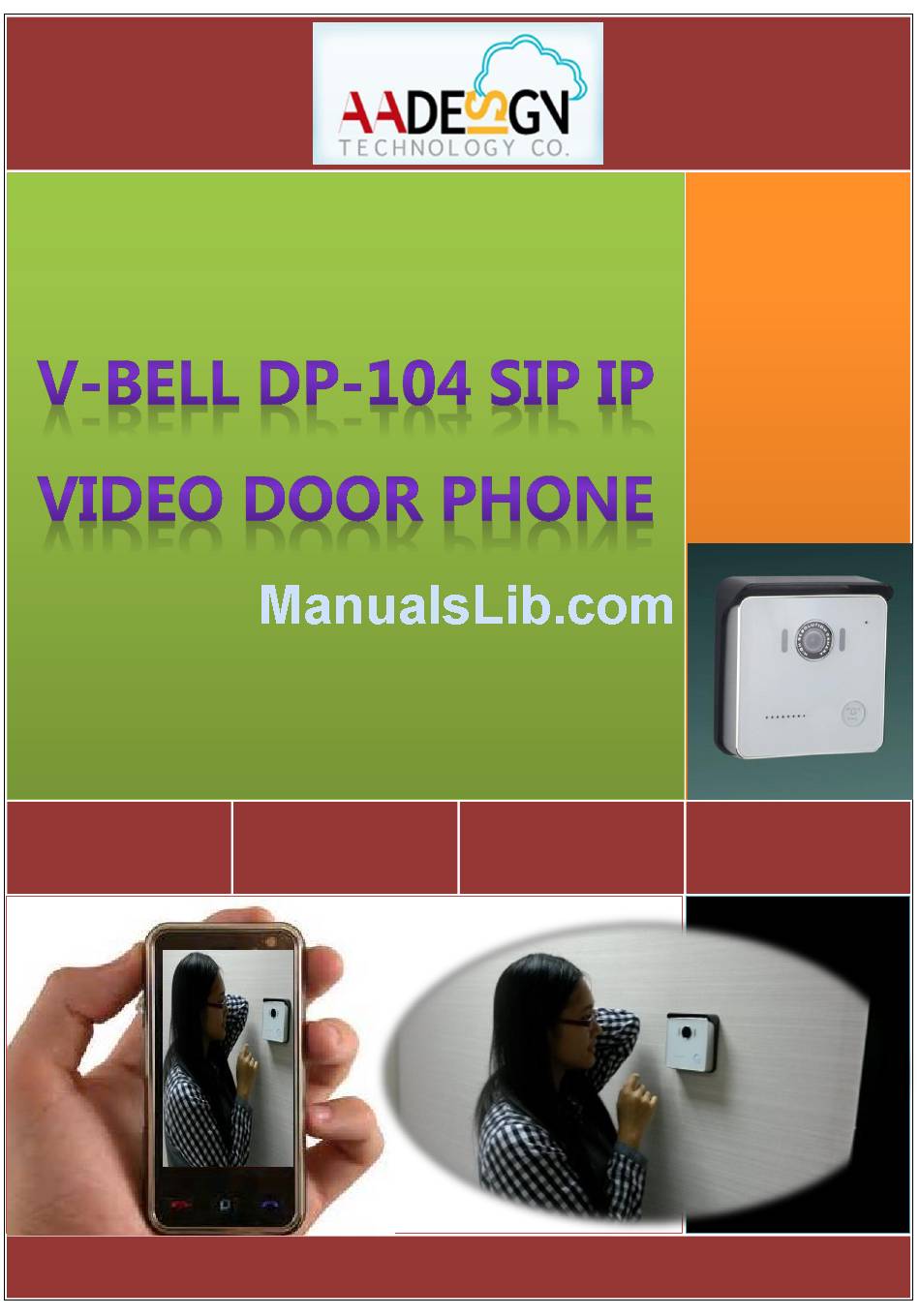

  • Page 1 Installation and User Guide 2014 w w w . a v a d e s i g n . c o m . t w...
  • Page 2 WELCOME Congratulations on purchasing the V-Bell DP-104 SIP IP Video Door Phone. This door phone is suitable for all your business, and home, door entry communication needs. The DP-104 SIP IP Video Door Phone connects to your computer network and allows either peer to peer (P2P) calls (calls direct to an IP address of another VoIP device) or calls to another number via the SIP server, moreover, it is easily to setup and configuration via a web browser.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............. . 3 Features .

  • Page 4: Introduction

    Introduction The DP-104 SIP Video Door Phone is the new, elegant design and works as a video door intercom with compact shape. By surface mounted, therefore easy to install. It works with SIP based phone systems and compatible with most modern IPBX systems supporting both audio and video.

  • Page 5: Quick Install

    The Qualia Service is the cloud service and free charge that provided by Avadesign Technology for the DP-104 SIP IP Video Door Phone application. 4a. Access Qualia service The V-Bell DP-104 SIP IP Video Door Phone will access the Qualia service directly and start to work automatically. Now, you can test the DP-104.

  • Page 6: Sip Server Registration

    User can choose either Qualia service or register to SIP server which is accessed via a web browser. SIP server registration 4b. Register to SIP server When User register the DP-104 to SIP server, please open user’s chrome browse and point to an IP address 192.168.1.xx of the door phone as shown as follows.
  • Page 7 You can also see the service status as below: Now you can select “service” in the first level of menu then click on “Phone -> SIP” bar in the second level of menu to register your DP-104 SIP IP video door phone to SIP server. Disable Qualia Service.
  • Page 8 If you would like to make SIP transport, local port…and so on advance setup, please move the cursor to the arrow sign which at the end of “Advanced Settings” and click the left button of your mouse. Then you can input data for advance setup as below: Next step, you can setup the ring time and call duration for outgoing calls of the DP-104 SIP IP video door phone by clicking on “Phone->Calls”...
  • Page 9 The Real Time Streaming Protocol (RTSP) enables you to watch live video from DP-104 SIP IP video door phone connected to the RTSP server. Now you can enable RTSP server by clicking on “Streaming” bar in the second level of menu for real-time watching who is at the front door.
  • Page 10 If you would like to adjust the volume of speaker and microphone, please select “device” in the first level of menu and click on “Volume Control” bar in the second level of menu as follows: If you would like to adjust the brightness and contrast of IP camera of the DP-104 door phone, please select “device”...
  • Page 11 The network settings can be found in the menu “Network“. Depend on different network environment for each user. You can go to “System” item in the first level of menu and click on “Network” bar in the second level of menu to define the type of your network. You can set up the date and time of the DP-104 SIP IP video door phone by manual or NTP (Network Time Protocol) server.

  • Page 12: Upgrade Dp-104 Firmware

    Upgrade DP-104 Firmware Before you select “System” in the first level of menu and click on “Maintenance” bar in the second level of menu to make new configuration, you need to download the firmware file of the DP-104 SIP IP video door phone.

  • Page 13: How To Find The Ip Address Of Your Dp-104 Sip Ip Video Door Phone

    How to find the IP address of your DP-104 SIP IP Video Door Phone If find out the IP address of DP-104 video door phone is difficult for you, please open your browse and point to an IP address 220.135.186.178/dp104/utilities/. The screen is shown as below. is used for your computer.
  • Page 14 AvaScan.ipa is used for your mobile devices that developed by iOS such as iPad or iPhone. Please download the file with name of AvaScan.ipa on your iPad or iPhone and install it. The icon will appear on the screen of Apps on your iPad or iPhone. Click on this icon , you will find the IP address of your DP-104 SIP IP video door phone show on the screen that is similar with above diagram.
  • Page 15 Please download the file with name of avaScan.apk to your cellular phone or tablet and install it. The icon of avaScan will appear on the screen of Apps on your cellular phone. Click on this , you can choose “search Cam” to see the IP address of your DP-104 SIP IP video door icon phone.

  • Page 16: Mechanical Dimensions

    Mechanical dimensions for the DP-104 SIP IP video door phone  Dimension (H x W x D): 114x114x35mm  Weight: 290g  Color of Door phone Faceplate Options: White for DP-104W and Black for DP-104B  Power supply INPUT:100-240V~ 50/60Hz 0.5A OUTPUT:12V DP-104W DP-104B...

  • Page 17: Applications

    Applications The application of DP-104 SIP IP Video Door Phone is shown as follows. Smart Home Intercom Integration Networking...
