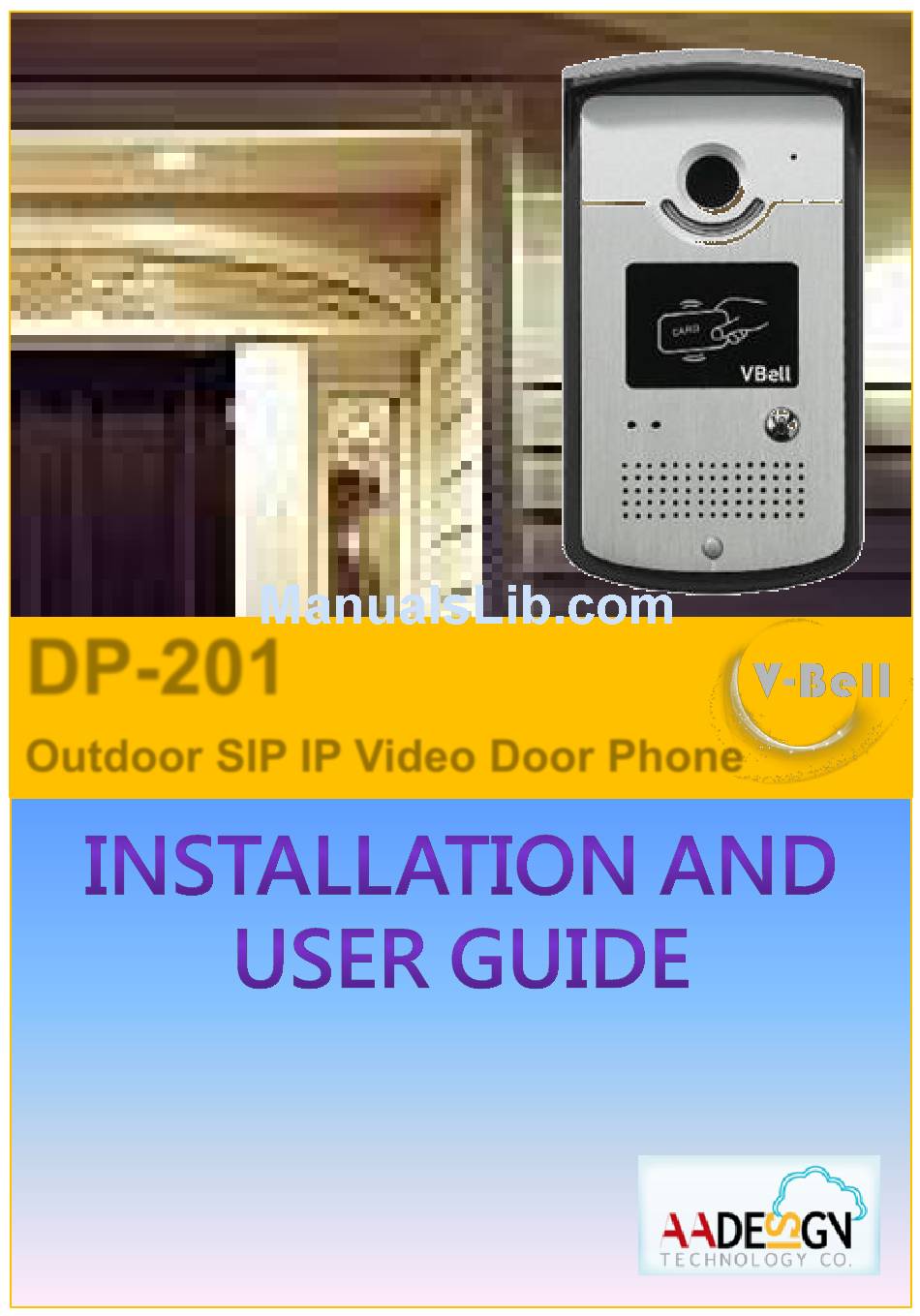

- Page 1 DP-201 Outdoor SIP IP Video Door Phone www.avadesign.com.tw...
- Page 2 The DP-201 Outdoor SIP IP Video Door Phone connects to your computer network and allows either peer to peer (P2P) calls (calls direct to an IP address of another VoIP device) or calls to another number via the SIP server, moreover, it is easily to setup and configuration via a web browser.
-
Page 3: Table Of Contents
....3.5.3.1 Upgrade DP-201 Firmware .... - Page 4 ..........Chapter 4 How to find the IP address of your DP-201 Door Phone....22...
-
Page 5: Chapter 1 Introduction
Chapter 1 Introduction DP-201 SIP IP door phone with flush mount and water proof, run on the Internet and provide more services for access control system, is coming soon. It can be combined with IP Phone as a tool to open the door. It can also be combined with a smartphone (supported both iOS and Android system) as a tool to open the door. -
Page 6: Chapter 2 Quick Install
Chapter 2 Quick Install The V-Bell DP-201 Outdoor SIP IP Video Door Phone requires minimal configuration for a typical installation. 2.1 Open carton Open the carton and take out the DP-104 Door Phone. Your package should include: One DP-201 Outdoor SIP IP Video Door Phone ... -
Page 7: Wiring And Embedded Installation
2.4 Wiring and embedded installation Step 1: Select a location; open a rectangular hole with dimensions 80X140mm on the wall that shown as below. Embed the housing of DP-201 into the rectangular hole on the wall. 80mm Housing Step 2: Then mount the body of DP-201 into the housing. -
Page 8: Access Cloud Service
VBell Service The VBell Service is the cloud service and free charge that provided by Avadesign Technology for the DP-201 application. 2.5 Access Cloud Service The DP-201 will access the cloud service directly and start to work automatically. Now, you can test the DP-201. -
Page 9: Chapter 3 Full Web Configurations
Chapter 3 Full Web Configurations You can login the web configure page of DP-201 to set up your DP-201 Outdoor SIP IP video door phone. 3.1. Enter web configure page Default network settings of the DP-201 is DHCP, when unable to obtain an IP, the IP will be temporarily fixed at 192.168.1.100, type http://192.168.1.100 in the address bar and... -
Page 10: Service Status
3.3.1 SIP Now you can select “service” in the first level of menu then click on “SIP” bar in the second level of menu to register your DP-201 Outdoor SIP IP video door phone to SIP server. Disable Cloud Service. And input your data to each fields. -
Page 11: Calls
Then you can input data for advance setting as above. 3.3.2 Calls Next step, you can setup the ring time and call duration for outgoing calls of the DP-201 Outdoor SIP IP video door phone by clicking on “Phone→Calls” bar in the second level... -
Page 12: Video
3.3.3 Video You can setup the resolution of image, video frame rate and video quality for the live video of IP camera of the DP-201 Outdoor SIP IP video door phone that shown as follows. Please remember that after you change its data, the system need to reboot. -
Page 13: Rtsp Server
The Real Time Streaming Protocol (RTSP) enables you to watch live video from DP-201 Outdoor SIP IP video door phone connected to the RTSP server. Now you can enable RTSP server by clicking on “RTSP Server” bar in the second level of menu for real-time watching who is at your door. -
Page 14: Devices
Device — Volume Control 3.4.2 Camera If you would like to adjust the brightness and contrast of IP camera of the DP-201 Outdoor SIP IP video door phone, please select “device” in the first level of menu and click on “Camera” bar in the second level of menu. You also can decide to open or close the light of the camera LED that shown as follows: Device —... -
Page 15: Rfid
DP-201 supports RFID reader for MiFare. Therefore the MiFare card can connect to DP-201 device. There is a unique ID for RFID card and can NOT be revised and copied. Because of this characteristic, user can apply it as a recognizable identify. -
Page 16: Relay
to set up ID identified, choose the card number from B zone and transfer to C zone. Also you need to select RFID Authentication. Then the card owner which is in C zone can open the door. Now, you finish the setting procedure. Step 3: You also can check history to realize which card pass in RFID log because it could recode last 100 unit data 3.4.4 Relay... -
Page 17: System
DP-201 can be used to integrate other applications, you can also specify the card ID transmitted to a remote server by key in your service IP to API URL (GET): http:// HTTP protocol and response data by the server to determine whether open the door or In this step, please don’t select RFID Authentication. - Page 18 If you click Ethernet, please choose DHCP or Static IP that shown as below. The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on Internet Protocol (IP) networks for dynamically distributing network configuration parameters, such as IP addresses for interfaces and services. System —...
-
Page 19: Date & Time
System — Network — PPPoE 3.5.2 Date & Time You can set up the date and time of the DP-201 Outdoor SIP IP video door phone by manual or NTP (Network Time Protocol) server. If you choose to setup the date and time by manual, please input data for “Date”, “Time”, and “Time-zone”... -
Page 20: Maintenance
Before you select “System” in the first level of menu and click on “Maintenance” bar in the second level of menu to make new configuration, you need to download the firmware file of the DP-201 Outdoor SIP IP video door phone. Please visit http:/220.135.186.178/dp201/firmware to download the firmware file and save in your computer. -
Page 21: Reboot
You can also click on “Reboot” button to execute reboot work under Network function that described in section 3.5.1 of this manual. System — Reboot 3.5.6 Language This function is available for you to setup DP-201 system web page language. You can choose Traditional Chinese or English that shown as following diagram. - Page 22 System — Language...
- Page 23 Chapter 4 How to find the IP address of your DP-201 Outdoor SIP IP Video Door Phone If find out the IP address of DP-201 Outdoor SIP IP video door phone is difficult for you, please open the web browser and type http://220.135.186.178/dp201/utilities/...
