Summary of Contents for Kirk Z-3040

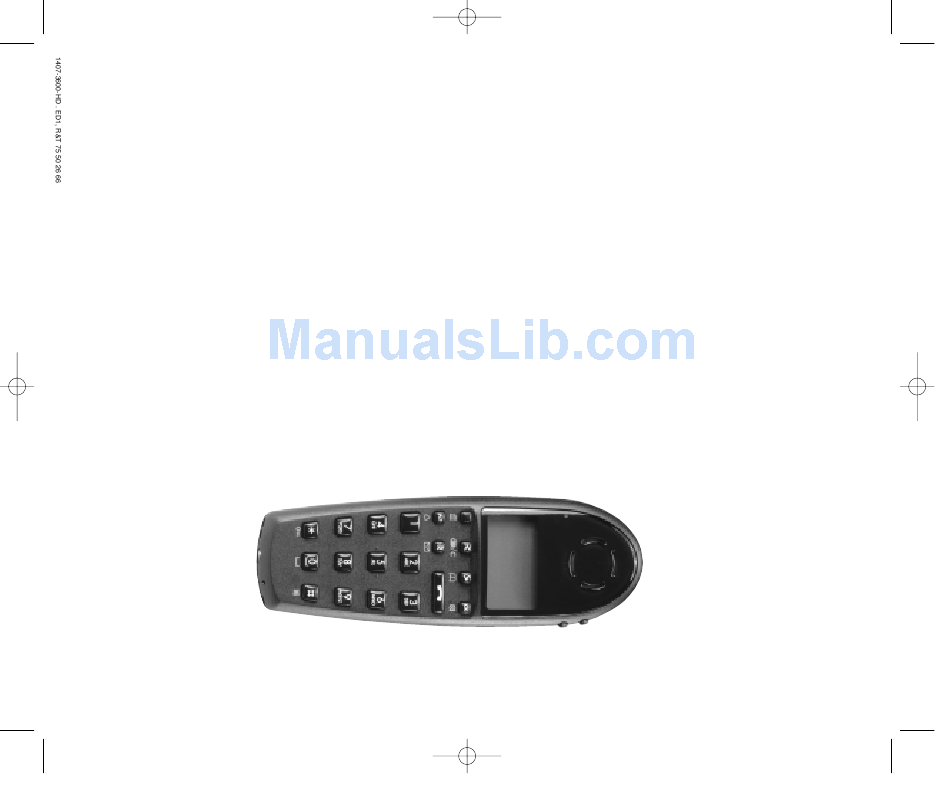

- Page 1 Kirk Z-3040 1407 3600 OEM 13/06/01 16:04 Side 1 Handset - User’s Guide...
-
Page 2: Table Of Contents
Kirk Z-3040 1407 3600 OEM 13/06/01 16:04 Side 2 Congratulations on your new DECT handset The handset will provide you with the greatest possible degree of flexibility and mobility due to high battery capacity, practical weight, size and design. Contents: 8.5 Menu subscription and login .........21... -
Page 3: Construction
Kirk Z-3040 1407 3600 OEM 13/06/01 16:04 Side 3 MENU key Display with backlight 1. Construction Left arrow key, Redial menu Key for internal calls from standby text Keyboard LOCK (Menu*) Right arrow key, save number. Recall key Telephone book menu from... -
Page 4: Charging
Kirk Z-3040 1407 3600 OEM 13/06/01 16:04 Side 4 3. Charging It takes approximately 3 1/2 hours to charge the handset from fully discharged to its full capacity. Place the hand- set in the charger. The display shows the charging status in line 3. For correct charging the room temperature has to be between 0°C and 25°C and therefore the handset must not be placed in direct sunshine. -
Page 5: Turning The Handset On/Off
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 5 “ALT”, -If residential systems: Internal calls off hook, and internal recall if already off hook. “R”, - If off hook: Recall. If on hook: Read message. “ ” - On hook/off hook and turn ON. -
Page 6: Making A Call
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 6 6. Making a call For making or receiving calls the handset has to be subscribed to a system ( shown in display) (see chap. 8.5.1) Press the -key, the -icon in the display will flash until connection is established... -
Page 7: Receiving Calls
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 7 6.1. Receiving calls If the phone rings, the call can be answered by pressing the -key. When ringing the LED flashes fast, and the display shows the CLIP (if presented). If it is an external call (or if no CLIP) the display shows “INCOMING CALL”... -
Page 8: Set Ups
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 8 7. Set ups The handset has two user-defined profiles (set ups), and a mode where all sounds are disabled (SILENT). Pres- sing “ ” followed by “OK” will show the chosen profile. A new profile can be selected by using the arrow keys. To select the chosen profile press “OK”. -
Page 9: Using The Alphanumeric Keyboard
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 9 8.1 Using the alphanumeric keyboard The normal dialling keys (0-9) are used for writing the name to be placed in the phone book. By pressing the keys a certain number of times the related letters or digits will appear in the display. Spaces are made by using the 0- key. -
Page 10: Profile Set Up
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 10 8.3 Profile set-up In the following you will find a description of how to set up one of the 2 profiles. To enter the Profile Set-up menu press “ ”. Then press “OK” and use > or < to find the profile you wish to change and confirm with “OK”. You are now able to switch between the different settings. -
Page 11: Profile Functions
: Can be turned on/off using the > and <. Confirm with (OK). When turned on, the telephone automatical- ANSWER ly goes off hook when ringing. If subscribed to a KIRK system it automatically goes on hook when calls are termi- nated. -
Page 12: Create Subscription
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 12 8.5.1 Create subscription To make subscriptions, the system must allow subscriptions to be made. Some systems also require an Access Code (AC). If more than one system currently permits subscription, you will need to know the ID of the system to which you wish to subscribe. -
Page 13: Auto Login
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 13 8.5.3 Auto login The handset can be subscribed to 4 different systems. If Auto login is chosen from the menu, the handset automat- ically selects the “closest system”. The selected system is marked with an “A”. -
Page 14: Battery
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 14 8.6 Battery capacity In the battery menu it is possible to see the remaining battery capacity. For reading the correct capacity, the hand- set has to be removed from the charger for at least one hour. Press “... -
Page 15: Book
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 15 The Redial and CLIP stack Menu (fig) < BILL GATES REDIAL CLIP 75602850 DELETE? STORE NO.? DELETE ALL? NAME: 8.8 Book Storing a number (max. 24 digits) in the telephone book is done by pressing the number to be stored (in on hook), then press the “>”- key followed by the “OK”... -
Page 16: External Services
CARL NIELSEN PHILIP CLAUS HANSEN PEDERSEN 7561XXXX 8614XXXX DELETE? EDIT NO.? EDIT NAME? 7561XXXX 7561XXXX CARL NIELSEN 8.9 External services External services are facilities placed in the main system, and only available if the handset is subscribed to a KIRK system... -
Page 17: Msf Functions
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 17 8.10 MSF-functions MSF Functions are special functions, which are based on MSF (Message Service Function). The functions require special software in the main system. Mail/Text Messages Available in systems configured with the possibility of sending text messages At the reception of a text message the envelope icon appears in the display. - Page 18 Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 18 Read a mail Press the ”R”- (MAIL) key followed by the -key or enter the mail menu (in on hook condition). If the message includes more than 36 letters or digits, the message will run over 2 display screens.
-
Page 19: Shortcuts
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 19 KIRK telecom MAIL Menu structure N25-01 04.38 L26-01 14.32 N28-01 15.46 WRITE NEW √19-01 09.56 √20-01 10.13 MAIL? htj@kirktelec Temp 45° .. Hello, its me.. FIRE ALARM.. I am working.. Call me.. -
Page 20: Information
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 20 10. Information 10.1 Error tree Problem Check The telephone freezes. Remove and replace the battery pack. Press to turn on the telephone. The telephone does not ring. Check whether the ringer is SILENT or RINGER VOL. is OFF. -
Page 21: Technical Information
Kirk Z-3040 1407 3600 OEM 13/06/01 16:05 Side 21 10.4. Technical information Approvals Acoustics: TBR 10 Electrical: TBR 6 (DECT RF) Access profile: TBR 22 (GAP) EMC: ETS 300 329 (CE labelling) Size and weight Size: 143 x 48 x 26 mm Weight: 121 g including battery ±...
