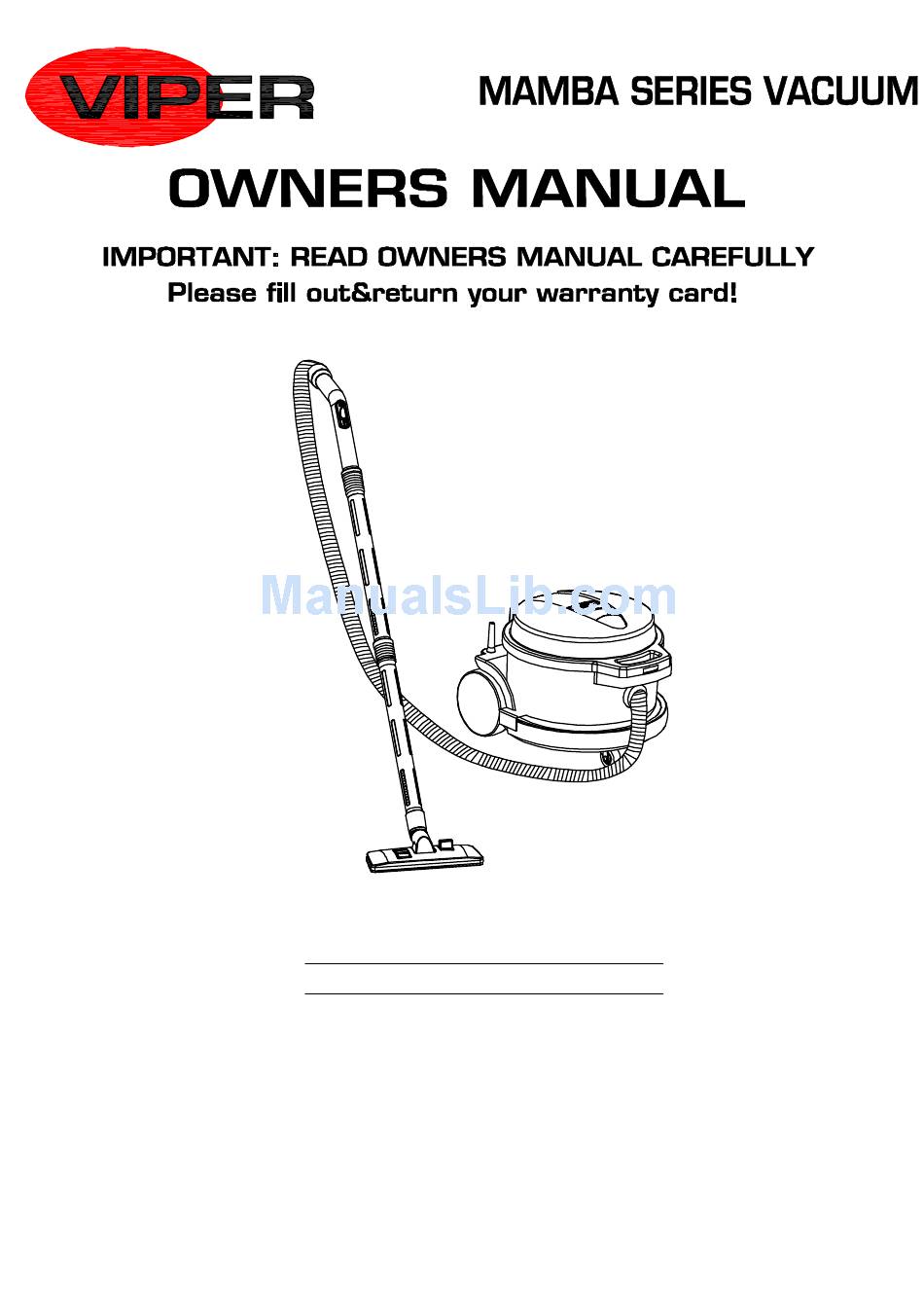

- Page 1 MODEL # MB39CV SERIAL # VIPER NORTH AMERICA VIPER...exceptional P.O. BOX 104 HAMILTON,MI 49419 value [866] 418-4737 Rev.00(08-08) [866] 41-VIPER VA41128...
-
Page 2: Table Of Contents
CONGRATULATIONS on your purchase of a Viper product, and welcome to the V.I.P. family. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties in the industry. -
Page 3: Safety Precautions
In standing water. Without bag/filters in place With the use of extension cords. 2] Before operating machine: SAFETY PRECAUTIONS Make sure all safety devices are in place and operate properly. !!! This machine must grounded! Grounding provides path least 3] When using machine: resistance electrical current. -
Page 4: Machine Operation
Operation of the Canister Vacuum * Read operators manual thoroughly prior to operating or servicing this machine. DRY PICKUP MAINTENANCE Remove The vac head of machine and To keep the machine performing well for confirm that there is either a cloth of many years, please follow the following paper filter in place. -
Page 5: Parts Lists
PARTS LIST... - Page 6 PARTS LIST PART DESCRIPTION NUMBER REQ'D VF47035A LOGO VA41012A TOP COVER VA41048 BUTTON VA41045 LATCH VA41047 SPRING VA14216 PIN Ø3X30 VA41044 HOUSING,LATCH VA13469 SELF-TAPPING SCREW,ST3X12 VA13487 SELF-TAPPING SCREW,ST3X12 VA41043 SHIELD VA41046 BLOCK,LATCH VA14007 PIN Ø4X12 VA41010A BASE,TOP COVER VA41021 SPRING VA41009 PUSH BUTTON VA41008...
- Page 7 PARTS LIST PART DESCRIPTION NUMBER REQ'D VA41003A TANK SEAT VA41036 VAC MOTOR, 110V VA41032 GASKET VA41015A MOTOR SEAT GT13004 SELF-TAPPING,ST5X16 VA41031 FOAM FILTER,MOTOR VA21544A SERIAL TAG VF40994 READ MANUAL VF47027 WASHER,LOCK VF47055 REAR WHEEL VA96851 CAP,AXEL VA41017 PUSH SWITCH BUTTON VA20209-16 SPRING,SWITCH BUTTON VA41018A...
- Page 8 ACCESSORIES...
- Page 9 PARTS LIST PART DESCRIPTION NUMBER REQ'D VA41130 HOSE ASSY VA41023 PAPER BAG VA20205 TUBE VA41027 VACUUM BAG,CLOTCH GT0012B COMBINATION TOOL VA20804 DUSTING TOOL VA20805 CREVICE TOOL VA20802-1 UPHOLSTERY TOOL...
-
Page 10: Wiring Diagram
Wiring Diagram MB39CV SWITCH BLACK BLACK 120V 60HZ WHITE BLACK Motor SINGLE PHASE SUPPLY SJTW 16/3C Power Power Supply Supply Cord Cord...
