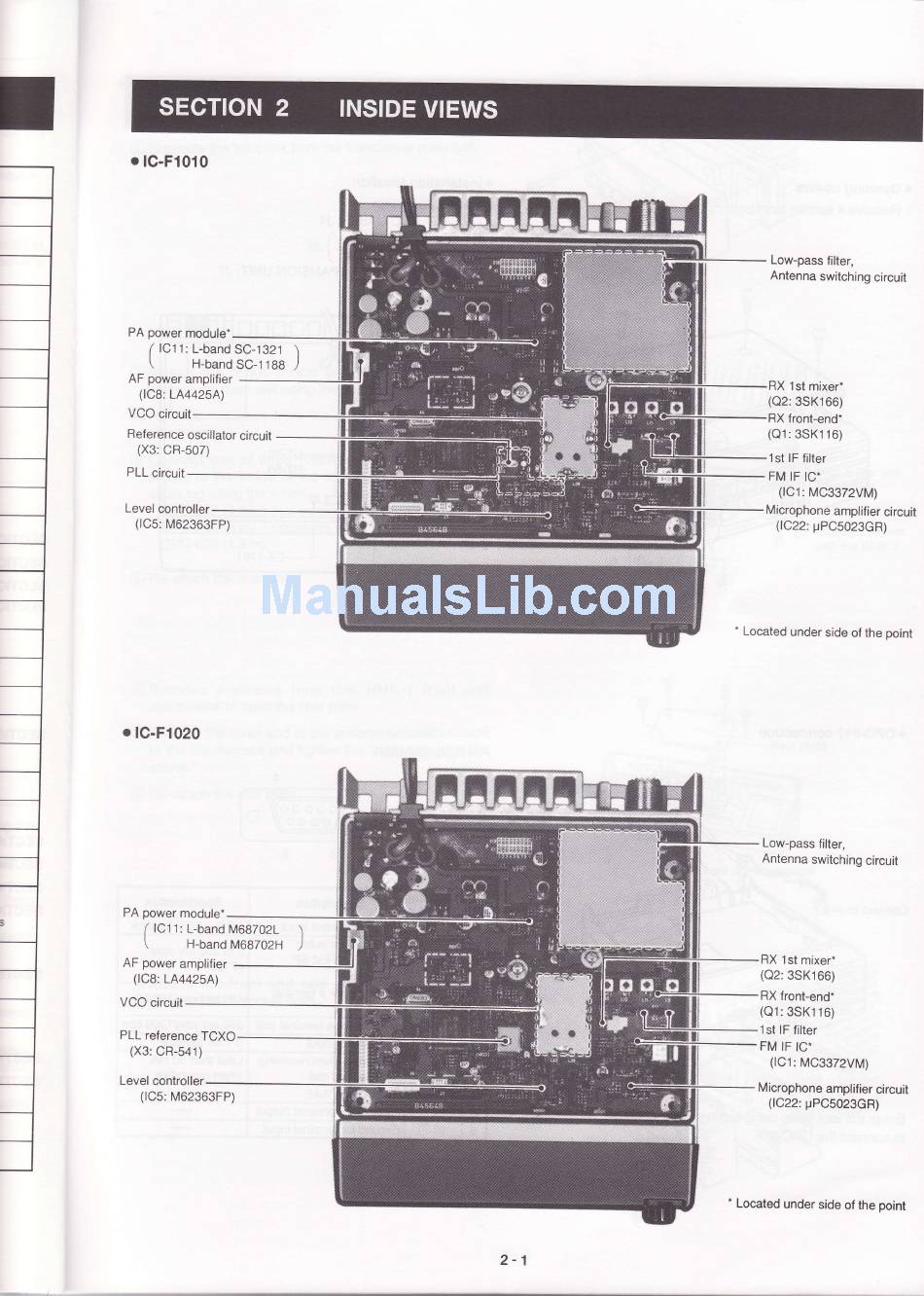

Inside Views - Icom IC-F1010 Service Manual

o lc-Fl010
PA power module-
AF power amplifier
(lC8:LA4425A)
VCO circuil
Reference oscillator circuit
(X3: CR-507)
PLL circuit
Level controller
(lC5: M62363FP)
. tc-F1020
PA power module*
AF power amplifier
(lC8:1A4425A)
VCO circuit
PLL reference TCXO
( X3 :C R- 5 4 1)
Level controller
( lC1 1: L-band SC-1321 )
\ H-band SC-1 188 /
I
lCl 1: L-band MOB702L '\
\ H-band M68702H )
Low-pass filter,
Antenna switching circuil
RX 1st mixer'
(Q2: 35K166)
RX front-end-
( Q1 : 3SK1 16)
1st lF filter
FM IF IC-
(lC1: MC3372VM)
Microphone amplifier circuit
(1C22: pPC5023GR)
- Located under side of the point
Low-pass filter,
Antenna switching circuit
RX 1st mixer'
(Q2: 3SK166)
RX front-end'
(Q1 : 3 S K 1 1 6)
1st lF filter
FM IF IC-
(lC1: MC3372VM)
Microphone amplif ier circuit
(1C22: pPC5023GR)
( lC5 : M6 2 363 FP)
2 -1
Located under side of the point
