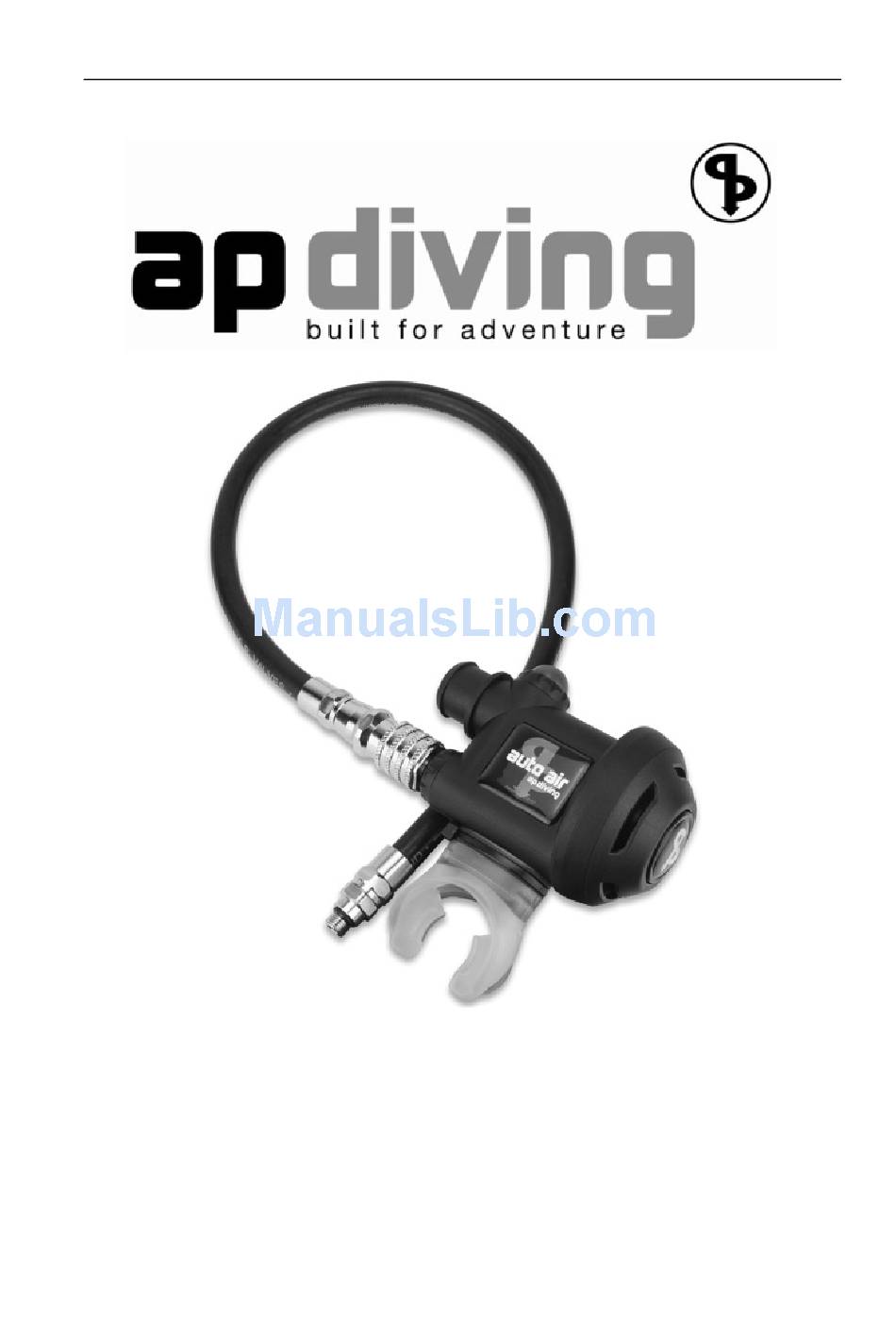

- Page 1 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual AP100 Auto Air and EV50 MP Hose Maintenance Manual Version 1.0 September 2014 Written by Tino de Rijk Page 1 of 42...
-
Page 2: Table Of Contents
3.3 Standard Tools needed ................12! 4. Disassembly Instructions ..............14 4.1 Remove the EV50 medium pressure hose from the AP100 Auto Air ... 14! 4.2 Unscrew diaphragm cap from main body ............. 14! 4.3 Remove skid disk and diaphragm ..............14! 4.4 Unscrew dump guard from main body ............ - Page 3 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.4 Refit poppet and spring into valve chamber ..........28! 6.5 Screw valve chamber with poppet and spring inside onto valve body ..28! 6.6 Push demand valve assembly into main Auto Air body ....... 29! 6.7 Screw demand valve retainer onto Auto Air body ........
-
Page 4: Introduction
EN250 (European breathing regulator standard) breathing performance. In an emergency the AP100 is simplicity itself - just put it in your mouth and breathe! Unlike other make octoinflators you do not have to find and press any buttons. The Auto Air will draw air from wherever it can: either from your main cylinder if there is gas remaining (in octopus mode) or from the bladder of the BCD itself (in jacket-breathing mode). - Page 5 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual (including the Internet) or machine-readable form without prior consent in writing from Ambient Pressure Diving Ltd. All products are sold on the strict understanding that only English Law applies in cases of warranty claims and product liability, regardless of where the equipment is purchased or used.
-
Page 6: Ap100 Auto Air Exploded Diagram And Parts List
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 2. AP100 Auto Air Exploded Diagram and Parts List 2.1 AP100 Auto Air Main Assembly NUMBER DESCRIPTION PART NUMBER QUANTITY Mouthpiece AP-16 Ty-rap AP-21 Buddy sticker AP-100-11... -
Page 7: Ap100 Auto Air Demand Valve Assembly
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual NUMBER DESCRIPTION PART NUMBER QUANTITY Plunger AP-100-15N Direct feed button cover AP-100-14 Cap retainer AP-100-13 Breathing module assembly AP-100-3 Dump guard AP-100-10 Diaphragm AP-100-5 Skid disk AP-100-6... -
Page 8: Ap100 Auto Air Breathing Module Assembly
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual NUMBER DESCRIPTION PART NUMBER QUANTITY Valve chamber AP-100-26 Lever AP-100-27 Washer AP-100-28 M3 nyloc locking nut AP-100-28A 2.3 AP100 Auto Air Breathing Module Assembly NUMBER DESCRIPTION PART NUMBER... -
Page 9: Ap100 Auto Air Ev50 Hose Assembly
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 2.4 AP100 Auto Air EV50 Hose Assembly NUMBER DESCRIPTION PART NUMBER QUANTITY O-ring BS-903-N70 3/8” UNF end AP-150-P4 Hose collar AP-150-P3 LP hose AP-150-C Coupling body RB-70-30... -
Page 10: Service Kit Contents
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 3. Service Kit Contents and Tools 3.1 Service Kit Contents WARNING: When replacing O-rings, next to the size, the hardness of the O-rings (declared in degrees Shore, and indicated by the suffixes N70 and N90) is ESSENTIAL for proper operation. - Page 11 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual Page 11 of 42...
-
Page 12: Special Tools Needed
3.3 Standard Tools needed Besides the special tools mentioned above, the following standard tools are needed: There are no special tools needed for servicing the AP100 Auto Air gas isolator. Normal tools needed are: 5.5 mm socket for removing/replacing the AP-100-28A M3 nut... - Page 13 WARNING: Do NOT use aggressive chemicals. They might damage the metal plating of the AP100 Auto Air. Use an ultrasonic cleaning bath with a suitable cleaning fluid. A very good cleaning fluid is Biox “O2” immersion fluid. See WWW.BIOXINT.COM for further information and distributors.
-
Page 14: Disassembly Instructions
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4. Disassembly Instructions 4.1 Remove the EV50 medium pressure hose from the AP100 Auto Air 4.2 Unscrew diaphragm cap from main body Unscrew anti-clockwise. 4.3 Remove skid disk and diaphragm... -
Page 15: Unscrew Dump Guard From Main Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.4 Unscrew dump guard from main body Unscrew anti-clockwise. 4.5 Remove breathing module assembly from main body Gently push the complete breathing module out of the main Auto Air body. -
Page 16: Remove Back End Washer And Back End Rubber From Breathing Module
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.6 Remove back end washer and back end rubber from breathing module Squeeze the end of the stem together and pull off the back end washer. Pull the white back end rubber from the stem. -
Page 17: Unscrew Feed Insert From Body Using Wide Screwdriver
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.8 Unscrew feed insert from body using wide screwdriver Unscrew anti-clockwise. After unscrewing remove mesh filter and O-ring from the base of the feed insert. 4.9 Unscrew Schraeder valve from feed insert using AP50E tool Unscrew anti-clockwise. -
Page 18: Unscrew Demand Valve Retainer
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.11 Unscrew demand valve retainer Unscrew anti-clockwise. 4.12 Pull out demand valve assembly Page 18 of 42... -
Page 19: Unscrew Valve Chamber With Poppet And Spring From Valve Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.13 Unscrew valve chamber with poppet and spring from valve body Unscrew anti-clockwise. 4.14 Remove washer, poppet and spring from valve chamber Unscrew M3 nyloc locking nut anti-clockwise. -
Page 20: Unscrew Valve Seat Using Aptool4 Tool
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.16 Unscrew valve seat using APTOOL4 tool Unscrew anti-clockwise. Remove two O-rings from valve body and one from valve seat. 4.17 Optionally remove mouthpiece from main body When cutting the retaining ty-rap, make sure not to damage the mouthpiece. - Page 21 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual This completes the disassembly of the AP100 Auto Air See below for an overview of all disassembled parts. Page 21 of 42...
-
Page 22: Unscrew Valve Sleeve From Coupling Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual EV50 Medium Pressure (MP) hose disassembly 4.18 Unscrew valve sleeve from coupling body Use a 20 mm (on the valve sleeve) and 22 mm wrench (on the coupling body). -
Page 23: Remove Spring, Sliding Collar And 4 Ball Bearings From Valve Sleeve
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.20 Remove spring, sliding collar and 4 ball bearings from valve sleeve Take special care not to lose the 4 ball bearings during this action. Tip: perform this action above a plastic tray to catch dropping ball bearings. -
Page 24: Remove Guide Washer And O-Ring From Valve Sleeve
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 4.22 Remove guide washer and O-ring from valve sleeve 4.23 Remove O-ring from valve float Press down on funnel seat to expose O-ring. Make sure the spring doesn’t jump away. -
Page 25: Clean And Replace Service Parts
The use of rubber gloves while re-assembling the AP100 Auto Air is mandatory if the GC3 is to be kept in oxygen service. This is to avoid rendering the AP100 Auto Air unclean due to human touch (skin oils, sweat). -
Page 26: Ultrasonically Clean Deposits From All Metal Parts
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual AP100D - Auto Air Mouthpiece and Cable Tie Assembly contents: Quantity Silicon Mouthpiece AP-16 Ty-rap AP-21 AP100E - Auto Air Exhaust Diaphragm Kit contents: Quantity Button AP-100-31... -
Page 27: Optionally Fit New Mouthpiece
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6. Assembly Instructions WARNING: When assembling the AP100 Auto Air, use rubber gloves to avoid polluting it while assembling, rendering it not oxygen-clean anymore. 6.1 Optionally fit new mouthpiece If the mouthpiece was damaged or worn out in any way, replace it. -
Page 28: Fit New Poppet Seal
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.3 Fit new poppet seal 6.4 Refit poppet and spring into valve chamber Put the spring on the poppet and push the poppet through the opening of the white valve chamber. -
Page 29: Push Demand Valve Assembly Into Main Auto Air Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual Make sure that the flat side of the plastic valve chamber aligns with one of the flat sides of the valve body: If not properly aligned, in the next step the assembly will not slide into the main Auto Air body, which also has an internal flat side. -
Page 30: Screw Demand Valve Retainer Onto Auto Air Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual Notice the flat part on the inside of the tube: this should match the flat side of the valve assembly. 6.7 Screw demand valve retainer onto Auto Air body 6.8 Refit and tighten lever... -
Page 31: Screw Schraeder Valve Into Feed Insert Using Ap50E Tool
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.9 Screw Schraeder valve into feed insert using AP50E tool Screw clockwise, all the way in. 6.10 Screw feed insert into Auto Air body using a wide screwdriver Fit new mesh filter and O-ring onto feed insert and screw it into the main body. -
Page 32: Refit Direct Feed Plunger, Button Cover And Screw Cap Retainer
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.11 Refit direct feed plunger, button cover and screw cap retainer 6.12 Refit new back end rubber and back end washer onto breathing module Page 32 of 42... - Page 33 Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual Fit spring onto stem assembly. Push stem assembly through breathing module body. Fit a new white back end rubber onto the stem, chamfered side facing towards the module body.
-
Page 34: Refit Breathing Module Assembly Into Auto Air Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.13 Refit breathing module assembly into Auto Air body Fit a new O-ring onto the breathing module body. Carefully and slowly insert the breathing module into the main Auto Air body. -
Page 35: Screw Dump Guard Onto Auto Air Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual WRONG: Legs of breathing module CORRECT: Legs of breathing module are NOT facing diaphragm and hose are pointing towards diaphragm and hose 6.14 Screw dump guard onto Auto Air body Screw dump guard clockwise only main body. -
Page 36: Refit Skid Disk, Diaphragm And Diaphragm Cap
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.15 Refit skid disk, diaphragm and diaphragm cap First fit the diaphragm, taking care that its skirt hangs all the way (360 degrees) over the rim (the non-threaded top part) of the main body. -
Page 37: Fit New Moulded Washer Into Coupling Body
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual EV50 hose assembly 6.16 Fit new moulded washer into coupling body Make sure the new washer sits in its proper groove on the bottom of the coupling body, under the threads. -
Page 38: Fit Guide Washer And New O-Ring Into Valve Sleeve
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.18 Fit guide washer and new O-ring into valve sleeve Make sure the guide washer is inserted with its curved side facing the hose inlet, i.e. in the direction of the ball bearing holes. -
Page 39: Put The 4 Ball Bearings Back Into Valve Sleeve
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.20 Put the 4 ball bearings back into valve sleeve Take special care not to lose the 4 ball bearings during this action. Tip: perform this action above a plastic tray to catch dropping ball bearings. -
Page 40: Put Spring Back Into Sliding Collar Onto Valve Sleeve
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.22 Put spring back into sliding collar onto valve sleeve If the spring does not slide in well, you probably put the sliding collar the wrong way up in the previous step. -
Page 41: Test Spring Operation And Hose Sealing By Pushing Complete Hose On And Off The Auto Air Unit
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 6.24 Test spring operation and hose sealing by pushing complete hose on and off the Auto Air unit If assembled correctly, the sliding collar should jump forward while pushing / sliding it onto the attaching it to the demand valve stem of the Auto Air. -
Page 42: Testing Instructions
Ambient Pressure Diving Ltd. AP100 Auto Air and EV50 MP hose Maintenance Manual 7. Testing Instructions 7.1 Test for leaks and proper operation 1. With the MP hose unconnected, close up both the MP inlet and big BCD/wing inlet with your fingers and try to breath in through the mouthpiece: no air should come in.
