Summary of Contents for AP Diving RB111

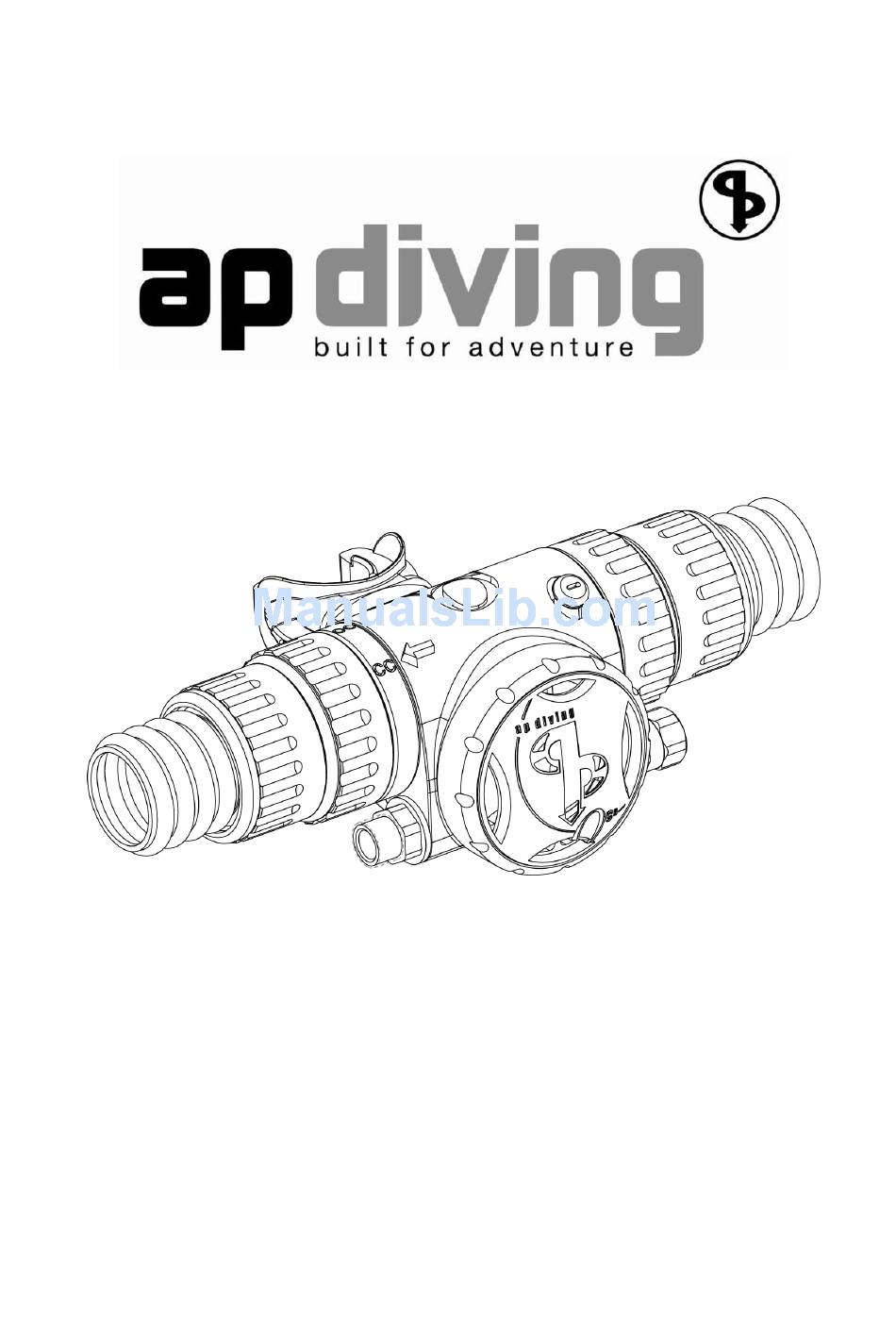

- Page 1 Open Circuit Bailout Mouthpiece User Instruction Manual Issue 6...
-
Page 2: Table Of Contents
Post Dive ......................16 Maintenance Schedule ..................17 Service and Repair ..................18 RB110 Main Assembly ..................19 RB111 Dual Valve Assembly ................20 RB112 Front Cover Assembly ................. 21 Warranty Information ..................22 P a g e A P D i v i n g O p e n C i r c u i t B a i l o u t... -
Page 3: Copyright Notice
Copyright Notice This instruction manual is copyrighted, all rights reserved. It may not, in whole or part be copied, photocopied, reproduced, translated to any electronic medium or machine readable form without prior consent from Ambient Pressure Diving Ltd. ©2008 - 2017 Ambient Pressure Diving Ltd. OCB Instruction Manual Please read the instructions in this manual carefully before using the Open Circuit Bailout (OCB) mouthpiece. -
Page 4: General Precautions And Warnings
General Precautions and Warnings Before using this OCB mouthpiece, you must receive instruction and certification in diving rebreathers from a recognised training agency. Use of this OCB by uncertified or untrained persons is dangerous and can result in injury or death. It is very easy to configure the OCB and/or use it in an unsafe manner. -
Page 5: Introduction
Introduction Thank you for choosing an Ambient Pressure Diving product. This OCB mouthpiece has been designed and manufactured with pride under a Lloyds Quality Assured BS EN ISO 9001 quality management system. This OCB mouthpiece is covered by Ambient Pressure Diving’s 2 year warranty against defects in materials or workmanship. -
Page 6: Two Modes
Two Modes The OCB Mouthpiece has 2 Modes: 1. CC. Closed Circuit rebreather diving position. 2. OC. Open Circuit diving position. This is the BAIL-OUT mode. REBREATHER OPEN CIRCUIT The two modes are selected by rotating the lever forwards or backwards, which in turn rotates the internal components within the main body. -
Page 7: The Dual Valve
The Dual Valve LEFT RIGHT The OCB Mouthpiece utilises ‘AP’s new patented Dual Valve Technology. This new demand valve enables the diver to quickly and easily change the medium pressure (7 to 14 bar) supply hose routing from left hand to right hand, without the need for major disassembly, adjustment or any special tools. -
Page 8: Initial Configuration
Learn how to shorten AP Diving hoses with re-useable end fittings by following the links below: http://www.apdiving.com/en/rebreathers/resources/manuals/ http://www.apdiving.com/en/rebreathers/resources/videos/... -
Page 9: Preparation And Setup
Preparation and Setup Careful consideration needs to be given to your intended use and purpose for this product as this will greatly affect the setup and configuration. a. Gas volumes available, particularly at depth, need to be considered and be adequate for the intended use. - Page 10 Preparation and Setup Cont… It is recommended that you DO NOT fit an isolation valve, such as a flow- stop slide valve, between the 1 stage and the OCB for three reasons: 1. If you do fit one and dive with it closed, the diaphragm will be catastrophically damaged as you descend.
-
Page 11: Pre-Dive Inspection Check List
PRE-DIVE INSPECTION check list It is essential to perform a complete pre-dive inspection of your OCB mouthpiece before every dive. NEVER dive with any diving equipment that shows signs of damage, debris, loose connections or unsatisfactory performance. As this valve has 2 modes, OC and CC, both modes must be checked prior to diving as well as the switch-over. - Page 12 PRE-DIVE INSPECTION check list Cont… Therefore, when blowing into the right hand side hose connector the non- return valve will close and it should open when air is sucked from the connector. The non-return valve on the other end of the mouthpiece inner tube should close when air is sucked from the left hand connector and open when air is blown into the connector.
- Page 13 PRE-DIVE INSPECTION check list Cont… 12. Check to ensure that the submersible pressure gauge is displaying zero pressure. If the system is depressurised and the gauge indicates a pressure, the gauge must be replaced before diving. 13. SLOWLY open the cylinder valve to pressurise the OCB mouthpiece. Continue to open the valve anti-clock-wise until the valve is fully open.
-
Page 14: Diving With Nitrox
Diving With Nitrox Your OCB mouthpiece has been prepared for use with 100% oxygen. This is possible because each OCB is built to a high standard of cleanliness using oxygen compatible components and lubricants. In addition, each OCB mouthpiece has passed stringent adiabatic compression testing to ensure its safety and compatibility with increased percentages of oxygen. -
Page 15: Cold Water Diving
Cold Water Diving The C.E.N. standards define cold water as 10°C or lower. In such conditions, particularly in fresh water, which has a higher freezing point and more severe thermoclines, there is a risk of freeze-up resulting in free flow and a rapid loss of gas. -
Page 16: Post Dive
Post Dive It is important to provide the proper preventative maintenance in order to ensure the best possible performance and maximum life of your OCB mouthpiece. The following maintenance procedures should be performed routinely after each use to ensure that the OCB mouthpiece is cleaned, inspected, and prepared for the next use or for storage: 1. -
Page 17: Maintenance Schedule
Maintenance Schedule To keep the OCB Mouthpiece running smoothly and efficiently it is imperative to thoroughly wash and dry the unit after each dive as described on page 18. The OCB mouthpiece also requires periodic dis-assembly and re-greasing of O rings 1,2 and 3, shown in the diagram below. -
Page 18: Service And Repair
Service and Repair Dealer Service & Repair It cannot be assumed that any diving equipment is in good working order on the basis that it has received little use since it was last serviced. Remember that prolonged or improper storage can still result in internal corrosion and/or deterioration of O-ring seals. -
Page 19: Rb110 Main Assembly
RB110 Main Assembly Part No. Description AP300 Inflator Hose Assembly RB111 Dual Valve Assembly RB112 Front Cover Assembly RB114/1 Location Screw RB116 Inner RB02/04 One Way Valve Holder RH RB02/03 One Way Valve Holder LH BS.010 O Ring Seal BS.029 One Way Holder Seal BS.125... -
Page 20: Rb111 Dual Valve Assembly
RB111 Dual Valve Assembly Part No. Description APV100/23 Silicone Valve Seat BS.2.6x1 O Ring BS.010 O Ring BS.14.5x2.5 O Ring RB111/1 Valve Body RB111/10 Plunger 9/16” Blanking Plug RB111/11 RB111/12 Lever Foot Insert RB111/2 Counter Balance Piston RB111/3 Counter Balance Cylinder... -
Page 21: Rb112 Front Cover Assembly
RB112 Front Cover Assembly Part No. Description RB112/6 Diaphragm Lever Pad RB112/1 Locking Ring RB112/5 Diaphragm RB112/3 Skid Disk RB112/4 Exhaust Diaphragm Rb112/2 Rubber Cover P a g e | 21... -
Page 22: Warranty Information
Warranty Information The OCB Mouthpiece is warranted for the first owner for 24 months from the date of purchase. Conditions: All warranty work must be authorised by Ambient Pressure Diving. Before returning the apparatus for any reason, please contact the factory for advice. If it is deemed that a factory repair is required the product should be returned, postage and insurance paid, with a copy of the purchase receipt, directly to the factory or the Country distributor (see website www.apdiving.com). - Page 23 P a g e | 23...
- Page 24 Designed and Manufactured in the UK by: Ambient Pressure Diving Ltd Unit 2C, Water-ma-Trout Industrial Estate, Helston, Cornwall. TR13 0LW. Telephone: +44 (0)1326 563834 FAX: +44 (0)1326 573605 www.apdiving.com For spares and accessories visit: www.apdiving.com 24 | P a g e A P D i v i n g O p e n C i r c u i t B a i l o u t...
