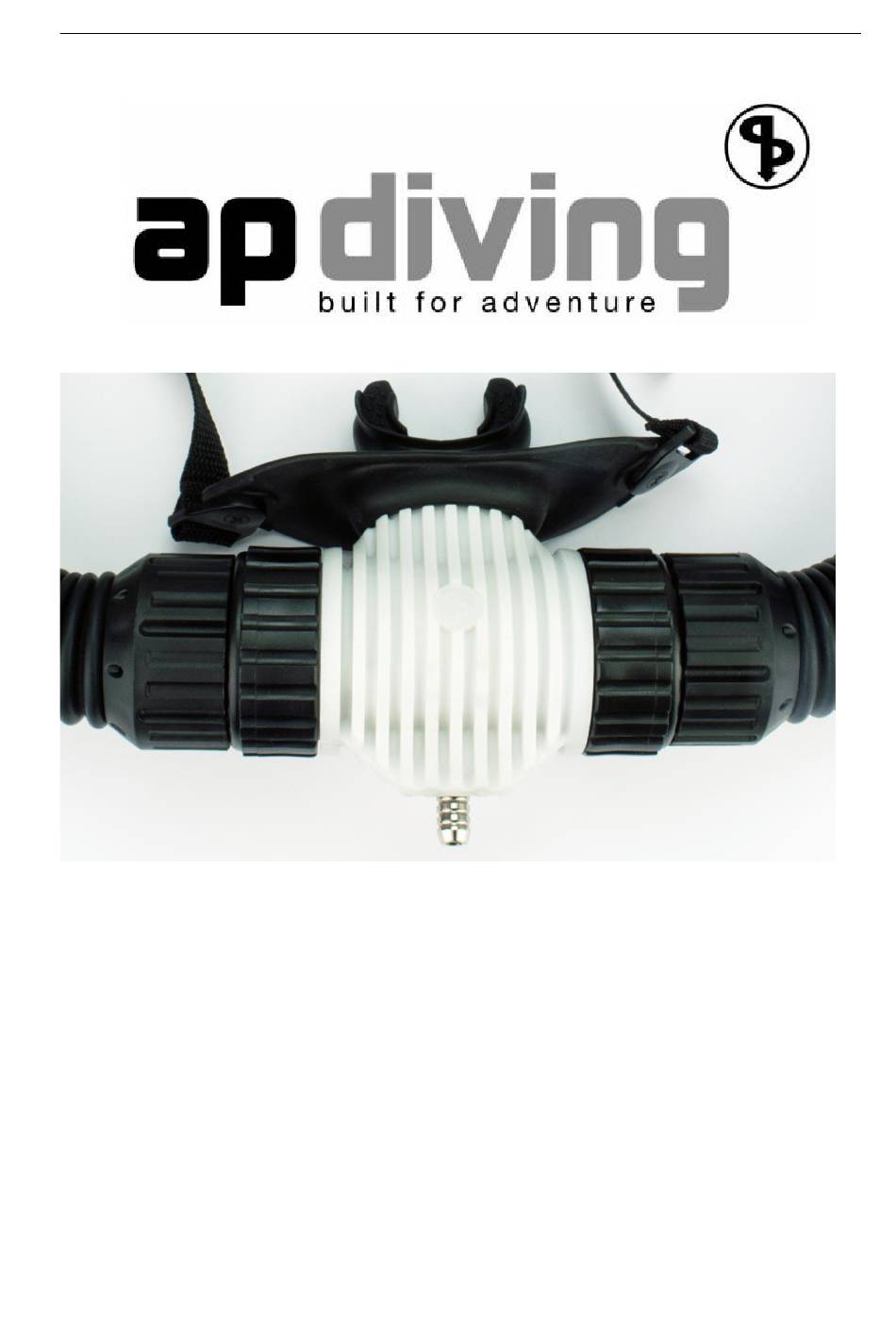

- Page 1 AP Diving AP Rebreather Mouthpiece Instruction Manual AP Rebreather Mouthpiece (“DSV, dive/surface valve”) (“open/closed mouthpiece valve”) (“standard mouthpiece”) User Instruction Manual March 2023...
-
Page 2: Table Of Contents
AP Diving AP Rebreather Mouthpiece Instruction Manual Contents Quick Look: ................ 3 General Precautions and Warnings ......... 4 Introduction ................ 4 Risks against which the PPE is intended to protect ..4 Limitations ................4 Functional description ............4 Features ................5 Product Operation ............. -
Page 3: Quick Look
AP Diving AP Rebreather Mouthpiece Instruction Manual Quick Look: Installation note: When fitting your own convoluted hoses to the new mouthpiece, ensure the hose locking nuts are securely hand-tightened to the mouthpiece, the self-tapping pozidrive screws are no longer required. -
Page 4: General Precautions And Warnings
The RB160 AP Rebreather Mouthpiece is a respiratory protective device intended for diving purposes only. It must be used in conjunction with an AP Diving closed circuit rebreather, the Inspiration XPD, EVP or EVO. The whole rebreather assembly including the Mouthpiece, makes it possible to supply the user with a breathable gaseous mixture under foreseeable conditions of use, whilst taking account to the maximum depth of immersion. -
Page 5: Features
Product Operation The mouthpiece is designed specifically for the AP Diving range of rebreathers which have a left to right (of the user) gas direction. - Page 6 AP Diving AP Rebreather Mouthpiece Instruction Manual Warning: The R160 rebreather mouthpiece is only suitable for left to right (of the user) gas direction. If inserted the wrong way, the non-return valves will leak as the upstream surfaces are designed for improved flow, they are not designed to seal.
-
Page 7: Initial Configuration
O ring groove in the stem and lubricate with silicone grease. Be careful not to scratch any surfaces. 3. Now screw your convoluted hoses onto your new RB160 AP Rebreather Mouthpiece, ensuring the blue insert end of the mouthpiece is connected to your inhale hose (RB07/03), i.e. -
Page 8: Post Dive
The HUD clip comes in three sizes which are supplied with every rebreather and replacements (RB/HUDHOLDER/SK) are readily available from the AP Diving website. Post Dive... -
Page 9: Maintenance Schedule
7. Do not use silicone lubricant on the one-way valves. 8. Periodically, usually weekly, disinfect the mouthpiece and convoluted hoses using an appropriate disinfectant such as Chemgene from AP Diving, following the instructions for dilution. Thoroughly rinse in clean fresh-water and dry before use. -
Page 10: Warranty
Factory Service and Repair When your Mouthpiece requires annual service take it or send it, postage paid, to the factory or an authorised AP Diving dealer. For help in finding a dealer in your area, please contact your local distributor. - Page 11 AP Diving AP Rebreather Mouthpiece Instruction Manual...
- Page 12 AP Diving AP Rebreather Mouthpiece Instruction Manual CONTACT INFORMATION (UK): 01326 56 10 40 (outside UK): 0044 1326 56 10 40 info@apdiving.com UK & worldwide: www.apdiving.com www.apdiving.eu USA: www.silentdiving.com AP Diving Water-ma-Trout Ind. Est. Helston, Cornwall, UK TR13 0LW...
