SEGATRICE A NASTRO
BAND-SAW MACHINE
BANDSÄGEMASCHINE
SCIE A RUBAN
SIERRA DE CINTA
SERRA DE FITA
ISTRUZIONI PER L'USO E MANUTENZIONE
INSTRUCTIONS FOR USE AND MAINTENANCE
GEBRAUCHSANLEITUNGEN UND WARTUNG
MODE D'EMPLOI ET ENTRETIEN
INSTRUCCIONES PARA EL USO Y MANUTENCION
INSTRUÇÕES DE UTILIZAÇÃO
www.femi.it
Art.
NG 120
CERTIFICATA
CERTIFIED
GEPRÜFT
CERTIFIE
CERTIFICADA
CERTIFICADA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Femi NG 120
Summary of Contents for Femi NG 120
- Page 1 SEGATRICE A NASTRO BAND-SAW MACHINE BANDSÄGEMASCHINE SCIE A RUBAN SIERRA DE CINTA SERRA DE FITA Art. NG 120 CERTIFICATA CERTIFIED GEPRÜFT CERTIFIE CERTIFICADA CERTIFICADA ISTRUZIONI PER L’USO E MANUTENZIONE INSTRUCTIONS FOR USE AND MAINTENANCE GEBRAUCHSANLEITUNGEN UND WARTUNG MODE D’EMPLOI ET ENTRETIEN INSTRUCCIONES PARA EL USO Y MANUTENCION INSTRUÇÕES DE UTILIZAÇÃO...
- Page 2 Dichiara che la: SEGATRICE A NASTRO NG120 è conforme alle disposizioni contenute nelle Direttive: CEE 98/37 - 89/336 - 73/23 COMPLIANCE DECLARATION CE OF THE BUILDER FEMI S.p.A. Via del Lavoro, 4 - 40023 Castel Guelfo (BO) - ITALIA Tel. +39-0542-670160 - Fax +39-0542-670185 - http://www.femi.it...
-
Page 3: Table Of Contents
INTRODUCTION TO USE ........7 SYMBOLS PLACED IN CORRESPONDANCE WITH USAGE POINTS 2 INSTALLATION ............8 Never underestimate the warnings “ATTENTION - CAUTION” given in this manual. In order to draw the user’s attention and to preserve safety, 3 ADJUSTMENT ............9 hazardous operation are preceded by symbols and notes that point out the danger and explain how to behave to 4 USE ................ -
Page 4: Installation

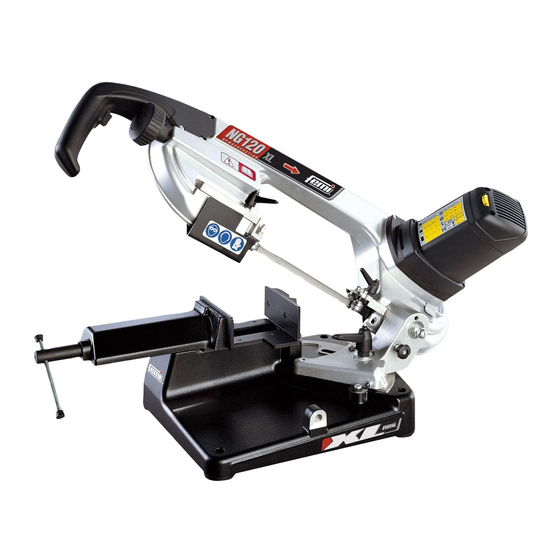

STANDARD SAFETY PROCEDURS DESCRIPTION OF THE MACHINE (Fig. 1) - Do not use the machine in very damp places or in the The belt sawing machine consists of two basic parts: the presence of inflammable liquids or gases. machine body 5 complete with motor and drive 7 which is - Do not use it in the open air when general weather and integrated into lower part, consisting of the clamp 11, the environmental conditions are unfavourable (eg. -
Page 5: Adjustment
POSITION/WORK STATION (Fig.3) ADJUSTING (Fig. 4-5-6-7-8) Place the machine on a sufficiently flat workbench so that the machine has the better possible stability. TENSION OF THE BLADE (Fig.4) In respect of ergonomic criteria during cutting operations, ATTENTION: The machine is fitted with a blade- the workbench must be positioned at such a height that the tightening device that limits tension... - Page 6 BEARINGS BLADE GUIDE (Fig.9) Now begin to apply gradual pressure on the part and complete the cut. The blade-guide on the outside of the sawing machine are eccentric and adjustable so as to simplify blade replacement ATTENTION: Always release button A between and to keep it guided as its best.
-
Page 7: Accessories
CUTTING CAPACITY (Fig.10) CUTTING TABLE The table below specifies the cutting capacity at 0, 45 and 60 degrees which may be obtained in normal conditions of use described in this manual and without placing any other object between the jaws of the clamp. SECTION ANGLE CUTTING... -
Page 8: Troubleshooting
DISPOSAL OF THE MACHINE, PACKING ASSISTENCE At the end of the machine life, if the Should it be necessary to call qualified personnel for machine must be scraped, contact operations of extraordinary maintenance, or in the case of an authorised waste disposal centre repairs, under guarantee or at a later date, you should in order to comply with the Standards always contact an authorized service centre or the factory...
