GAS CONNECTION

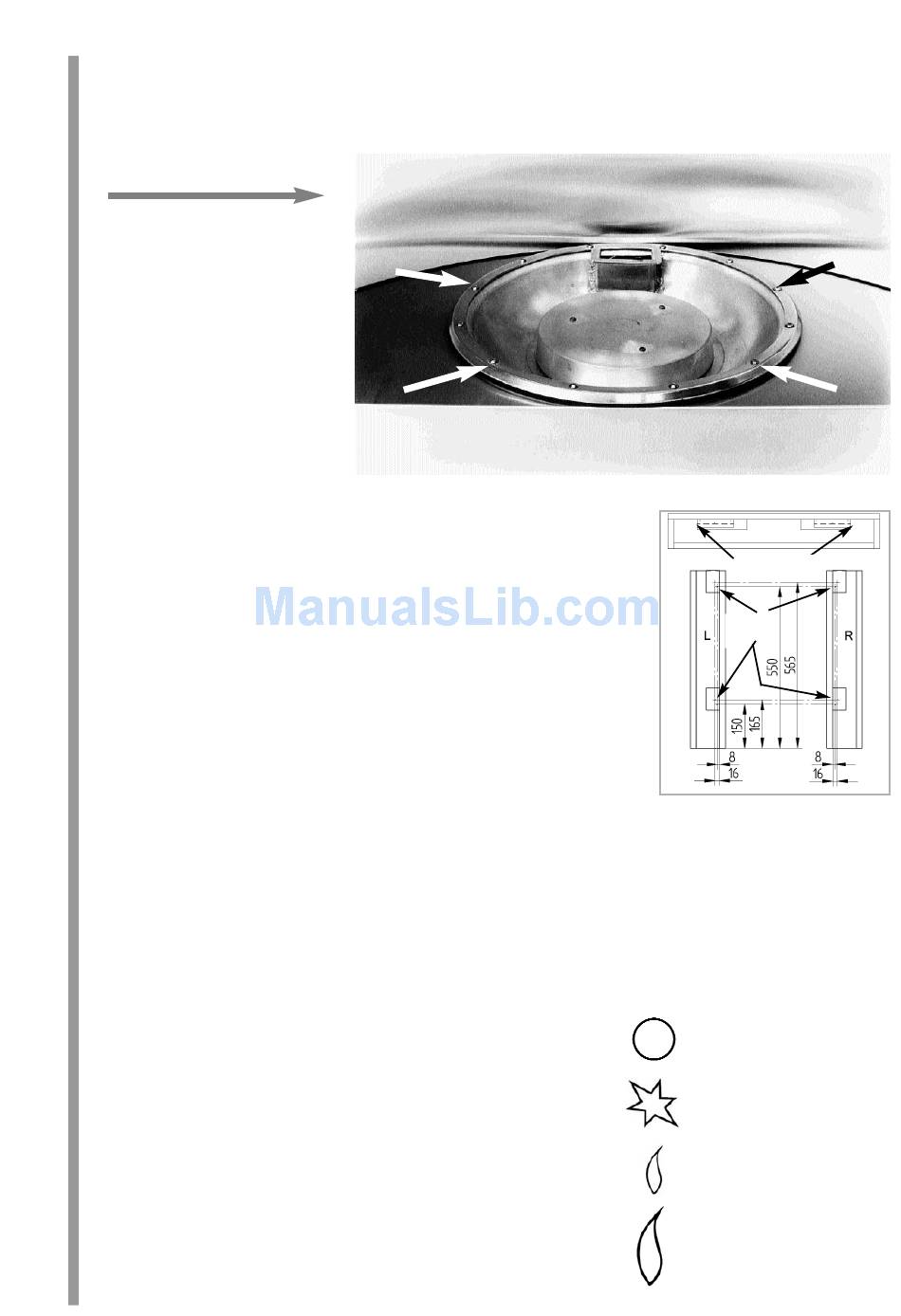

Place burner assembly into the firebox shelf as shown. Ensure that burner sits fully down into the round hole, and rim
of burner is in full contact with the shelf all the way round. Fix the burner to the firebox shelf in the four screw posi-
tions indicated, using the stainless
steel screws and allen key provided.
Purge the gas supply thoroughly to
remove air and dirt/debris B B E E F F O O R R E E
connection. Now connect the previ-
ously installed gas supply to the
control tap and tighten all joints.
Soundness test installation.
If using an across hearth connec-
tion, ensure the decorative fireframe
will clear the supply route.
FUEL BED LAYOUT
12.0
Please refer to the relevent section of the user manual section of this booklet.
13.0
FITTING THE MARBLE F F RAME
The appliance is supplied with a marble frame, supplied in three pieces. The frame
is held onto the firebox by six mounting brackets, which need to be screw to be
screwed to the wooden blocks on the rear of the marble frame in the locations
pictured. The brackets may be adjusted to provide a perfect fit. It is recomended
that the brackets be bent to approximately 40 degrees from the vertical position.
D D o o n n o o t t o o v v e e r r b b e e n n d d t t h h e e b b r r a a c c k k e e t t s s . .
Lift the frame into position on the front of the firebox, firstly the two 'legs' fol-
lowed by the 'header'. The plastic protective film may be removed from the fire-
box at this stage. Once in place the joins may be filled with the sealant provided.
This can be wiped clean and level with a damp sponge.
14.0
TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with current Approved Codes Of Practice
(ACOPs).
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the room
during this period, at least one hour.
14.1
OPERATING T T HE F F IRE
The control knob of the fire is marked as follows ;
The pilot is visible at the rear of the burner. Push in and turn the control
knob to the SPARK position, and hold there for a few seconds.
Continue turning anti-clockwise through the spark click, ensuring the pilot
has lit. If not, return the knob clockwise, and repeat.
When the pilot lights after the spark, keep the knob depressed for approx-
imately ten seconds. Now release the knob and the pilot should stay
alight. If not, retry ignition. If the pilot is extinguished during use, wait
three minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and con-
tinue turning anti-clockwise to the large flame position. The main burner
should light after a few seconds.
7 7
Butt up edges
Ø3 spot
holes
'OFF' position
'SPARK' position
'LOW' position
'HIGH' position
