APPLIANCE D D ATA
Gas Group
Inlet Pressure
Max Energy Input (gross)
Min Energy Input (gross)
Pilot Energy Input (gross)
Setting Pressure - High (cold)
Setting Pressure - High (hot)
Setting Pressure - Low (hot)
Main Injector Burner
Gas Inlet Connection
Ignition
Spark Gap
Weight
Please see Data Badge affixed to appliance for current data.
This a a pplianc c e i i s f f or u u se o o nly y w w ith t t he g g as t t y y pe, a a nd a a t t t he p p ressure s s tated o o n t t he a a pplianc c e
Data B B adge, a a nd i i s f f or d d ec c orative p p urposes.
3.0
INSTALLATION R R EQUIREMENTS
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be
present. The fire has been designed to fit into a pupose made builders' opening meeting certain dimensional
requirements.
'A'
The flue must have an effective height of at least three meters, as measured from the hearth to the top of the flue.
Any flue damper plates or restrictors should be removed and no other restriction fitted to the flue. Where removal
is not practical, the restriction must be fixed in the fully open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney
must be swept prior to appliance installation. The flue must be checked before installation by using a smoke pel-
let or similar to ensure proper draw and that leakage is not evident at any joints. Repair and re-test as necessary
before the appliance is installed.
Manual Control Versions
Log Version
G20 Natural Gas CAT I2H
20 mbar
6.8 kW
3.5 kW
166 W
16.25 mbar (+/- 0.75mbar)
16.5 mbar (+/- 0.75mbar)
5.5 mbar (+/- 0.5mbar)
Bray cat. 82/440
8mm compression
Integral Piezo spark
3.5 to 4.5mm
40 Kg
'B'
'C'
2
Glass and Pebble Version
G20 Natural Gas CAT I2H
20 mbar
6.8 kW
4 kW
166 W
*****mbar (+/- 0.75mbar)
*****mbar (+/- 0.75mbar)
*****mbar (+/- 0.5mbar)
Bray cat. 82/440
8mm compression
Integral Piezo spark
3.5 to 4.5mm
40 Kg

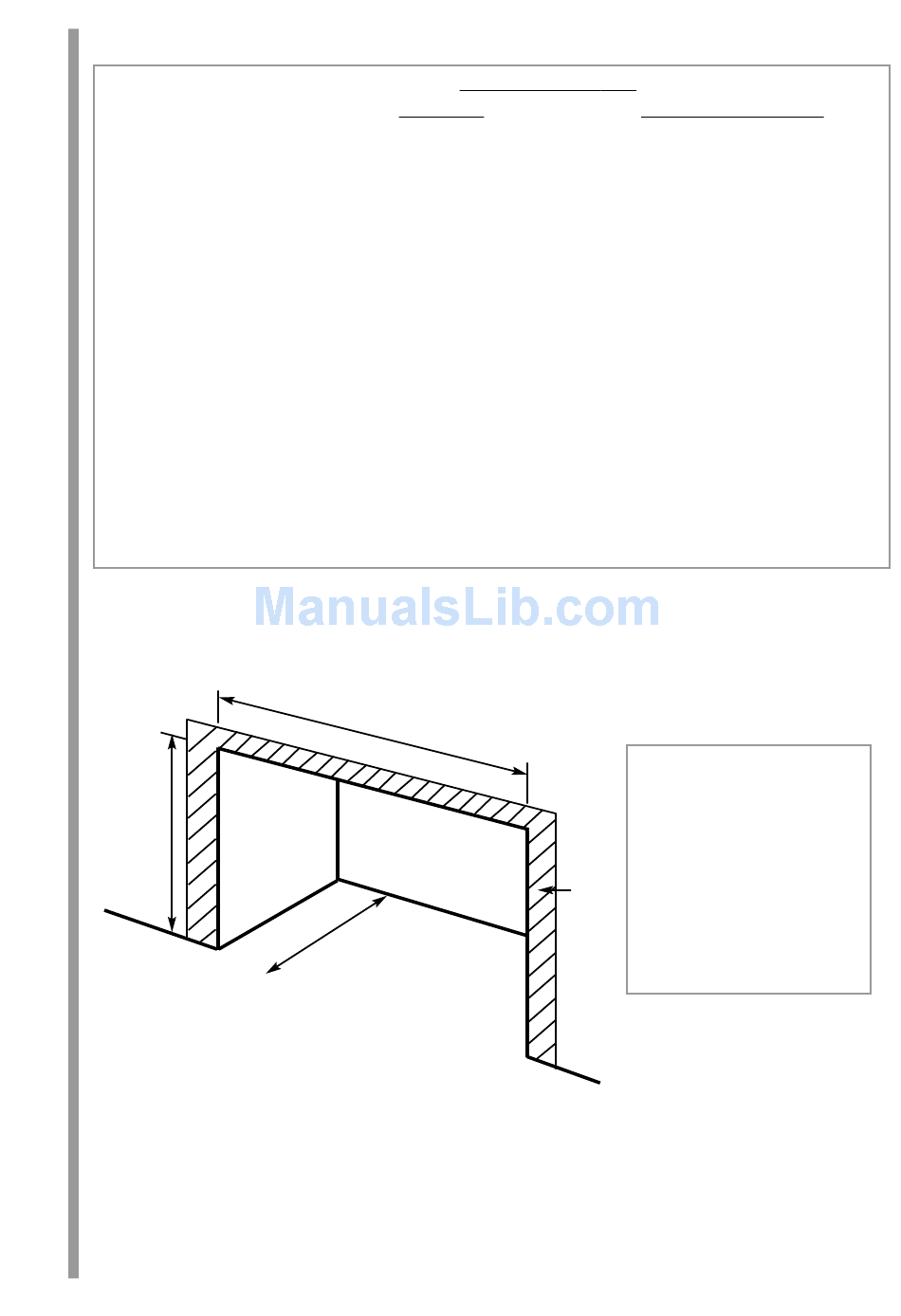

A. Opening height:
670mm Min. / 710mm Max.
B. Opening width:
785mm Min/865mm Max.
'D'
C. Opening depth: 350 mm Min.
D. This area must be flat and ver-
tical to ensure a good seal.
