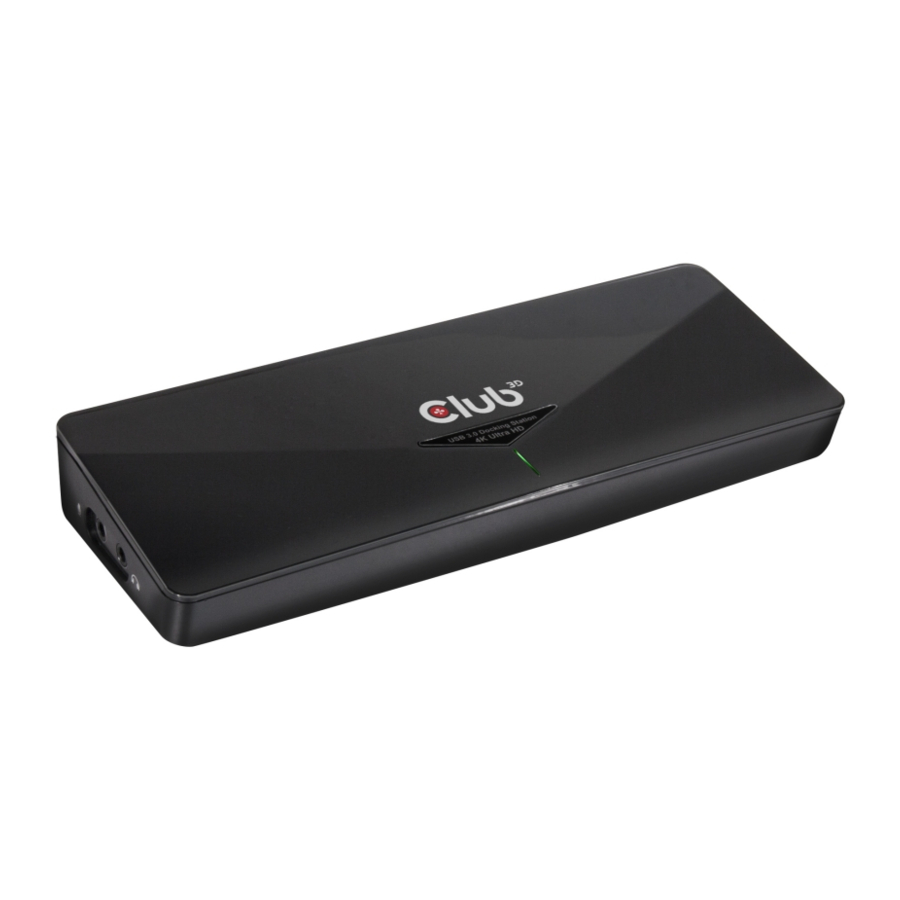

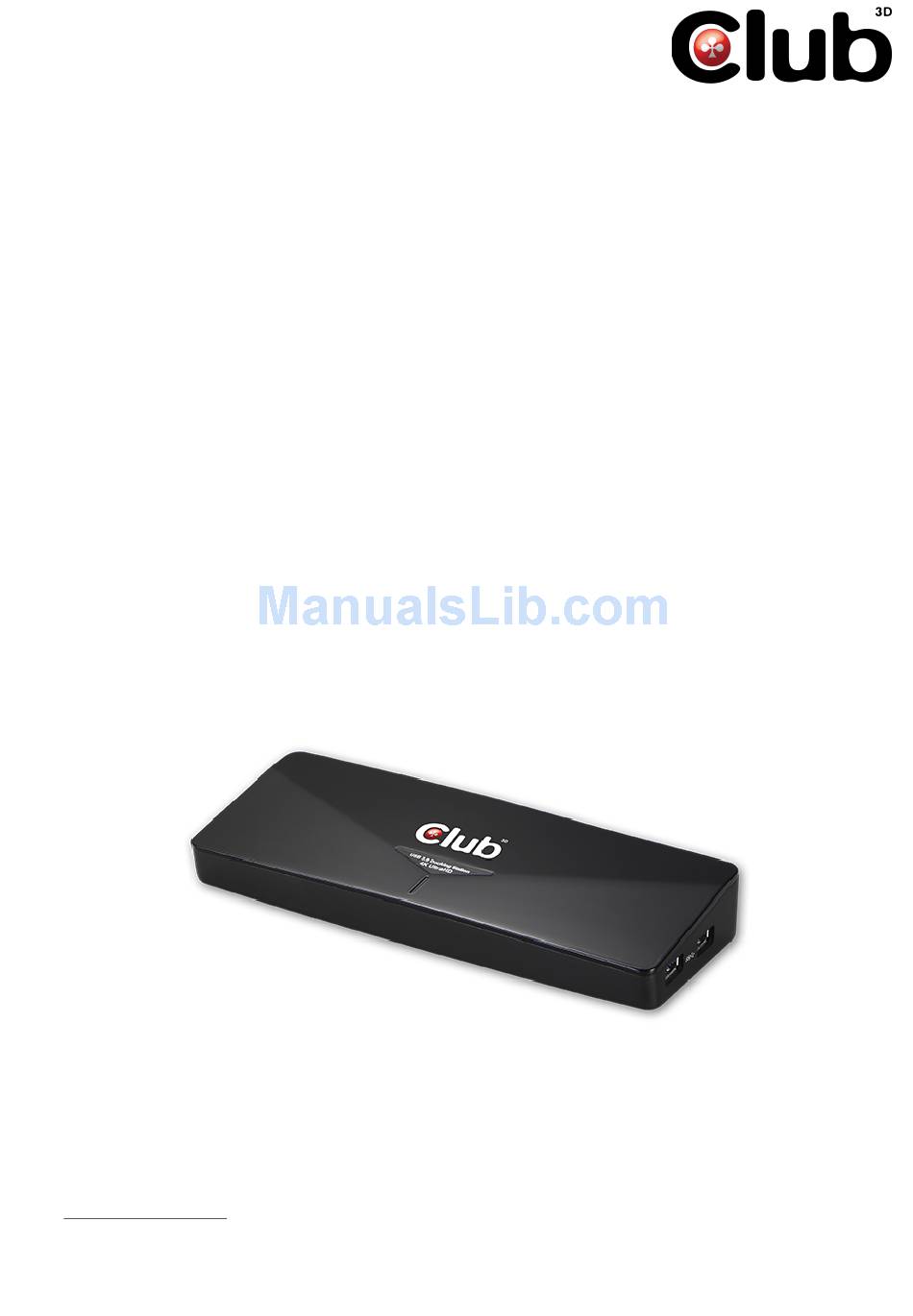

- Page 1 USB 3.0 4K Docking Station CSV-3103D USER’S MANUAL...
-
Page 2: Table Of Contents
Table of Contents SAFETY INSTRUCTIONS COPYRIGHT TRADEMARKS REGULATORY COMPLIANCE FCC CONDITIONS WEEE INFORMATION INTRODUCTION FEATURES PACKAGE CONTENTS SYSTEM REQUIREMENTS PRODUCT OVERVIEW FRONT REAR SPECIFICATION CONNECTION INSTALLATION VERIFYING THE INSTALLATION DISPLAY CONFIGURATION UTILITY SETTINGS DESCRIPTION OF THE SETTINGS MULTI-MONITOR CONFIGURATION EXTENDED MODE CURSOR DISAPPEARED VIDEO PLAYBACK IN EXTENDED MODE 21 MIRROR MODE... -
Page 3: Safety Instructions
Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety Instructions Always read the safety instructions carefully: •... -
Page 4: Regulatory Compliance
Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received and include interference that may cause undesired operation. -
Page 5: Introduction
Introduction The USB 3.0 3 to 2 4K Docking Station is designed for extra connectivity demands. With the docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, the speaker and the microphone through one single USB cable. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission between USB peripherals. -
Page 6: Features
Features • USB 3.0 downstream port x3 - Downward compatible with USB 2.0/1.1 - One USB port supports BC 1.2 charging • Display Port - DP/HDMI: resolution up to 3840x2160 pixels * - DVI: resolution up to 2048x1152 pixels • Support audio 2.1 channel •... -
Page 7: Product Overview
Product Overview Front ITEM DESCRIPTION 1 POWER LED INDICATE POWER ON/OFF 2 USB 3.0 PORT CONNECT TO USB 3.0 DEVICES Page... -
Page 8: Rear
Rear ITEM DESCRIPTION 3 POWER JACK CONNECT TO THE POWER ADAPTER 4 USB 3.0 PORT (TYPE B) CONNECT TO COMPUTER 5 DVI CONNECTOR CONNECT TO A DVI MONITOR 6 DISPLAYPORT™/HDMI™ CONNECTOR CONNECT TO A DISPLAYPORT™/HDMI™ MONITOR 7 RJ45 PORT CONNECT TO ETHERNET 8 USB 3.0 PORT CONNECT TO USB 3.0 DEVICES WITH BC 1.2 CHARGING... - Page 9 NOTE: The DP and HDMI connectors can only be used one at a time. Slide the lid in front of the two connectors to uncover the connector you want to use and connect it to the monitor. For example, to use the HDMI connector, slide the lid to the front of the DP connector to uncover the HDMI connector, and then connect it to the HDMI monitor.
-
Page 10: Specification
Specification CONNECTOR VIDEO OUTPUT DP/HDMI FEMALE CONNECTOR DVI FEMALE CONNECTOR HOST UPSTREAM LINK USB B TYPE FEMALE CONNECTOR HUB DOWNSTREAM LINK USB A TYPE FEMALE CONNECTOR (USB 3.0 x3, with BC1.2 x1) AUDIO PORT 3.5MM STEREO MINI-JACK ETHERNET PORT RJ45 CONNECTOR POWER DC POWER JACK VIDEO... -
Page 11: Connection
Connection To connect the USB peripherals, Ethernet, speaker and microphone, follow the illustrations below to connect the corresponding connectors. NOTE: The DP and HDMI connectors can only be used one at a time. Slide the lid in front of the two connectors to uncover the connector you want to use and connect it to the monitor. -
Page 12: Installation
Installation Caution: DO NOT connect the docking station to a computer before installing the provided driver. Note that the screenshots on this user's manual may vary slightly from each operating system. Windows® Windows® Windows® 1. Insert the provided CD into your disc drive. 2. - Page 13 NOTE: If the AutoPlay does not appear automatically, locate and double-click on the Setup.exe file in the driver folder to launch the setup. Enter the administrator password and then click Yes to start the installation if a User Account Control dialog box appears.
- Page 14 Be patient with the installation procedure. 5. Connect the Docking Station to a computer after the driver installation is completed. For connection details, refer to the chapter of Connection. 6. When the operating system detects the docking station, the reminder message will appear on the system tray.
-
Page 15: Verifying The Installation
Verifying the installation To verify the driver of the adapter, follow the step below. 1. Following the path to open the device manager. Windows® 7: Control Panel\ System and Security\ Systems\ Device manager Windows® Windows® 8.1: Settings\ Control Panel\ System and Security\ System\ Device manager 2. - Page 16 *Actual strings depend on your operating system. The screen shots are from Windows® 8 and might vary slightly for each operating system. NOTE: If you cannot find the driver in the list, the driver may not be properly installed. Please delete the item, unplug the adapter and repeat the installation steps.
-
Page 17: Display Configuration
Display configuration NOTE: The following screenshots in this section are using Windows® 7 operating system. It may not match your operating system but the definitions of buttons, tabs and menus are the same. Utility settings The supplied utility allows configuring the display mode, screen rotation, screen resolution, and physical arrangement of your monitors. -
Page 18: Description Of The Settings
Description of the settings OPTIONS DESCRIPTION DISPLAYLINK MANAGER ENABLE THE WINDOWS SCREEN RESOLUTION PAGE CHECK FOR UPDATES CHECK THE LATEST DRIVER AND DOWNLOAD IF AVAILABLE SCREEN RESOLUTION CLICK TO SELECT AN AVAILABLE RESOLUTION. NOTE THAT THIS FUNCTION IS INVALID IN MIRROR MODE, AS THE RESOLUTION IS DEFINED AS THE RESOLUTION OF THE PRIMARY MONITOR... - Page 19 OPTIONS DESCRIPTION MIRROR DUPLICATE THE PRIMARY MONITOR TO THE MONITOR WHICH CONNECTS WITH THE ADAPTER TURN OFF THE MONITOR FIT TO TV ADJUST THE SIZE OF WINDOWS DESKTOP ON THE TV NOTE: THIS FUNCTION WORKS ONLY WHEN ONE ADD-ON MONITOR IS CONNECTED. BESIDES, THIS OPTION WILL ALSO ONLY WORK IN EXTENDED MODE.
-
Page 20: Multi-Monitor Configuration
Multi-monitor configuration The DP, HDMI and DVI monitors can be connected through the Docking Station if monitors are already connected to the PC. Once extra monitors are connected, it can be configured to use either “mirror mode”, “extended mode” or be the primary display. NOTE: The DP and HDMI connectors can only be used one at a time. -
Page 21: Extended Mode
Extended mode 1. Refer to the Windows system configuration section to open the configuration page. 2. In the Display drop-down menu, select the preferred monitor. 3. Check the Multiple Displays > Extend these displays on Window® Window® Window® 8.1. 4. Click OK to confirm and close the settings screen. 5. -
Page 22: Cursor Disappeared
Cursor disappeared If the status remains in the extended mode but the adapter is disconnected, the desktop will still be panned to the add-on monitor. The cursor may not be found on the primary monitor in such a case. If it happens, connect the add-on monitor through the adapter again or keep moving the mouse. -
Page 23: Switch The Primary Monitor
Switch the primary monitor 1. Refer to the Windows system configuration section to open the configuration page. 2. In the Display drop-down menu, select the preferred monitor. 3. Check the box of Make this my main display on Window® 7, or Set as Main Monitor on Windows®... -
Page 24: Supported Resolution
Supported resolution Before adjusting the resolution, refer to the table below for the supported resolution. * Note that interlaced modes and reduced blanking modes are not supported. Page... -
Page 25: Audio Configuration
Audio configuration By default, when the docking station is connected to a computer, the audio configuration may be changed to USB (Multimedia) Audio Device automatically (this setting depends on models). If it does not work, follow the steps below to setup. Windows®... -
Page 26: Uninstall The Driver
Uninstall the driver 1. Follow the instructions to find the driver path, and then right-click on DisplayLink Graphics to uninstall the driver. Widnows® Control Panel > Programs > Programs and Features > Uninstall or change the program Widnows® Widnows® Settings > Control Panel > Programs > Uninstall a program 2. - Page 27 3. Click Yes to restart your computer. You can also disconnect the video connection now. Page...
-
Page 28: Technical Support
Technical Support Club 3D offers customers diversified products and complete sales services. We look forward to your comments to provide you with better service. If you have any technical or application issues about our products, please contact us through Club 3D support website: http://www.club-3d.com/index.php/support.en.html... - Page 29 USB 3.0 4K Docking Station CSV-3103D USER’S MANUAL Page...
