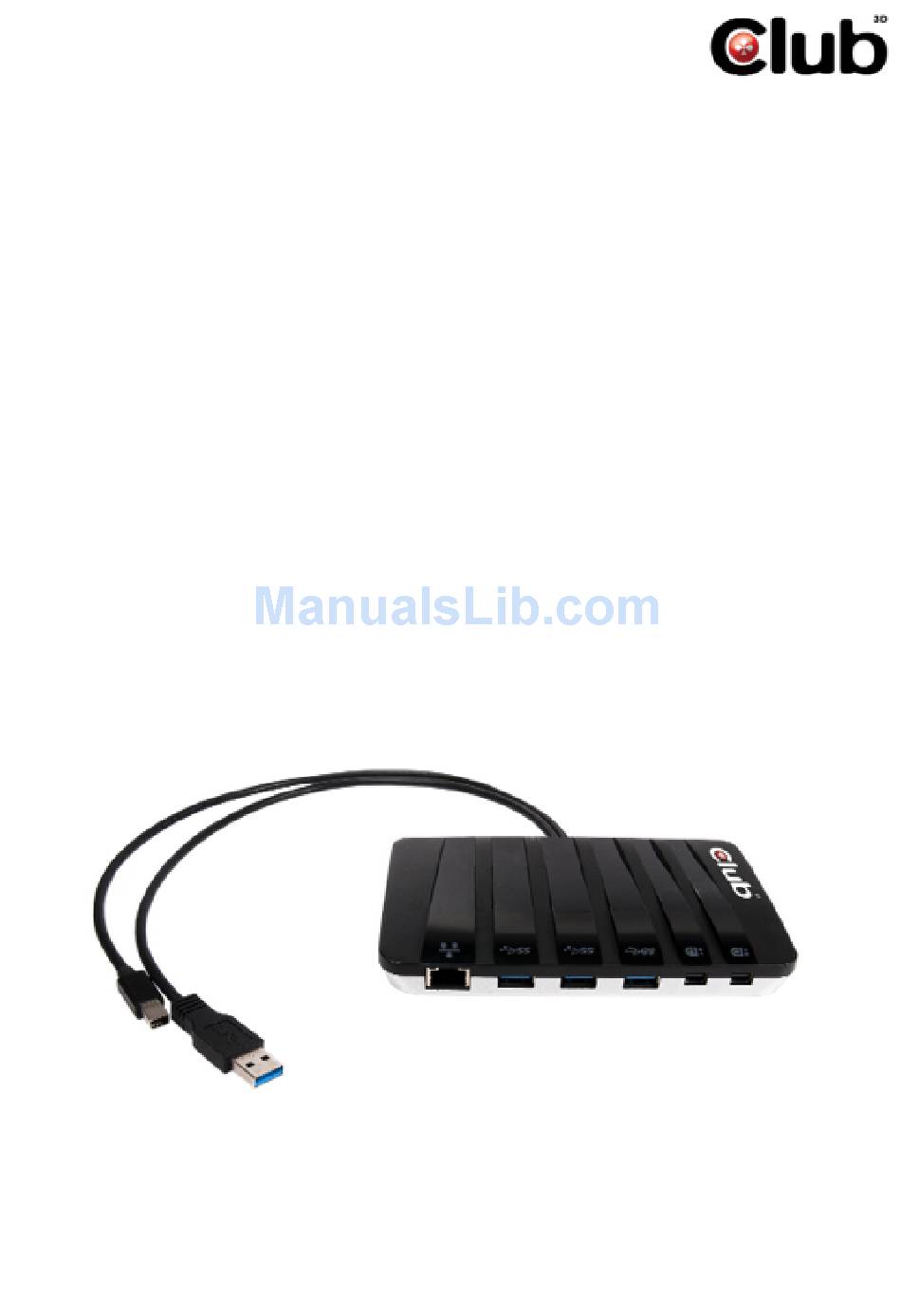

- Page 1 Y-Cabled Docking Station CSV-3203 Page...
- Page 2 Introduction Y-cable docking station utilises existing limited one USB 3.0 port and one mini DP output port on desktop or laptop through a Y-cable and a interface box to increase the number of USB3.0/mini DP port and add one GbE port for fitting the user applications, communication and interface demands of surrounding accessories.
- Page 3 Features Display Features • Interface One mini DP input cable (DP 1.2a compliant) Two mini DP output ports (DP 1.2a compliant) • Bandwidth Video resolution up to 4K x 2K Audio 7.1 Ch up to 192 kHz sample rate • Deep color support RGB/YCC (4:4:4) –...
-
Page 4: System Requirements
Supported Monitor Display Resolutions Display Mode DP 1.2 output port 1 DP 1.2 output port 2 Single 3840x2160@60Hz, 24bpp Not Connected Single Not connected 3840x2160@60Hz, 24bpp Dual 2560x1600@60Hz, 24bpp 2560x1600@60Hz, 24bpp System requirements Y-cable docking station requires the following: Computer that supports DisplayPort 1.2 with multi-stream support* Microsoft Windows: -Windows 7 SP1 (32-bit or 64-bit editions) -Windows 8 (32-bit or 64-bit editions) -
Page 5: Regulatory Information
Scenario: No video on one downstream monitors connected: 1. Y-cable docking station can support up to two monitors at 4K resolution. 2. Check the DisplayPort cable to be sure it is connected to Y-cable docking station and monitor. 3. If the monitor is a DVI or VGA monitor, check the DisplayPort cable to be sure it is connected to . Check the other end of the cable to make sure the DisplayPort-to-DVI or DisplayPort-to-VGA adapter is properly connected to the DisplayPort cable and to the monitor.
