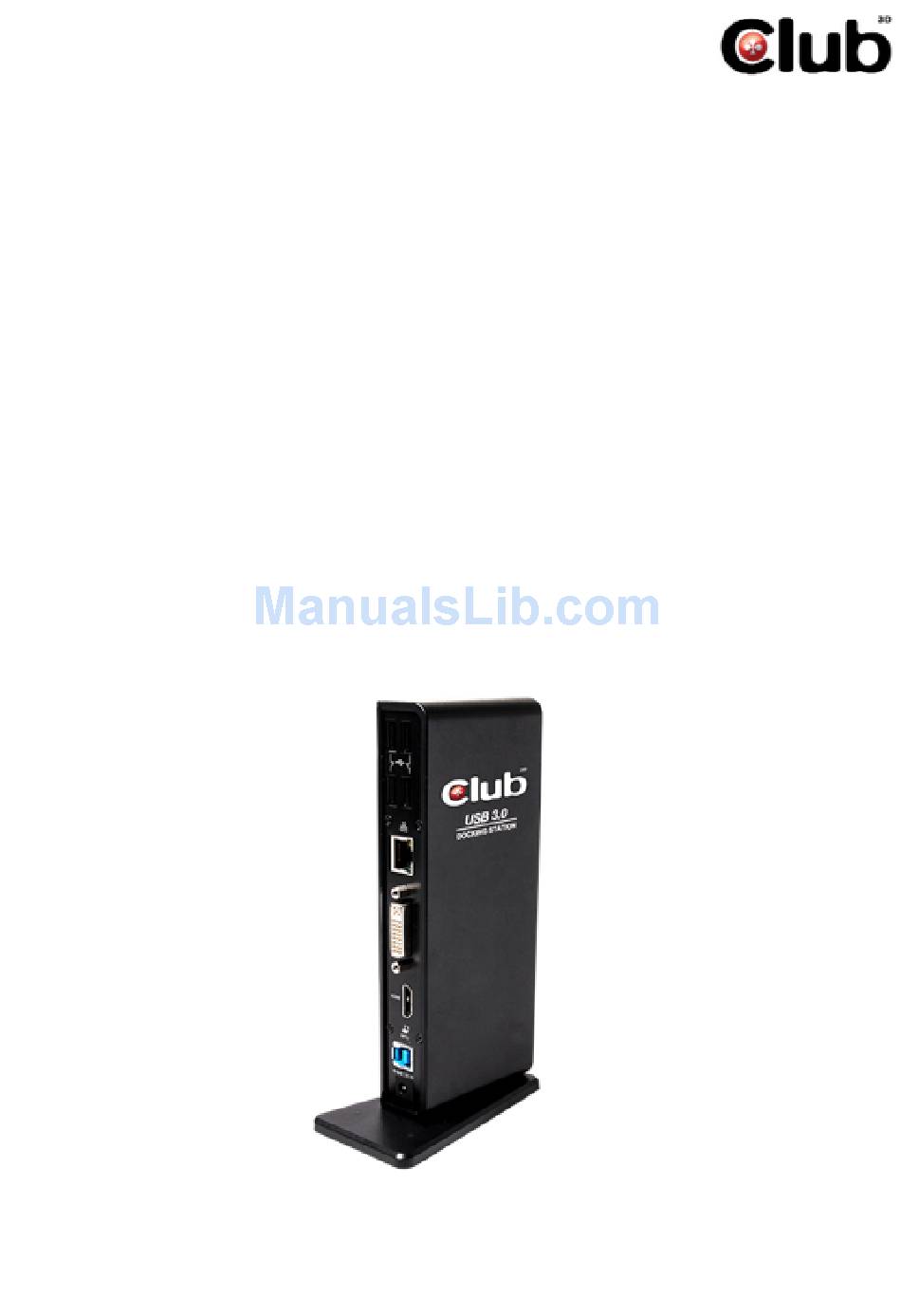

 USB 3.0 Dual Display Docking Station CSV-3242HD...

  • Page 2: Table Of Contents

    Table of Contents SAFETY INSTRUCTIONS COPYRIGHT TRADEMARKS INTRODUCTION FEATURES PACKAGE CONTENTS SYSTEM REQUIREMENTS PRODUCT OVERVIEW FRONT REAR INSTALLATION DISPLAY CONFIGURATION DESCRIPTION OF THE SETTINGS EXTENDED MODE CURSOR DISAPPEARED VIDEO PLAYBACK IN EXTENDED MODE MIRROR MODE BE THE PRIMARY MONITOR WINDOWS SHORTCUT AUDIO CONFIGURATION "...
  • Page 3 UNINSTALL THE DRIVER SPECIFICATION REGULATORY COMPLIANCE FCC CONDITIONS WEEE INFORMATION 34
...

  • Page 4: Safety Instructions

    Before attempting to connect, operate or adjust this product, please save and read the User's Manual completely. The style of the product shown in this User's Manual may be different from the actual unit due to various models. Safety Instructions Always read the safety instructions carefully: ■...

  • Page 5: Introduction

    Introduction The USB 3.0 Dual Display Docking Station is designed for extra connectivity demands. With the docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, the speaker and the microphone through one single USB cable. "...

  • Page 6: Features

    Features ■ Compatible with USB 3.0/2.0 specification ■ Resolution up to 2048x1152 ■ Support audio 2.1 channel ■ Support Gigabit Ethernet ■ Support HDMI (Dual Display Model only) ■ Support BC1.2 charging (Front x1) Package Contents ■ Docking Station x1 ■...

  • Page 7: System Requirements

    System Requirements The minimum requirements for the PC are: ■ CPU: 1.6GHz single core or higher processor clock. - Intel Pentium/Celeron family - AMD K6/Athlon/Duron family, or compatible processor ■ RAM: 1GB or above ■ USB port: 2.0/3.0 ■ 30MB of available disk space ■...

  • Page 8: Product Overview

    Product Overview Front " Item Description 1 USB 3.0 Port Connect to USB 3.0 devices 2 USB 3.0 Port Connect to USB 3.0 devices With BC 1.2 charging 3 Speaker Jack Connect to a speaker or earphone 4 MIC Jack Connect to a microphone Page...

  • Page 9: Rear

    Rear Item Description USB 2.0 port Connect to USB 2.0 devices RJ45 port Connect to an Ethernet DVI connector Connect to a DVI monitor or projector HDMI connector Connect to a HDMI monitor or projector USB 3.0 port Connect to a computer (TypeB) Power jack Connect to the power...
  • Page 10 Connection To connect the USB peripherals, Ethernet, speaker and microphone, follow the illustrations below to connect the corresponding connectors. " " " " " " " " " " " " " " " " Page...

  • Page 11: Installation

    Installation " Caution: DO NOT connect the docking to a computer before installing the provided driver. " " Note that the following strings and screen shots shown on this user's manual may vary slightly from each operation. Windows®7/ Windows®8/ Windows®8.1 1.
  • Page 12 NOTE: If the AutoPlay does not appear automatically, locate and double-click on the Setup.exe file in the driver folder to launch the setup. Enter the administrator password and then click Yes to start the installation if a User Account Control dialog box appears.
  • Page 13 Be patient with the installation procedure. " " " " " " " " " " " 5. Connect the Docking Station to a computer after the driver installation is completed. For connection details, refer to the chapter of Connection. 6.
  • Page 14 Mac® OS 1. Insert the supplied driver CD into a computer's CD/DVD ROM. 2. Click Run Driver.dmg to start the installation, and click Continue. " Page...
  • Page 15 3. Click Continue in Software License Agreement. " " 4. Click Agree > Install > Continue Installation. Page...
  • Page 16 " 5. Please wait while the installation is in process. " " " " " " " " " " " " " " " " Installation was successful
 Page...
  • Page 17 Verifying the installation To verify the driver of the adapter, follow the step below. 1. Following the path to open the device manager. Windows®7: Control Panel\ System and Security\ Systems\ Device manager Windows®8/ Windows®8.1: Settings\ Control Panel\ System and Security\ System\ Device manager 2.
  • Page 18 *Actual strings depend on your operating system. The screen shots are from Windows®7 (Dual Docking Station are from Windows®8) and might vary slightly for each operating system. NOTE: If you cannot find the driver in the list, the driver may not be properly installed.
  • Page 19 3. When the screen below appears, please click System Report…. " " " " " " " " " " " " " 4. You will find DisplayLink Adapter device listed as below. " Page...

  • Page 20: Display Configuration

    Display configuration NOTE: The following screenshots in this section are using Windows ® 7 operating system. It may not match your operating system but the definitions of buttons, tabs and menus are the same. Utility settings The supplied utility allows configuring the display mode, screen rotation, screen resolution, and physical arrangement of your monitors.

  • Page 21: Description Of The Settings

    Description of the settings " Options Description DisplayLink Enable the Windows screen Manager resolution page. Check for Updates Check the latest driver and download if available USB 3.0 Dual Display Docking Station Screen Click to select an available Resolution resolution. Note that this function is invalid in mirror mode, as the resolution is defined as the resolution of the primary monitor.
  • Page 22 Options Description Mirror Duplicate the primary monitor to the monitor which connects with the adapter Off Turn off the monitor Optimise for video Optimise the video quality when playing back. Text may appear less clear when enabling Fit to TV Adjust the size of Windows Desktop on the TV Note: This function works only...
  • Page 23 Multi-monitor configuration An extra DVI monitor can be connected through the Docking Station (HDMI and DVI monitors for Dual Head Station) if one monitor is already connected to the PC directly. Once the extra monitor is connected, it can be configured to use either “mirror mode”, “extended mode”...
  • Page 24 Mac® OS 1. Click Apple icon of the upper left icon in screen and select System Preferences… on the drop-down list. " Page...
  • Page 25 2. Click Displays turn to multi-monitor mode and the extended monitor with model number will be shown in the Desktop. " " " " " " " " " " " " " " " " " NOTE: Switch to Tick the box in front of Mirror Displays turns to Mirror Mode.
...

  • Page 26: Extended Mode

    Extended mode 1. Refer to the Windows system configuration section to open the configuration page. 2. In the Display drop-down menu, select the preferred monitor. 3. Check the Multiple Displays > Extend these displays on Window® 7/ Window® 8/ Window® 8.1 4.

  • Page 27: Video Playback In Extended Mode

    Video playback in extended mode If the video or DVD playback quality is poor or low performance in extended mode, please playback it on the primary monitor instead of the add-on monitor. Mirror mode 1. Refer to the Windows system configuration section to open the configuration page.

  • Page 28: Be The Primary Monitor

    Be the primary monitor 1. Refer to the Windows system configuration section to open the configuration page. 2. In the Display drop-down menu, select the preferred monitor. 3. Check the Make this my main display box on Window® 7, Set as Main Monitor on Window®8/Window®8.1 NOTE: Some PCs and laptops may need to disable the main display (i.e.
  • Page 29 Supported resolution Before adjusting the resolution, refer to the table below for the supported resolution. " Name Refresh rates Refresh rates available at 16 available at 32 bit color quality bit color quality 640x480 60 72 75 85 60 72 75 85 800x600 SVGA 56 60 72 75 85...

  • Page 30: Audio Configuration

    Audio configuration By default, when the docking station is connected to a computer, the audio configuration may be changed to USB (Multimedia) Audio Device automatically (this setting depends on models). If it does not work, follow the steps below to setup. Widnows®7/ Widnows®8/ Widnows®8.1 1.

  • Page 31: Uninstall The Driver

    Uninstall the driver" 1. Follow the instructions to find the driver path, and" then right-click on DisplayLink Graphics to uninstall" the driver." Widnows®7" Control Panel > Programs > Programs and Features" > Uninstall or change the program" Widnows®8/ Widnows®8.1" Settings > Control Panel > Programs > Uninstall a" program"...
  • Page 32 3. Click Yes to restart your computer. You can also disconnect the video connection now. " " " " " " " " " Mac® OS 1. Open driver and click DisplayLink Software Uninstaller. " Page...
  • Page 33 Specification " Host Interface USB 3.o Connector Video Output HDMI 30 pin Female Connector (Dual Display Model)" DVI HDDE 30 pin Female Connector Host upstream link USB B Type Female Connector HUB downstream link USB A Type Female Connector Audio Port 3.5mm stereo mini-jack 2.1ch Ethernet Port RJ45 Connector...

  • Page 34: Regulatory Compliance

    Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received and include interference that may cause undesired operation.
