USER MANUAL & CARE GUIDE

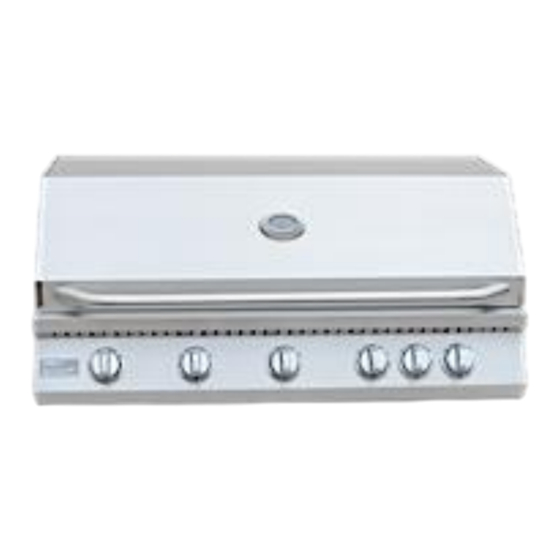

Gas Grill Model:
KO-BAK3BG (LP/NG)
KO-BAK4BG (LP/NG)
KO-BAK5BG (LP/NG)
DANGER:
IF YOU SMELL GAS:
1) Shut off the gas supply to the appliance at
its source.
2) Extinguish any open flames.
3) Open grill hood to release any
accumulation of gas vapor.
4) If a gas odor persists, Keep away from
your appliance and contact your gas supplier
or fire department immediately.
ATTENTION CONSUMER:
PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND
BEFORE INSTALLING OR OPERATING.
Kokomo Grills Outdoor Products: USA Nationwide
THIS MANUAL APPLIES TO THE FOLLOWING KOKOMO GRILLS & SIDE BURNERS:
Version 2.8
Help Desk:
www.kokomogrills.com
Kokomo Grills Outdoor Products Instructional Book
Side Burner Model:
KO-BAK1BG (LP/NG)
KO-BAK2BG (LP/NG)
WARNING:
-Do not store or use gasoline or other
flammable liquids or vapor in the vicinity of
this or any other appliance
-A LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliances.
PG 1
Advertisement
Table of Contents
Summary of Contents for Kokomo Grills KO-BAK3BG
- Page 1 PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING OR OPERATING. Kokomo Grills Outdoor Products: USA Nationwide Help Desk: www.kokomogrills.com THIS MANUAL APPLIES TO THE FOLLOWING KOKOMO GRILLS & SIDE BURNERS: Kokomo Grills Outdoor Products Instructional Book PG 1 Version 2.8...
- Page 2 MODEL: KO-BAK3BG (LP/NG) MODEL: KO-BAK4BG-LP/NG 3 BURNER KOKOMO GRILL 4 BURNER GRILL CUTOUT CUTOUT W:23 1/2” H:7 5/8” D:20 1/4” W:30 7/8” H:7 5/8”D:20 1/4” DIMENSIONS DIMENSIONS 12,000 BTU PER BURNER X BTU OUTPUT BTU OUTPUT 12,000 BTU PER BURNER X4...
- Page 3 BURNER BURNERS ALL GRILLS ARE SHIPPED LP EACH SHIPMENT GAS TYPE CONTAINS NG CONVERSION KIT LIFETIME LIMITED WARRANTY KOKOMO GRILLS HAVE A LIFETIME LIMITED WARRANTY ON GRILL HOUSING AND HOOD AGAINST MANUFACTURE DEFECTS AND WORKMANSHIP. WARRANTY 10 YEAR LIMITED WARRANTY ON BURNERS...
- Page 4 PG 4...
- Page 5 NOTE: CHECK WITH CITY AND FIRE DEPARTMENT FOR LOCAL BUILDING CODES. A PERMIT MAY BE REQUIRED FOR OUTDOOR KITCHEN CONSTRUCTION. PG 5...
- Page 6 PG 6...
- Page 7 PG 7...
- Page 8 KO-BAK1BG-LP/NG KO-BAK2BG-LP/NG SIGLE SIDE BURNER DOUBLE SIDE BURNER W: 11 1/2” H:0” D:15 W: 11” H: 6 3/4” D: 20 Cutout Cutout 1/2” 1/4” Dimensions Dimensions Total BTU 12,000BTU(1Bnr) Total BTU 24,000BTU(2Bnr) Output Output Number of Number of Burners Burners Burner Burner Aluminum &...
- Page 9 PG 9...
-
Page 10: Building Bbq Specifications
BUILDING BBQ SPECIFICATIONS ALL BBQ ISLANDS MUST BE MANUFACTURED FROM “NON- COMBUSTIBLE” MATERIAL. Minimum clearance to adjacent combustible construction at 14” from sides & 16” from back PG 10... -
Page 11: Safety And Installation Instructions
Safety and Installation Instructions WARNING To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before operating your gas grill or side burners. GRILL INSTALLATION This gas grill must be installed in accordance with all local codes. If installation is planned in an area with no local codes, the gas grill must be installed in accord with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code. - Page 12 Instructions Overview Location of your Barbecue: Most importantly, this is an outdoor appliance. Ensure your barbecue is positioned safely away from anything that can catch fire. Under no circumstance is this barbecue to be used indoors. This includes garages or any other enclosed area. ...
-
Page 13: Safety And Installation Warnings
Safety and Installation Warnings Please read all instructions before installing or operating your gas grill to prevent injury and appliance damage. Before installation or service, disconnect the power supply to the work area by removing the fuse, "tripping" the circuit breaker, or unplugging the unit. ... -
Page 14: Natural Gas Requirements
Never connect the appliance to an unregulated gas supply line. Grills operated without a regulator are unsafe and will not be serviced until installed properly and safely. Unsafe operation without a gas regulator will void warranty of the grill. ... -
Page 15: Checking For Gas Leaks
Connection 1) Slide the grill forward to gain access to the regulator and gas connection point in the rear. 2) Connect a suitable natural gas flex connector to the grill regulator. 3) Check the grill controls to ensure all control valves are in the full OFF position. 4) Turn on the main gas supply and check all connections for leaks using soapy water as described in the leak testing procedure section. - Page 16 Turn all control knobs back to the full OFF position. If you are unable to stop a leak turn all control knobs back to the full OFF position, shut off the gas supply to the grill and release pressure in the hose and manifold by pushing in and turning any of the control valves one quarter turn counter-clockwise.
-
Page 17: Lp Tank Requirements
Liquid Propane (LP) Gas Requirements LP TANK REQUIREMENTS: A collar to protect the cylinder threads on the customer supplied tank. An arrangement for gas vapor withdrawal. A safety relief device having direct communication with the vapor space of the cylinder. -
Page 18: Transporting And Storing Lp Gas
Transporting and Storing LP Gas Transport only one cylinder at a time. Ensure the cylinder is secured in an upright position with the control valve turned off and the dust cap in place. Be sure to store cylinders outdoors and out of the reach of children. Do not store cylinders in a building, garage, or any other enclosed area. -
Page 19: For Your Safety
FOR YOUR SAFETY 1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. 2. Do not store any propane/butane (G31-G30) cylinder (that is not connected for use) in the vicinity of this or any other appliance. Installing the Grill in a BBQ Island ... -
Page 20: Electrical Precautions
Electrical Precautions Extension cords are available and may be used if care is exercised in their use. If an extension cord is used: The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance ... -
Page 21: Unit Installation
Always open the grill hood carefully, using only the handle - the hood may be hot. Children should not be left alone or unattended in an area where any appliance is in use. They should never be allowed to touch, sit or stand on any part of the appliance. ... - Page 22 Type of fuel being used: ____________________________ Date purchased: __________________________________ Date installed: ____________________________________ Kokomo grills dealer’s name and address _____________________________________ Kokomo dealer’s phone number: _____________________________________________ Kokomo Product Registration Please take a minute to let us know what you bought. This makes sure we keep you up to...
-
Page 23: Lighting Instructions
Lighting Instructions Caution: Never operate the grill unattended. Prior to using your grill, verify that all of the following is correct: The burner tube is free of any debris or obstruction. The proper gas type and regulator settings were installed. ... -
Page 24: Manually Lighting The Grill
Lighting the Grill 1. Open the hood. 2. Keep your face as far away from the burners as possible. 3. Slowly rotate the burner knob counter-clockwise to the high position. 4. You will hear a loud click as the electric lighter produces a spark. Listen for the sound of the gas igniting. - Page 25 WARNING: “Flashback” may occur in or around the burner tubes. Flashback exhibits a characteristic “whooshing” sound. If this should occur, immediately turn off your burners, then remove and clean them with soap and water and a brush until all foreign objects are removed. Fuel (Gas) Conversion Instructions for KoKoMo Gas Grills.
-
Page 26: Warranty
Limited Warranty – Grills KoKoMo Grills warrants, to the original purchaser of the Outdoor Gas Grill, that when subject to normal residential use it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental or commercial applications. - Page 27 Does the fire pit have a hole for drainage? KoKoMo Grills currently does not cut any holes for drainage, but when your plumber hooks up the gas to the burner you have to drill a hole into the cement board in order to get to the burner. So that provides an out for water.
- Page 28 BBQ Parts – Warranty / Order Cooking Grill BAK4BG--001 Flame Tamer w/ Briquettes BAK4BG--002 Flavor Bars 4 Burner BAK4BG--004 Drip Tray BAK4BG--005 Burner-Controlling Valve BAK4BG--006 Back Burner Valve BAK4BG--007 Controlling Knob BAK4BG--008 Stainless Steel Burner BAK4BG--009 Warming Rack BAK4BG--0010 Hood Handle BAK4BG--011 Thermometer BAK4BG--012...
