• Installation must be performed by a licensed plumber or gas fitter
• See Table of Contents for location of additional Commonwealth of
Massachusetts requirements
•
Hot! Do not touch! The glass and surfaces of this appliance will be hot during operation and will
retain heat for a while after shutting off the appliance. Severe burns may result.
•
Carefully supervise children in the same room as appliance. If small children are present in the home, it
is recommended that this appliance be fitted with a screen door. See Page 37 for ordering information.
•
These appliances may be installed in an aftermarket permanently located, manufactured (mobile) home (USA
only), where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.
•
Lennox Hearth Products gas-burning appliances are designed for use as a supplemental heater. They are not
intended for continuous use as a primary heat source.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not light any appliance.
• Do not touch any electrical switch; do not
Use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow your gas supplier's
instructions.
• If your gas supplier cannot be reached, call
the fire department.
Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier

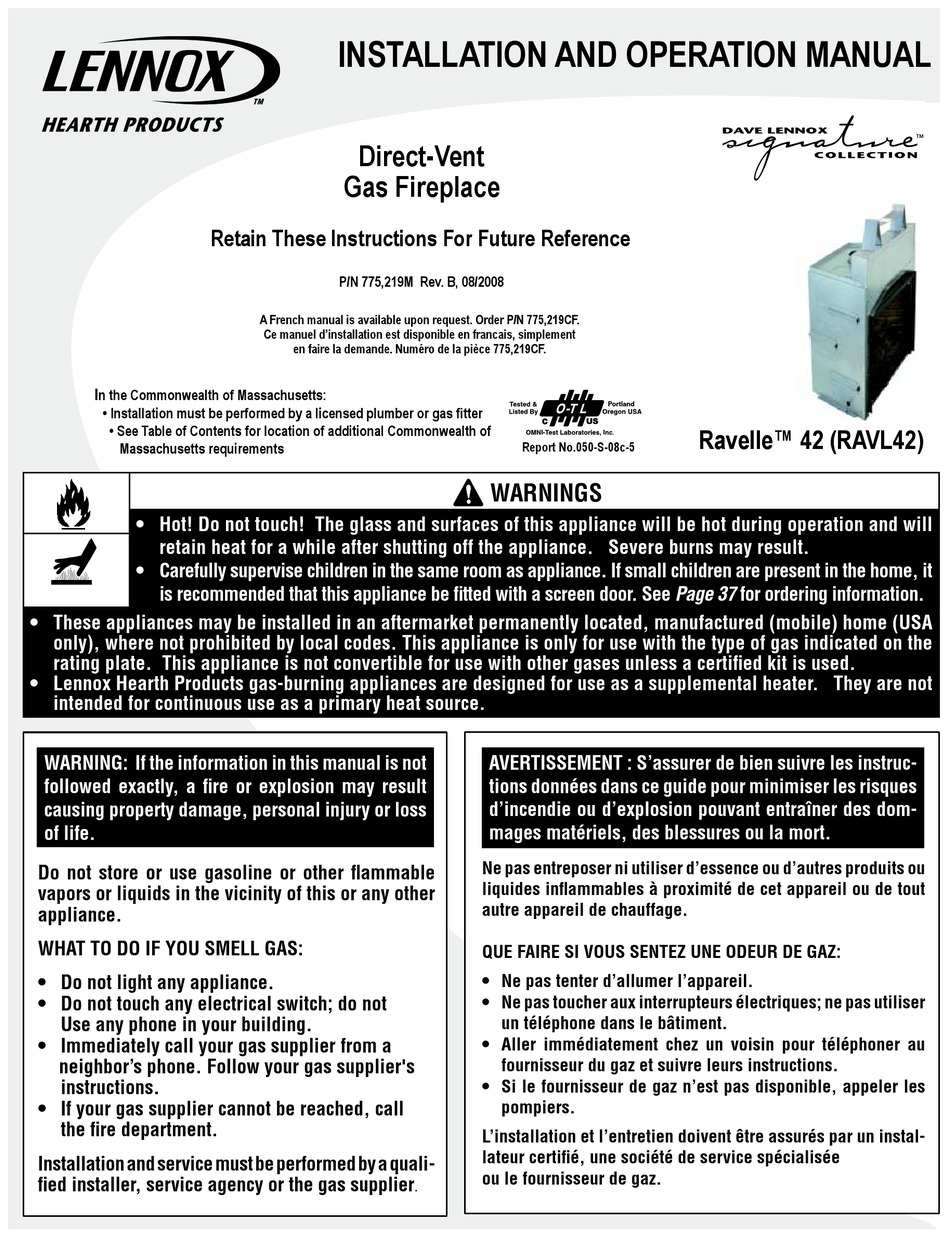

INSTALLATION AND OPERATION MANUAL
Direct-Vent
Gas Fireplace
Retain These Instructions For Future Reference
P/N 775,219M Rev. B, 08/2008
A French manual is available upon request. Order P/N 775,219CF.
Ce manuel d'installation est disponible en francais, simplement
en faire la demande. Numéro de la pièce 775,219CF.
WARNING:
Do NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
* Do NOT try to light any appliance.
* Do NOT touch any electrical switch; do NOT use any phone in your building.
* Immediately call your gas supplier from a neighbors phone. Follow your gas suppliers instructions.
* If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplie
This appliance may be installed in an aftermarket permanently located manufactured (mobile) home
where NOT prohibited by law.
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is NOT convertible for use with any other gases, unless a certified kit is used.
Chateau 42
Direct Vent Gas Fireplace Model C42
NG 42,000 BTU
LP 36,000 BTU
US
Report No.050-S-08c-5
If the information in this manual is not followed exactly, a fire or explosion
WARNINGS
may result causing property damage, personal injury or loss of life!
AVERTISSEMENT : S'assurer de bien suivre les instruc-
tions données dans ce guide pour minimiser les risques
d'incendie ou d'explosion pouvant entraîner des dom-
mages matériels, des blessures ou la mort.
Ne pas entreposer ni utiliser d'essence ou d'autres produits ou
liquides inflammables à proximité de cet appareil ou de tout
autre appareil de chauffage.
Installer: This Manual Must Stay With Appliance !
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer l'appareil.
Manufactured by:
• Ne pas toucher aux interrupteurs électriques; ne pas utiliser
Country Stoves Inc.
un téléphone dans le bâtiment.
PO Box 959
• Aller immédiatement chez un voisin pour téléphoner au
Auburn, WA 98071
fournisseur du gaz et suivre leurs instructions.
• Si le fournisseur de gaz n'est pas disponible, appeler les
pompiers.
L'installation et l'entretien doivent être assurés par un instal-
lateur certifié, une société de service spécialisée
ou le fournisseur de gaz.
.
Portland
Ravelle™ 42 (RAVL42)
TM
