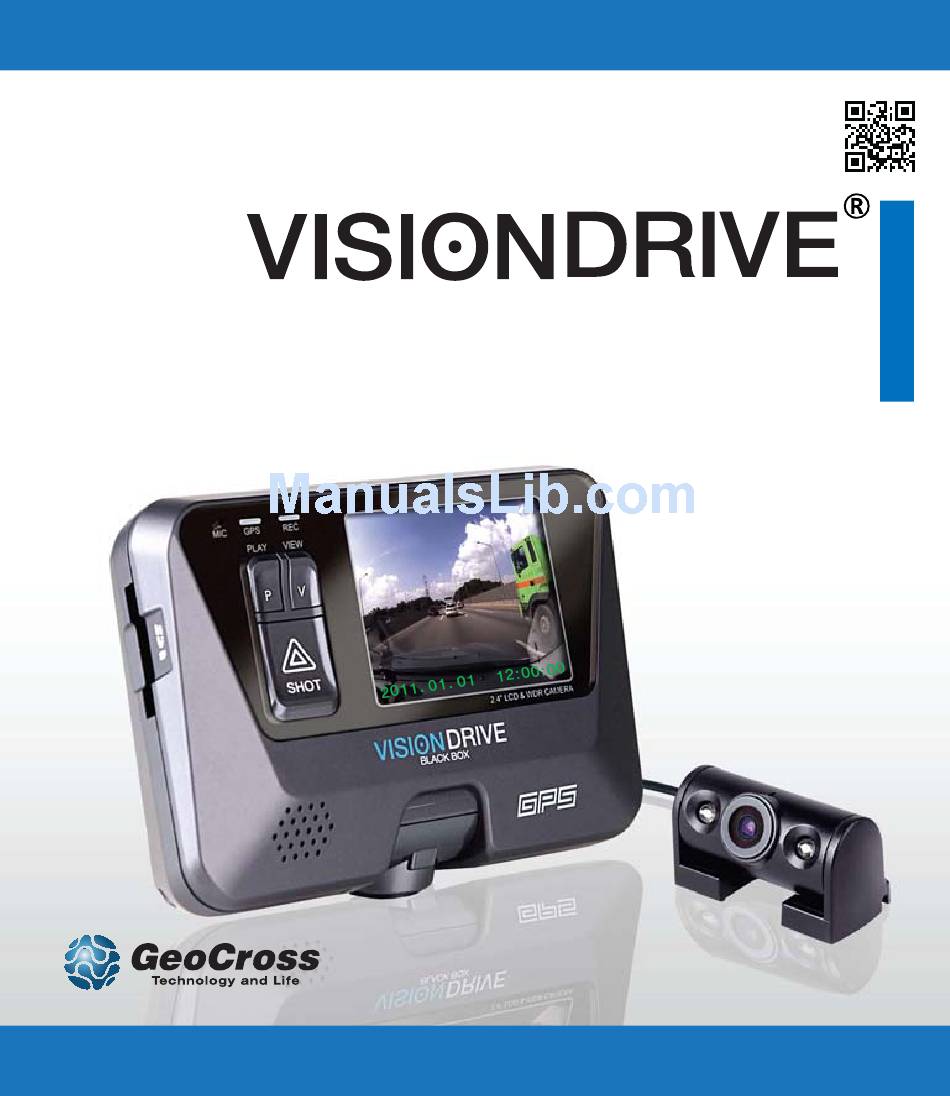

- Page 1 User Manual Ver. VD-7000W 1.2E CAR BLACK BOX VD-7000W External IR Camera (option)
-
Page 2: Table Of Contents
INDEX Before Use Caution Components Part Names Product Speci cations Installation Precautions Installation Sequence Installation Procedure Product Use Analysis Program Use Warranty... -
Page 3: Before Use
Before Use Thank you for choosing VisionDrive . The following contents describe the scope of the warranty service covered by us and product cautions. Warranty Service and Responsibility We shall not be held responsible for damage caused by errors or data loss of this product, as well as any damages or losses derived from the device not operating normally. -
Page 4: Caution
Caution The SD card is the only usable SD card for this product. In case of a lost SD card, please contact your local retail shop to purchase a replacement. If a damaged or a non-authentic SD card is used, the recorded data maybe damaged or will not record and/or replay due to difference in quality. - Page 5 Caution In case of slight impact, the product may not be able to create an event file automatically (it is however recorded as a Normal file). In such a case, please use the (SHOT) button to create an event file manually. If you eject the SD card while the product is on, the recorded data may be damaged.
-
Page 6: Components
Components !! Components are subject to change without prior notice. 2011. 01. 01 12:00:00 Option IR Camera Main Unit and an extension cable (4M) Attachment SD card Wire holders Cigar Power Bracket Adaptor (Mount) -
Page 7: Part Names
Part Names LCD SCREEN VIEW BUTTON PLAY BUTTON SD CARD SLOT CABLE SHOT BUTTON IR LED LIGHT SENSOR CAMERA GPS SENSOR BRACKET ATTACHED TO THE UNIT’S BODY POWER PORT OPTION CAMERA PORT TECH SUPPORT PORT... -
Page 8: Product Speci Cations
Product Speci cation Model VISIONDRIVE VD-7000W 2 Camera Camera /0.3M pixel WDR CMOS digital camera + Optional Camera (0.3M IR) Resolution 640x480(VGA) 30fps (1ch) / 640x480(VGA) 20fps (2ch) Recording 24Hr Loop Recording / Manual & Emergency Recording button Lighting Environment Min. -
Page 9: Installation Precautions
Be aware of engine ignition switching for they may disconnect power for short periods of time. It is recommended to only use authorized SD cards with the VisionDrive products. Install the product after parking your vehicle in a bright and safe area. -
Page 10: Installation Sequence
Installation Sequence Connect the bracket and the main unit Connect the external option camera and the main unit Insert SD card into the unit Connect cable and attach on windshield Connect to power source and turn on the unit Adjust the camera angle Check LED lamps Arrange wires using wire holders... -
Page 11: Installation Procedure
Installation Procedure 1. Connect the bracket and the main unit Connect the attachment bracket with the main unit and push it to the direction 1 to secure the lock to hear the click sound. Move the bracket to direction 2 to release the bracket. -
Page 12: Insert Sd Card Into The Unit
Installation Procedure 3. Insert SD card into the unit Insert the SD card as shown in the picture. When ejecting the SD card from the unit, turn off the main power. When ejecting the SD card from the unit, turn off the main power completely, and then push in the SD card. -
Page 13: Connect To Power Source And Turn On The Unit
Installation Procedure 5. Connect to power source and turn on the unit Insert the cigarette jack into an appropriate outlet then turn on the engine. When the power is on, the LEDs and the LCD will turn on and a voice notification will be announced. - Page 14 Installation Procedure Windshield Bracket Unit Camera Vehicle Interior (Driver’s Side) Vehicle Exterior When the unit is attached, set the camera to face the front direction of the vehicle. 65’ Highest Lowest Position Position Camera is adjustable and can be rotated 65 degrees to cover desired recording areas.
-
Page 15: Check Led Lamps
Installation Procedure 7. Check LED lamps The GPS lamp is red when the GPS signal is not received and blue when it is received. The GPS connection may take a couple of seconds to several minutes, depending on the location of your vehicle. The REC lamp is blue when it is recording. -
Page 16: Product Use
Product Use Start up - Turn off the engine and remove the key from ignition. - Check to see if the SD card is inserted into the unit. - Turn on the engine - When the engine is turned on, the system boot starts with the program installed in the SD card and a voice notification will be announced. - Page 19 The SD cards contain programs necessary to operate the product. Also, the provided SD card is tested and certified by the manufacturer while other SD cards may not match the performance and specifications that authentic VisionDrive SD cards can offer.
-
Page 20: Analysis Program Use
PC Analysis Program Use *** The skin used for the analysis program may differ by the version *** Program Start Up - After the SD card is connected to the PC, open up the VDAnalyzer.exe file in the SD. - Opening the VDAnalyzer.exe program, password window will show up. - Page 21 PC Analysis Program Use File searching by preview function - When a file chosen is selected from the list , the screen shows the first frame of the file for your easier choice of reference. - A double-click on the a selected file in the list plays the video on the screen. Auto-play Function - After you double-click a file, the following recordings will automatically and continuously play one after another.
- Page 22 PC Analysis Program Use Display mode : Front view (Camera1) and Rear view (Camera2). : Big screen for Camera 1 and sub : Big screen for Camera 2 and sub screen for camera 2. screen for camera 1. (You can change screen modes by clicking the sub screen.)
- Page 23 PC Analysis Program Use Display mode : One big screen for Camera 1 only. : One big screen for Camera 2 only. - Screen upside down function : camera 2 screen can be switched upside down by clicking the button.
- Page 24 PC Analysis Program Use Positioning on the map - With the GPS data, the map shows the location of the vehicle while playing the recorded data. - The Google map is viewable only whilst your PC is connected to the Internet . Shock Sensor Graph - The graph below shows impacts on the x-y-z axis of the vehicle.
- Page 25 PC Analysis Program Use PLAY / PAUSE / PREVIOUS FRAME / LATTER FRAME - When the play button is pressed, it will replay the video file listed on the screen. After selecting a file from the list, double click the file from the list to play the file. - When you press the pause button, the viewing video will be paused.
- Page 27 PC Analysis Program Use Con guration - You can record forward and rear view videos at the same time if you us the optional external camera. - The video resolution and quality settings can be modified. - If the resolution is high, the file size also becomes larger and will take more memory on the SD card.
- Page 28 PC Analysis Program Use Con guration - You can set the recording time after an impact. (10 seconds prior to the impact are recorded and stored.) - Impact files are stored in EVENT Folder and the size of the EVENT Folder is set here. The rest remaining % of the SD card space is for the NORMAL Folder.
- Page 29 PC Analysis Program Use Con guration - You and can select whether to use car battery drain monitoring function and also specifcy what the supply voltage is. - You can select your location and time zone and the GPS will register your local time with your video.
-
Page 31: Warranty
Warranty Certi cate Warranty Certi cate Product Name Model Name VISIONDRIVE Purchase Date Serial Number Warranty Retail Shop Period If the product malfunctions after the 1 year warranty period expires, no service is provided under warranty. If the certificate does not have the date of purchase, the 1 year warranty is calculated by the serial number’s... - Page 32 All hardwares, softwares, design and logo of the product is copyrighted by the manufacturer of the product. Copy, disassembly, remake and distribution without the manufacturer’s consent is prohibited and will be enforced by all legal rights held by the manufacturer. www.visiondrive.co.kr...
- Page 33 CAR BLACK BOX...
