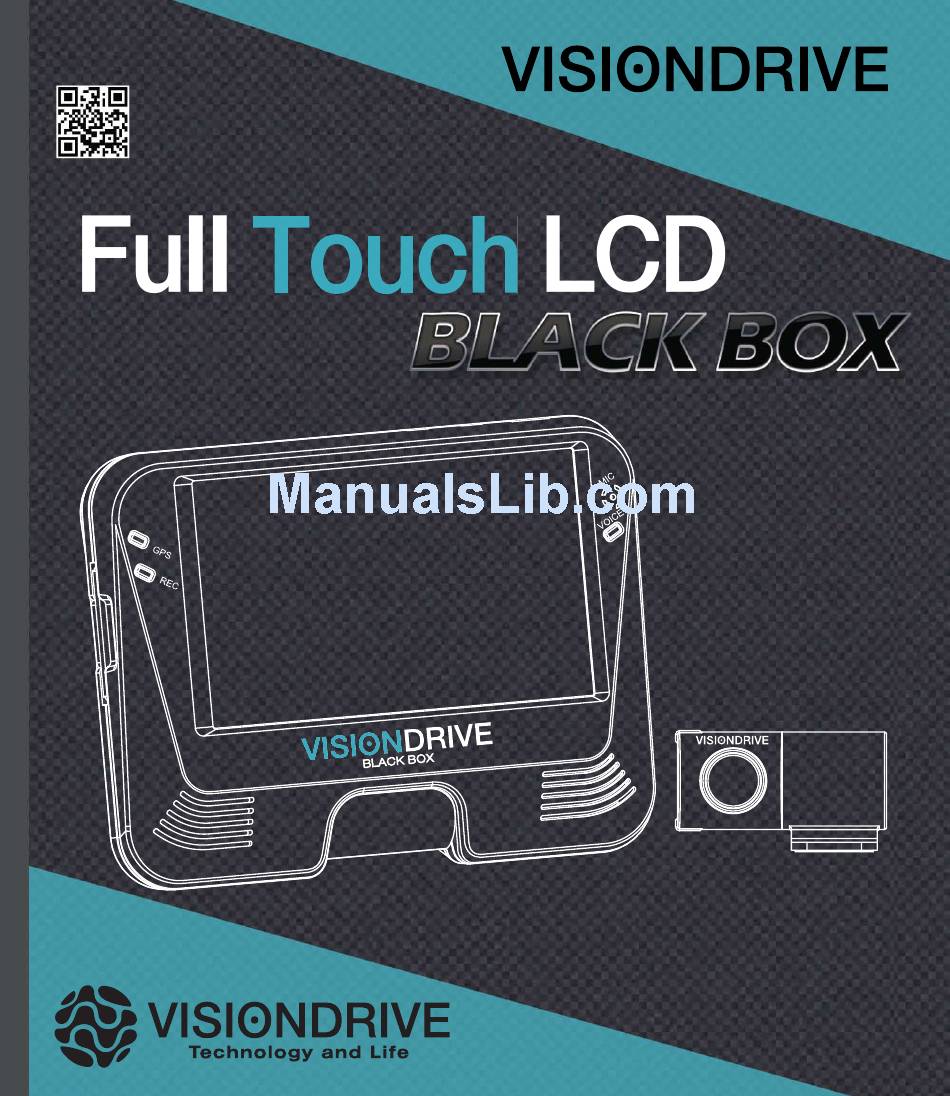

User Manual
®
Ver. 1.0E
CAR BLACK BOX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VD-9500H and is the answer not in the manual?

Questions and answers

Related Manuals for VisionDrive VD-9500H

Summary of Contents for VisionDrive VD-9500H

  • Page 1 User Manual ® Ver. 1.0E CAR BLACK BOX...

  • Page 2: Table Of Contents

    Index General Info........... Before Use .

  • Page 3: General Info

    General Info._ 1. Before Use Thank you for purchasing the VISIONDRIVE proudly designed and manufactured by VisionDrive Co., Ltd in Korea. Please read the product manual carefully before use so you can be informed of all the features of this advanced product.
  • Page 4 1. Before Use SD memory card use and precautions This product is recommended to work with only the SD card dedicated to VISIONDRIVE. Please contact the dealer/agent or distributor to purchase a new one when the SD card is lost or damaged.

  • Page 5: Operational Precautions

    Accumulation of impurities on the camera lens or the window surface near the camera may result in diffused or abnormal refraction phenomena. You may not get a clean image from this so please ensure that the area surrounding the product, camera lens is kept clean. visiondrive.co.kr...
  • Page 6 Dropping or strong shocks applied to this product will cause malfunctions. Please try to keep the product away from water, fire, hot, cold or humid environments. If long-term exposure to the summer sun light or too low temperatures, deformation or malfunction may occur. visiondrive.co.kr...

  • Page 7: Contents

    General Info._ 3. Contents Please make sure that all of contents are included in good condition, if not then please contact your dealer to correct any detected issues. ( Specifications and contents are subject to change without notice and this manual can also be provided in soft copy format.

  • Page 8: Part Names

    General Info._ 4. Part Names visiondrive.co.kr...

  • Page 9: Product Specifications

    Model VD-9500H VD-9600WHG/B 2 Cameras Main : HD Color CMOS Digital Main : HD WDR Color CMOS cameras Digital Camera Camera(s) Second : HD Color CMOS digital cameras Resolution 1280 x 720(HD) 30fps + 1280 x 720(HD) 30fps (2ch Mode) Display 3.2”...

  • Page 10: Installation Precautions

    Please keep it in mine that the product can be off for a short period of time during start-up. - It is recommended to use only authorized SD cards provided with the VisionDrive® product. - Only install the product after parking the vehicle in a bright and safe area.

  • Page 11: Installation Procedure

    Insert the SD card into the unit Connect the cable and attach on windshield Connect to power source to turn on the product Adjust the camera angle Check LED lamps Arrange wires using wire holders *Connect the optional rear camera. visiondrive.co.kr...
  • Page 12 SD card. The SD card will pop out when pushed in. Use of force or other methods to eject the SD card may defect the SD card or damage the recorder. visiondrive.co.kr...
  • Page 13 ACC, the product will commence booting up with voice announcement. Blinking of LED lamps notifies that the system booting has succeeded. DO NOT turn off the power source while the system start-up is in progress as this may cause damage to the product. visiondrive.co.kr...
  • Page 14 For better images and operation of the analysis program, ensure that over 1/2 of the vehicle hood/bonnet area is included in the recorded data. visiondrive.co.kr...
  • Page 15 65 ˚ Highest Lowest Position Position Camera lens is movable up and down to adjust the angle. The camera is tightly fixed to prevent random movement by slight vibration so apply enough force to adjust the angle of the camera. visiondrive.co.kr...
  • Page 16 It may take a couple of seconds to several minutes to get the GPS signal depending on the location of your vehicle and movement of the recorder in an unpowered state. 7) Arrange wires using wire holders Use the enclosed cable holders to organize cables. visiondrive.co.kr...
  • Page 17 7. Installation Procedure Connect the optional second camera The optional camera can be used by being connected to CAM IN port. We recommend to power off the main unit before connecting the second camera to the CAM IN port. visiondrive.co.kr...

  • Page 18: Basic Info

    - EVENT folder content is overwritten when it is full. - Sensitivity of Shock sensor, storage ratio of each folder or recording time for an event file after an impact can also be set in Menu> System Settings> Shock sensor and recording settings on the LCD screen. visiondrive.co.kr...
  • Page 19 - Extensive and continuous use of the vehicle’s power source may exhaust the performance of the product. The company is not liable for the damages from continuous use of the product more than 24 hours. We recommend the full power to be off after continuous use of 2~3 days for maintenance purpose. visiondrive.co.kr...
  • Page 20 1. How to Use Use of SD Card - Users are recommended to use the SD card issued by the manufacturer. VISIONDRIVE® untested SD cards may not be recognized nor may they save video data correctly. - To eject the SD card from the product, the engine has to be turned off and the key should be removed from the ignition (all power should be removed from the device).

  • Page 21: Using The Menus

    Using the Menus _ 1. Touch LCD Basic screen construction...
  • Page 22 - An EMERGEYCY file is made for a maximum duration of one minute, 10 sec. before the SHOT button till 15/25/35/45 sec. after the SHOT. Menu - Touch to go to the Main Menu Area. (Current date and time are displayed.) visiondrive.co.kr...

  • Page 23: System Settings

    - Whilst in Menu for playback mode and system settings the whole recording is OFF as well as REC LED. It automatically returns to recording mode when there is no touch on the screen for more than 30 seconds. visiondrive.co.kr...
  • Page 24 - It stores data with shocks in EVENT folder with alarm. Data due to shock while parking is also stored in this folder. NORMAL - Usual driving data is in this folder. PARKING - Videos recorded while parking except the videos by motion detection or impacts are stored here. visiondrive.co.kr...
  • Page 25 - The front screen and rear screen are switchable with the icon for transition. - Transition to rear video can be limited when it is paused. Please try this when a video is being played. No rear videos are available in case of no optional camera for recording. visiondrive.co.kr...
  • Page 26 - The alarm sound going off when shocks are registered or system checking is required can be On / Off. Voice recording - Voice recording can be ON / OFF. Notification of Parking Mode - Voice guidance for Parking Mode can be On / Off. - Can be On / Off. visiondrive.co.kr...
  • Page 27 - Recording time after an impact for an EVENT file is selective. Event recording starts 10 sec. before an impact. Allocation of storage space - Allocation of storage space for EVENT related files is adjustable. Normal, Parking, Emergency files are automatically allocated following the setting of EVENT folder. visiondrive.co.kr...
  • Page 28 - Displayed time on the LCD screen can be adjusted. Please touch to save the changes. (Year, Month, Day, Hour, Minute, Second) Time Zone Setting - Time Zone should be tuned in to your location to have the exact time. (GPS signal is required.) visiondrive.co.kr...

  • Page 29: Motion Detection

    Security LED - It indicates that the VISIONDRIVE black box is operational by blinking. It can be ON / OFF. SD card format - All of data in the SD card can be erased. Once it is done, those data cannot be restored.
  • Page 30 - Touch all five points following this order, the top left corner > top right> bottom right>bottom left > the center, to complete touch calibration properly. This can be used repeatedly to recognize the points better. - System reboots to apply the settings. visiondrive.co.kr...

  • Page 31: Pc Viewer On Windows Based Computers

    - Make sure that a shortcut of PC viewer has been shown on the desktop when the installation is completed. - Double-click the shortcut icon or go to the Start menu> All Programs> VisionDrive > VD Analyzer to run the program. visiondrive.co.kr...
  • Page 32 *** The skin used for the VD Analyzer may differ according to the version *** - Open up the downloaded VD Analyzer. OPEN - Please click on OPEN to fetch the video files recorded by VisionDrive from SD card drive or any folder. Playback - Select a file from the list located on the right-hand side.
  • Page 33 Y-axis: Detect impacts from up - down (0G ~ 3G is registered) X-axis: Detect impacts from left - right (0G ~ 3G is registered) Speed meter - The speed of the vehicle determined by the GPS is shown on videos in playback. (Required use of external GPS module for this) visiondrive.co.kr...
  • Page 34 Using the Menus _ 2. PC viewer_VD Analyzer Volume Control - Please move the scroll bar from the left to the right to control the volume of recorded sound in playback mode. Controller in playback Playback by multiple speed visiondrive.co.kr...
  • Page 35 - Short memos/notes regarding the incident or other information can be entered and printed out together with the image. Settings - The product configuration can be changed. Version Information - Version of the currently in use software can be confirmed. visiondrive.co.kr...
  • Page 36 Using the Menus _ 2. PC viewer_VD Analyzer Auto-play Display Mode 2013-08-04 19:18:37 2013-0804 19:18:37 2013-08-04 19:18:37 visiondrive.co.kr...
  • Page 37 Using the Menus _ 2. PC viewer_VD Analyzer Pop-up menu 2013-08-04 19:18:37 visiondrive.co.kr...
  • Page 38 Using the Menus _ 2. PC viewer_VD Analyzer visiondrive.co.kr...
  • Page 39 Using the Menus _ 2. PC viewer_VD Analyzer Configuration visiondrive.co.kr...
  • Page 40 - Level of sensitivity can be modified according to vehicle type and driving condition. A lower value makes the sensor more sensitive, large numbers makes it insensitive. (10: disables) Vehicle Information - Information of the vehicle will be shown up on the video in playback. visiondrive.co.kr...
  • Page 41 EVENT related files is adjustable. Normal, Parking, Emergency files are automatically allocated following the setting of EVENT folder. - Files with shock or motion detection in parking mode are stored in the EVENT folder. recording, it blinks faster than usual. visiondrive.co.kr...

  • Page 42: Parking Mode

    - When press RTC, the time of the computer is automatically set to the SD card. Insert SD card to recorder in order to apply the time from PC. * Insert SD card right away to avoid time difference after setting. visiondrive.co.kr...

  • Page 43: Additional Info

    Using power cables other than that which were provided by the manufacturer. Dropping or damaging the product through any means – accidental or on purpose. - Warranty repairs are available only in the country where the product is purchased. visiondrive.co.kr...

  • Page 44: Warranty

    Additional Info. _ 2. Warranty Warranty Certificate VISIONDRIVE Product Name Model Name Product Name Serial Number Retail Shop Warranty Period The certificate does not have the date of purchase as the one year warranty is calculated by the serial number’s production date plus an additional one month to calculate the one year warranty period.
  • Page 45 This is a dedicated SDHC memory card for this product. It can be treated with/without cost or exchange upon investigation when it meets a problem when the problem is not caused by negligence of customers. The term of guarantee Up to 6 months since the date of purchase. visiondrive.co.kr...
