Sharp LC-60E77UN Service Manual page 19

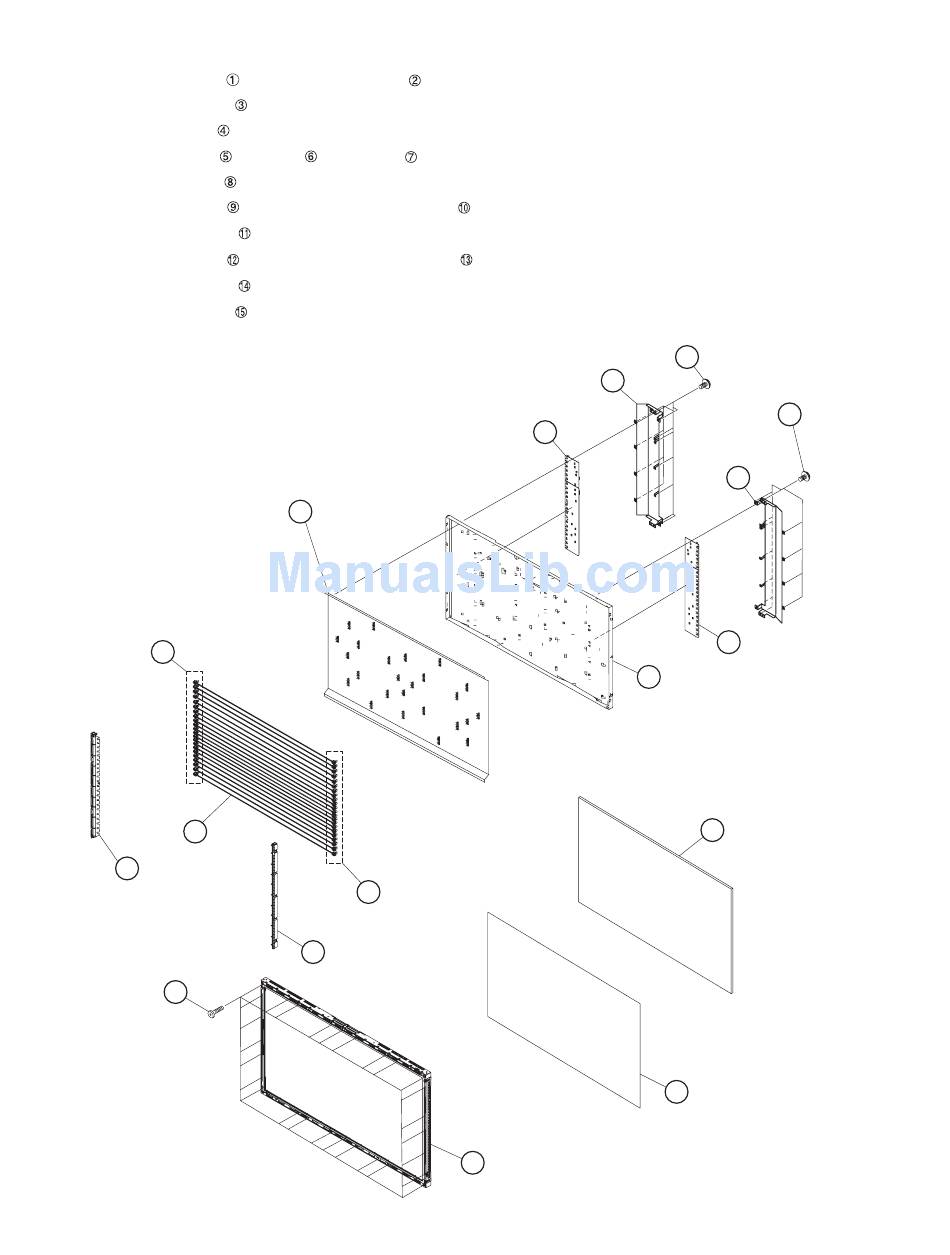

6. Removing of Bezel Ass'y, Micro Lens Sheet, Diffusion Plate, Reflector Sheet, INVERTER Unit-1/2 and BL
Chassis Ass'y.
1. Remove the 28 lock screws
2. Detach the Micro Lens Sheet
3. Detach the Diffusion Plate
4. Detach the 2 Lamp Holder
5. Detach the Reflector Sheet
6. Remove the 12 lock screws
7. Detach the INVERTER Unit-1
8. Remove the 12 lock screws
9. Detach the INVERTER Unit-2
10.Detach the BL Chassis Ass'y
Reflector Sheet
Socket
6
7 Lamp
5
Lamp Holder
1
and detach the Bezel Ass'y
.
.
, 44 Socket and 22 Lamp
.
and detach the INVERTER Cover-L
.
and detach the INVERTER Cover-R
.
.
8
6 Socket
Lamp Holder
5
2
LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
.
.
.
.
INVERTER Cover-R
INVERTER Unit-2
14
2
Bezel Ass'y
4 – 6
12
13
INVERTER
Cover-L
10
11
INVERTER Unit-1
15
BL Chassis Ass'y
Diffusion Plate
4
3
Micro Lens Sheet
9
