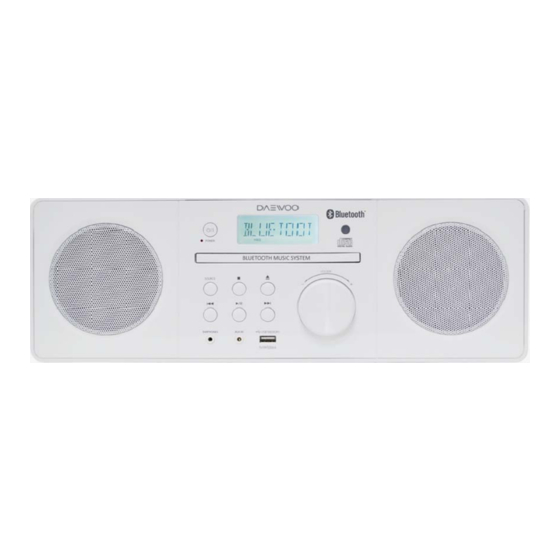

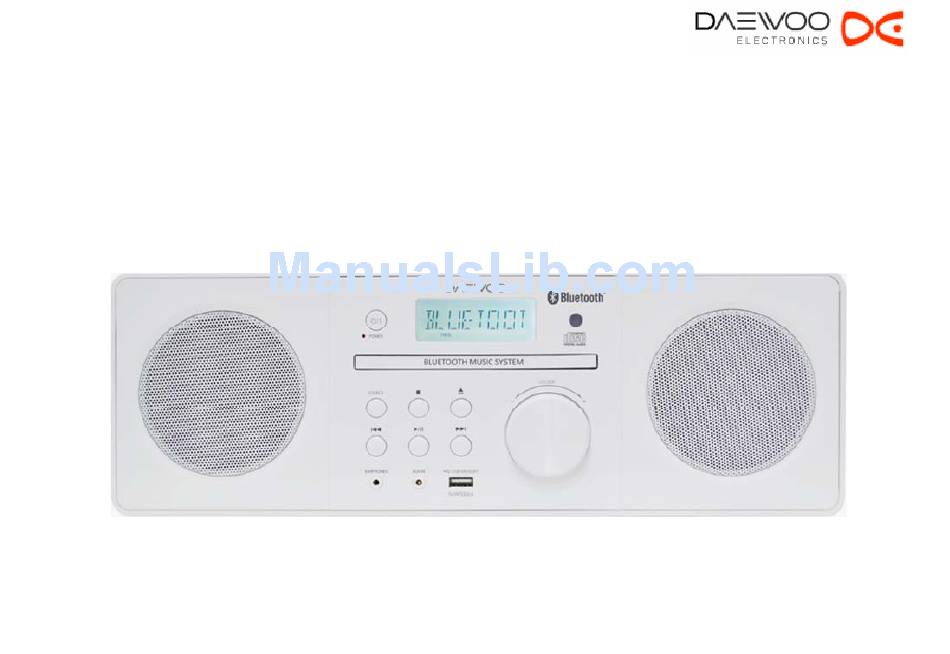

- Page 1 SERVICE MANUAL SERVICE MANUAL CD/FM/USB/AUDIO IN/BLUETOOTH MODELO: MC‐15UBW Dic‐2013 DONGBU DAEWOO ELECTRONICS...
- Page 2 EE-PS-MC150001-00 MATESTAR DIGITAL DEVICE LTD. PERFORMANCE SPECIFICATIONS Date : 2013-8-20 Model MC-15UBW Description : FM /BLUETOOTH CD/MP3/USB/AUX Micro Component System Page : Total Pages GENERAL TEST CONDITION Output Load : 8 Ohm non-reactive Reference Output : 500 mW Input Signal Source : 75 ohm dummy for FM Modulation : 22.5 KHz Deviation 1 KHz for FM...
-
Page 3: Performance Specifications
PERFORMANCE SPECIFICATIONS MODEL NO : MC-15UBW Frequency Modulation ( FM) Section Test Item Unit Limit Normal F01 Tuning Range TP:87.5MHz 87.5 +/-0.1 TP:108MHz High +/-0.1 F02 Sensitivity TP:90.1MHz 90.1MHz dB/uv at 30dB S/N TP:98.1MHz 98.1MHz dB/uv (Mono) TP:106.1MHz 106.1MHz dB/uv F03 3 dB Limit Sens TP:98.1MHz 98.1MHz F04 Stereo Threshold TP:98.1MHz... - Page 4 PERFORMANCE SPECIFICATIONS MODEL NO : MC-15UBW CDDA Section Test Items Unit Limit Normal C01 10% Dist. Output Power ( 1kHz, 0dB) C02 Frequency Response (40Hz -16kHz/1kHz, 0dB) +/-4 +7/-10 C03 De-emphais Response (40Hz -16kHz/1kHz, 0dB) +/-3 C04 Channel Balance (1kHz, 0dB) C05 Channel Separation (1kHz, 0dB) C06 T.H.D.
- Page 5 PERFORMANCE SPECIFICATIONS MODEL NO : MC-15UBW CD/MP3 Section Test Items Unit Limit Normal M01 Frequency Response MCD-RF561C 100Hz(T404) Ref. To 1KHz 0dB (TN:T402) 10KHz(T405) 20KHz(T406) M02 S/N Ratio (MCD-RF561C T402 to T407) 1KHz M03 Seperation (MCD-RF561C T408 L/ T410 R) 1KHz M04 Total H.D.
- Page 6 PERFORMANCE SPECIFICATIONS MODEL NO : MC-15UBW USB/AUX/BT Test Items Unit Limit Normal U01 Frequency Response 100Hz(T404) (USB Copy From MCD-RF561C) 10KHz(T405) Ref. To 1KHz 0dB 20KHz(T406) U02 Signal to Noise Ratio (Unweighted) 1KHz U03 Channel Seperation 1KHz U04 Total Harmonic Distortion (Copy TCD-782) 1KHz(0dB) U05 Total Harmonic Distortion (Copy TCD-782) 1KHz(-10dB)
- Page 11 Exploded view...
- Page 19 Level Material Code Brief Description Unit Quantity Made 151-230230-181 IA-100 POWER CORD 1.0000 154-359850-455 JZ3.5-365-11H SPEAKER(IA150) 2.0000 222-250150-120 FERRITE BEAD 25×15×12mm 1.0000 234-102245-250 2PINS "JST" 2.5mm RD-N1 HSG 1.0000 234-102245-400 2PINS "JST" 2.5mm #24 400mm HSG 1.0000 238-126080-602 SCREW 2.6×8mm PB 2.0000 238-126080-602 SCREW 2.6×8mm PB...
- Page 20 301-321025-016 1 KOHM +-5% 1/16W 0603 SMT RESISTOR 2.0000 301-322225-016 2.2 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-325625-016 5.6 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-331035-016 10 KOHM +-5% 1/16W 0603 SMT RESISTOR 4.0000 301-335635-016 56 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-341045-016 100 KOHM +-5% 1/16W 0603 SMT RESISTOR...
- Page 21 301-324725-016 4.7 KOHM +-5% 1/16W 0603 SMT RESISTOR 7.0000 301-325625-016 5.6 KOHM +-5% 1/16W 0603 SMT RESISTOR 8.0000 301-326825-016 6.8 KOHM +-5% SMT RESISTOR 2.0000 301-331035-016 10 KOHM +-5% 1/16W 0603 SMT RESISTOR 44.0000 301-331235-016 12 KOHM +-5% 1/16W 0603 SMT RESISTOR 2.0000 301-331535-016 15 KOHM +-5% 1/16W 0603 SMT RESISTOR...
- Page 22 310-121616-101 IC FOR SMT A161601L-6TE 1.0000 322-134000-221 SEBG160808U252MT SMT FERRITE 22.0000 322-134102-220 SEBG160808U102MT SMT FERRITE 4.0000 MIA18-RCTF-EU0 P.C.B.IA180BT RECTIFIER BD 1.0000 001-000515-010 RESISTOR VARI 5D-9K 1.0000 001-014715-010 RESISTOR VARI 10D-471K 1.0000 003-042241-127 CAPACITOR MPF 0.22 UF/275V +-10% 2.0000 004-062262-250 22 UF/50V +-20% ELECT CAP 1.0000 152-156350-000 MSMSR-100310A...
- Page 23 301-311515-016 150 OHM +-5% 1/16W 0603 SMT RESISTOR 2.0000 301-321025-016 1 KOHM +-5% 1/16W 0603 SMT RESISTOR 3.0000 301-321225-016 1.2 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-321825-016 1.8 KOHM +-5% 1/16W 0603 SMT RESISTOR 2.0000 301-322725-016 2.7 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-324725-016 4.7 KOHM +-5% 1/16W 0603 SMT RESISTOR...
- Page 24 ...3 006-037000-000 ABS SAMSUNG BF-0370(k21294) 0.0050 535-318000-001 1.0000 ...3 006-037000-000 ABS SAMSUNG BF-0370(k21294) 0.0050 667-100000-000 1.0000 ...3 006-210000-000 PA66 21SPC 0.0050 ...3 007-020021-000 KM5027/2801 (250g) 0.0001 670-100000-000 1.0000 ...3 006-750000-000 ABS KUMHO 750SW 0.0600 ...3 007-020021-000 KM5027/2801 (250g) 0.0012 671-000000-000 1.0000 ...3 006-750000-000...
