Daewoo RL-411 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

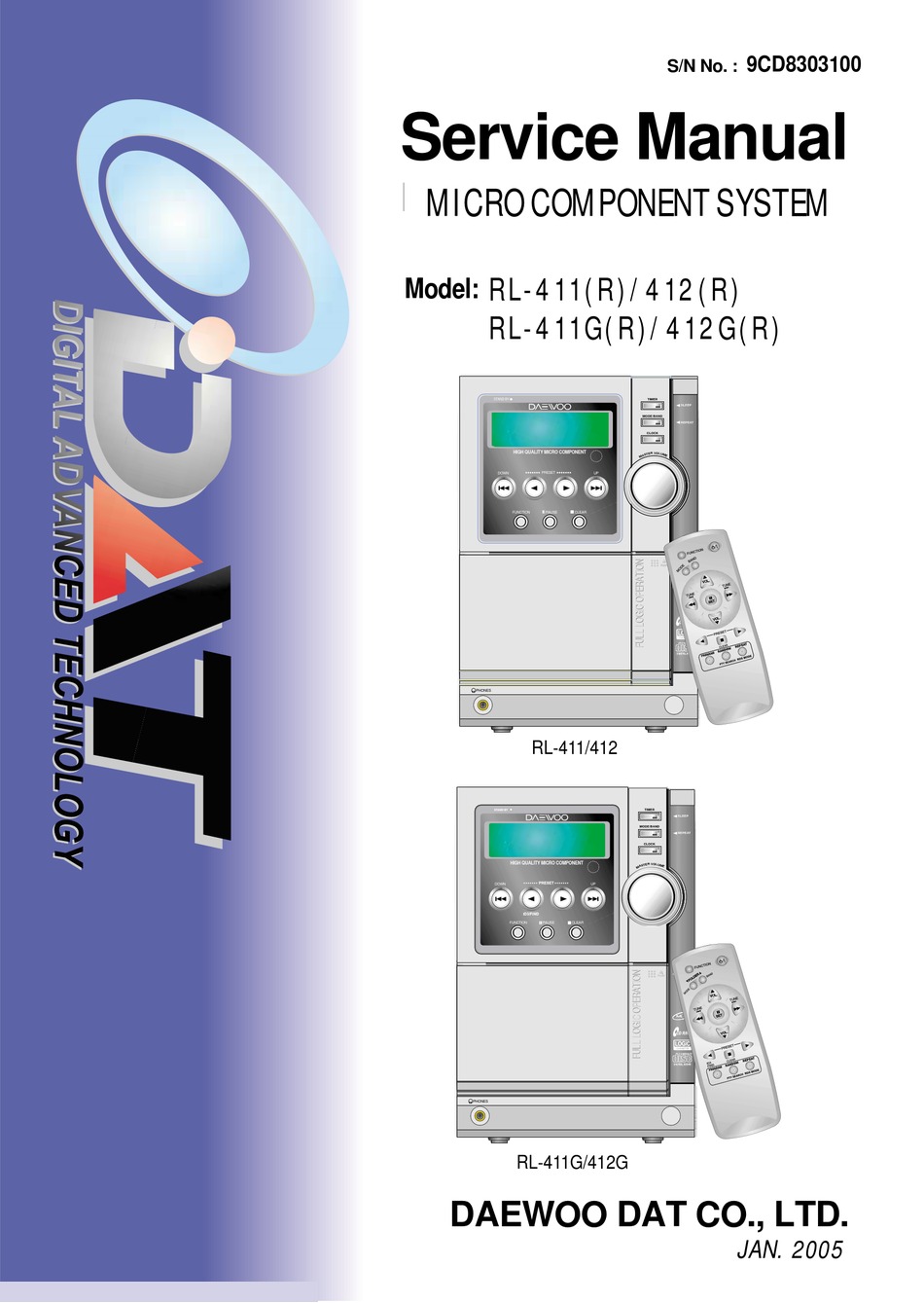

Service Manual
MICRO COMPONENT SYSTEM
Mini Component System
R L - 41 1 ( R ) / 41 2 ( R )
Model:
R L - 41 1 G ( R ) / 41 2 G ( R )
STAND BY
HIGH QUALITY MICRO COMPONENT
DOWN
PRESET
FUNCTION
PAUSE
PHONES
RL-411/412
HIGH QUALITY MICRO COMPONENT
DOWN
FUNCTION
PAUSE
CLEAR
PHONES
RL-411G/412G
DAEWOO DAT CO., LTD.
9CD8303100
S/N No. :
TIMER
SLEEP
MODE/BAND
REPEAT
CLOCK
UP
CLEAR
OPEN
PUSH
PUSH
TIMER
SLEEP
MODE/BAND
REPEAT
CLOCK
UP
OPEN
PUSH
PUSH
JAN. 2005
FEB. 2004

Advertisement

Table of Contents
loading

Related Manuals for Daewoo RL-411

Summary of Contents for Daewoo RL-411

  • Page 1 HIGH QUALITY MICRO COMPONENT DOWN PRESET FUNCTION PAUSE CLEAR OPEN PUSH PUSH PHONES RL-411/412 TIMER SLEEP MODE/BAND REPEAT CLOCK HIGH QUALITY MICRO COMPONENT DOWN FUNCTION PAUSE CLEAR OPEN PUSH PUSH PHONES RL-411G/412G DAEWOO DAT CO., LTD. JAN. 2005 FEB. 2004...

  • Page 2: Table Of Contents

    MICRO COMPONENT SYSTEM R L - 41 1 ( R ) / 41 2 ( R ) R L - 41 1 G ( R ) / 41 2 G ( R ) Table of Contents SAFETY PRECAUTIONS ..................2~3 ADJUSTMENTS ....................

  • Page 3: Safety Precautions

    Safety Precautions WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE laundry tub, in a wet basement, or near a swimming pool, THIS APPLIANCE TO RAIN OR MOISTURE. and the like. 2. Carts and Stands - The appliance PORTABLE CART CAUTION should be used only with a cart or RISK OF ELECTRIC SHOCKS...
  • Page 4 Safety Precautions 13.Outdoor Antenna Grounding - If an outside antenna is 15.Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through connected to the receiver be sure the antenna system is openings.

  • Page 5: Adjustments

    Adjustments Adjust at the point that TP202 voltage comes from 5V to 0V Between TP202 and Ground...
  • Page 6 Adjustments...

  • Page 7: Exploded View And Parts List

    Exploded View and Mechanical Parts List 32-1 HEATSINK(FOR 12.5W) 32-2 HEATSINK(FOR 5W) 11- 1 AUTO REVERSE DECK 11- 2 AUTO STOP DECK...
  • Page 8 Exploded View and Mechanical Parts List...

  • Page 9: Wiring Diagram

    Wiring Diagram RL-411(R)/412(R)
  • Page 10 Wiring Diagram RL-411G(R)/412G(R)

  • Page 11: Block Diagram

    Block Diagram...

  • Page 12: Schematic Diagram

    Schematic Diagram MAIN...

  • Page 13: Tuner

    Schematic Diagram TUNER...
  • Page 14 Schematic Diagram CD : RL-411(R)/412(R) Models only...

  • Page 15: Mp3 Cd

    Schematic Diagram MP3 CD : RL-411G(R)/412G(R) Models only...

  • Page 16: Front

    Schematic Diagram FRONT...

  • Page 17: Power

    Schematic Diagram POWER...

  • Page 18: Pcb Pattern Layout

    P.C.B Pattern Layout MAIN-Top View...
  • Page 19 P.C.B Pattern Layout MAIN-Bottom View...
  • Page 20 P.C.B Pattern Layout CD-Top View : RL-411(R)/412(R) Models only...
  • Page 21 P.C.B Pattern Layout CD-Bottom View : RL-411(R)/412(R) Models only...

  • Page 22: Mp3 Cd

    P.C.B Pattern Layout MP3 CD-Top View : RL-411G(R)/412G(R) Models only...
  • Page 23 P.C.B Pattern Layout MP3 CD-Bottom View : RL-411G(R)/412G(R) Models only...

  • Page 24: Front

    P.C.B Pattern Layout FRONT-Top View...
  • Page 25 P.C.B Pattern Layout FRONT-Bottom View...

  • Page 26: Power

    P.C.B Pattern Layout POWER <RL-412(R)/412G(R)> <RL-411(R)/411G(R)>...
  • Page 27 35V RSS1000MF (13X25) CEXF1H222V C ELECTRO 50V RSS 2200MF (16X35) RL-412/412G Only CE904 CEXF1V222V C ELECTRO 35V RSS 2200MF (16X31.5) RL-411/411G Only CE905 CEXF1H471V C ELECTRO 50V RSS 470MF (10X20) TP CE911 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP...
  • Page 28 Loc. Part Code Part Name Description Remark CE916 CEXF1C471V C ELECTRO 16V RSS 470MF (8X11.5) TP with PSM only CF201 5PPCFAZ077 AM C FILTER & COIL CF&COIL(PCFAZ-077) 5PLT107MS3A FILTER SFE10.7MS3A CF202 5PLT107MJ- FILTER SFE10.7MJA-10 Full FTZ Only 5PLT107MS3A FILTER SFE10.7MS3A CF203 5PLT107MJ- FILTER...
  • Page 29 Loc. Part Code Part Name Description Remark HC220 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 HC221 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 HC222 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 HC223 HCQK820JBA C CHIP CERA 50V CH 82PF J 1608 HC224 HCBK103KBA C CHIP CERA...
  • Page 30 HR202 HRFT153JBA R-CHIP 1/10 15K OHM J 1608 Semptoshiba(AM 100dBu) Model Only HR202 HRFT273JBA R-CHIP 1/10 27K OHM J 1608 Daewoo(AM 126dBu) Model Only HR203 HRFT103JBA R-CHIP 1/10 10K OHM J 1608 HR204 HRFT220JBA R-CHIP 1/10 22 OHM J 1608...
  • Page 31 1/10 5.6K OHM J 1608 Simple FTZ Only HR246 HRFT000-BA R-CHIP 1/10 0 OHM J 1608 HRFT183JBA R-CHIP 1/10 18K OHM J 1608 Daewoo(FM 40k dev.) Model Only HR247 HRFT333JBA R-CHIP 1/10 33K OHM J 1608 Semptoshiba(FM 75k dev.) Model Only HR248 HRFT222JBA R-CHIP 1/10 2.2K OHM J 1608...
  • Page 32 1/4W 220 OHM J 3216 HR490 HRFT472JBA R-CHIP 1/10 4.7K OHM J 1608 HRFT822JBA R-CHIP 1/10 8.2K OHM J 1608 Daewoo(CD - 6dB) Model Only HR521 HRFT223JBA R-CHIP 1/10 22K OHM J 1608 Semptoshiba(CD - 3dB) Model Only HRFT822JBA R-CHIP 1/10 8.2K OHM J 1608...
  • Page 33 1/10 39K OHM J 1608 HRFT681JBA R-CHIP 1/10 680 OHM J 1608 RL-412/412G Only HR809 HRFT102JBA R-CHIP 1/10 1K OHM J 1608 RL-411/411G Only HRFT681JBA R-CHIP 1/10 680 OHM J 1608 RL-412/412G Only HR810 HRFT102JBA R-CHIP 1/10 1K OHM J 1608...
  • Page 34 Loc. Part Code Part Name Description Remark L210 W581GY1005 WIRE JUMPER AWG 22 1/0.65 SN10 AUTO L251 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5 MM) L270 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5 MM) RDS Model Only L401 W581GY1005 WIRE JUMPER AWG 22 1/0.65 SN10 AUTO L620 W581GY1005 WIRE JUMPER...
  • Page 35 Loc. Part Code Part Name Description Remark HC706 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 HC709 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 HC710 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 HC711 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 HC712 HCBK224KBA C CHIP CERA...
  • Page 36 Loc. Part Code Part Name Description Remark HR725 HRFT101JBA R-CHIP 1/10 100 OHM J 1608 HR726 HRFT101JBA R-CHIP 1/10 100 OHM J 1608 HR727 HRFT101JBA R-CHIP 1/10 100 OHM J 1608 HR728 HRFT101JBA R-CHIP 1/10 100 OHM J 1608 HR729 HRFT101JBA R-CHIP 1/10 100 OHM J 1608 HR730...
  • Page 37 KPT-1105A 1C1P VR701 5SH122403- SW ENCODER ENCODER(LE21205K) XC701 5XA32R768C X-TAL DT-38 32.768KHZ 20PPM XC702 5PQZTT80MT RESONATOR CERA CSALA8M00T55-B0(8.00MTZ) PCB CD ASS'Y [9CDC072600] : RL-411/412 Loc. Part Code Part Name Description Remark B501 9CD6595600 PCB CD 123X115X1.6T CE504 CEXF1C470V C ELECTRO...
  • Page 38 Loc. Part Code Part Name Description Remark CN504 9728826400 CONN AS FFC 16P P=1.0 X 120MM D CN705 9728827000 CONN AS UL1007 #26 P=2.0 110MM 2P D501 DRLZ3R9B-- DIODE ZENER CHIP RLZ3.9B D520 DZDS160--- DIODE CHIP KDS160 HC501 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 HC502 HCBK104KBA C CHIP CERA...
  • Page 39 Loc. Part Code Part Name Description Remark HR503 HRFT393JBA R-CHIP 1/10 39K OHM J 1608 HR504 HRFT393JBA R-CHIP 1/10 39K OHM J 1608 HR505 HRFT393JBA R-CHIP 1/10 39K OHM J 1608 HR506 HRFT393JBA R-CHIP 1/10 39K OHM J 1608 HR507 HRFT823JBA R-CHIP 1/10 82K OHM J 1608 HR508...
  • Page 40 Loc. Part Code Part Name Description Remark 5LX159P829 COIL BEAD 1.5UH MIN Full FTZ Only L505 W581GY1005 WIRE JUMPER AWG 22 1/0.65 SN10 AUTO Simple FTZ Only L510 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5 MM) L520 5CPZ101K02 COIL PEAKING 100 UH K (AXIAL 3.5 MM) Q501 KZTA1504--...
  • Page 41 Loc. Part Code Part Name Description Remark HC529 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 HC530 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 HC531 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 HC532 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 HC533 HCBK104KBA C CHIP CERA...
  • Page 42 Loc. Part Code Part Name Description Remark HR527 HRFT124JBA R-CHIP 1/10 120K OHM J 1608 HR528 HRFT473JBA R-CHIP 1/10 47K OHM J 1608 HR529 HRFT124JBA R-CHIP 1/10 120K OHM J 1608 HR530 HRFT124JBA R-CHIP 1/10 120K OHM J 1608 HR531 HRFT104JBA R-CHIP 1/10 100K OHM J 1608 HR532...
  • Page 43 Part Name Description Remark 9CD6596100 PCB POWER 120X110X1.6T RL-412/412G Only B901 9CD6595700 PCB POWER 120X110X1.6T RL-411/411G Only CE903 CEXF1E102V C ELECTRO 25V 1000/25MF (10X22) with PSM Only CE906 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CE907 CEXF1H100V C ELECTRO...
  • Page 44 PT-MAIN RL-412/412G AC220~240V CE 5TP1066933 POWER TRANS PT-MAIN RL-412/412G AC120~127V 60Hz UL PT903 5TP0066934 POWER TRANS PT-MAIN RL-412/412G Dual voltage 5TP0060937 POWER TRANS PT-MAIN RL-411/411G Q901 TZTC3205Y- KTC3205 with PSM Only R901 RN-2Y475J- R CARBON FILM 4.7M(1/2W) AMERICA(120V) Only R902...

This manual is also suitable for:

Rl-411rRl-411grRl-412gRl-412grRl-412Rl-412r ... Show all

Table of Contents
