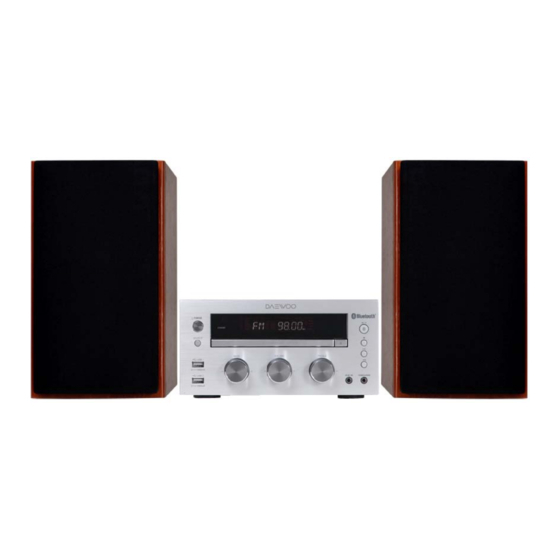

- Page 1 SERVICE MANUAL SERVICE MANUAL FM/BT/CD/MP3/USB/AUX/AUDIO‐IN MODELO: MC‐100UBM DONGBU DAEWOO ELECTRONICS Dic‐2013...
-
Page 2: Performance Specifications
Return EE-PS-MC100001-00 MATESTAR DIGITAL DEVICE LTD. PERFORMANCE SPECIFICATIONS Date : 2013-8-20 Model MC-100UBM Description : FM /BLUETOOTH CD/MP3/USB/AUX/AUDIO IN Micro Component System Page : Total Pages GENERAL TEST CONDITION Output Load : 6 Ohm non-reactive Reference Output : 500 mW... - Page 3 PERFORMANCE SPECIFICATIONS MODEL NO : MC-100UBM Frequency Modulation ( FM) Section Test Item Unit Limit Normal F01 Tuning Range TP:87.5MHz 87.5 +/-0.1 TP:108MHz High +/-0.1 ≦28 F02 Sensitivity TP:90.1MHz 90.1MHz dB/uv ≦28 at 30dB S/N TP:98.1MHz 98.1MHz dB/uv ≦28 (Mono) TP:106.1MHz...
-
Page 4: Test Items
PERFORMANCE SPECIFICATIONS MODEL NO : MC-100UBM CDDA Section Test Items Unit Limit Normal ≧46 C01 10% Dist. Output Power ( 1kHz, 0dB) C02 Frequency Response (40Hz -16kHz/1kHz, 0dB) +/-4 +7/-10 C03 De-emphais Response (40Hz -16kHz/1kHz, 0dB) +/-3 ≦3 C04 Channel Balance (1kHz, 0dB) ≧35... - Page 5 PERFORMANCE SPECIFICATIONS MODEL NO : MC-100UBM CD/MP3 Section Test Items Unit Limit Normal M01 Frequency Response MCD-RF561C 100Hz(T404) Ref. To 1KHz 0dB (TN:T402) 10KHz(T405) 20KHz(T406) ≧50 M02 S/N Ratio (MCD-RF561C T402 to T407) 1KHz ≧35 M03 Seperation (MCD-RF561C T408 L/ T410 R) 1KHz ≦3...
- Page 6 PERFORMANCE SPECIFICATIONS MODEL NO : MC-100UBM USB/AUX/AUDIO IN/BT Test Items Unit Limit Normal U01 Frequency Response 100Hz(T404) (USB Copy From MCD-RF561C) 10KHz(T405) Ref. To 1KHz 0dB 20KHz(T406) ≧40 U02 Signal to Noise Ratio (Unweighted) 1KHz ≧35 U03 Channel Seperation 1KHz ≦5...
- Page 7 MC-100UBM BLOCK.sch-1 - Tue Sep 03 11:20:21 2013...
- Page 13 MSUGD5500C15AAA.sch-1 - Thu Jun 06 13:43:10 2013...
- Page 14 MSUGD5500C12AAA.sch-1 - Thu Jun 06 13:40:35 2013...
- Page 16 BOM多级展开 Level Material Code Brief Description Unit Quantity Made 151-230000-200 SC70302 2M POWER CORD 1.0000 234-261500-022 1PINS "JST" 1500mm line HSG 1.0000 238-117040-203 SCREW 1.7×4mm BM 2.0000 238-117050-632 SCREW 1.7×5mm PWB D=7mm 1.0000 238-117050-632 SCREW 1.7×5mm PWB D=7mm 1.0000 238-126080-602 SCREW 2.6×8mm PB 8.0000 238-126080-602...
- Page 17 BOM多级展开 603-150003-000 Label IA300 1.0000 603-170047-000 LABEL GD550 1.0000 603-900264-000 LABEL GD550 1.0000 604-320009-080 IA300 RC 1.0000 GD550 BT SLIVER THZ-04 美捷喷油 604-340009-080 1.0000 678-410375-005 EPE FORM（PM50D/EM11/21） 1.0000 730-550001-030 GD550BT (WATSON ) 1.0000 731-550000-010 INSTRUCTION MANUAL GD550 1.0000 740-550001-010 GD550(IA300) Iriver 1.0000 741-550000-010 IA300 Iriver...
- Page 18 BOM多级展开 302-321021-150 0.001UF/50V +-15% 0603 SMT C.CAP 2.0000 302-321525-550 0.0015UF/50V +-5% SMT C.CAP 2.0000 302-341041-150 0.1UF/50V +-10% 0603 SMT C.CAP 4.0000 302-352251-150 2.2UF/50V +-10% 0603 SMT C.CAP 6.0000 307-008550-020 TRANSISTOR FOR SMT S8550M-C SOT-23 PCS 1.0000 310-004558-100 IC FOR SMT CF4558CB 1.0000 322-134000-221 SEBG160808U252MT SMT FERRITE...
- Page 19 BOM多级展开 MD550-MAIN-DE0 GD550BT MAIN BD 1.0000 003-041048-250 CAPACITOR CERAMIC 104P/50V +80% -20% 2.0000 005-042241-199 0.22 UF/100V +-10% MYLAR CAP 1.0000 005-046841-150 0.68UF 250V +-10% MYLAR CAP：编带 2.0000 RESISTOR NKNP 22 OHM +-5% 2W 立式编带 201-102205-205 2.0000 203-061062-225 10 UF/25V +-20% ELECT CAP 9.0000 203-062262-216 22 UF/16V +-20% ELECT CAP...
- Page 20 BOM多级展开 301-323925-016 3.9 KOHM +-5% 1/16W 0603 SMT RESISTOR 1.0000 301-324725-016 4.7 KOHM +-5% 1/16W 0603 SMT RESISTOR 14.0000 301-325625-016 5.6 KOHM +-5% 1/16W 0603 SMT RESISTOR 6.0000 301-326225-016 6.2 KOHM +-5% 1/16W 0603 SMT RESISTOR 4.0000 301-329125-016 9.1 KOHM +-5% 1/16W SMT RESISTOR 2.0000 301-331035-016 10 KOHM +-5% 1/16W 0603 SMT RESISTOR...
- Page 21 BOM多级展开 310-005888-100 IC FOR SMT SA5888 1.0000 310-006021-100 IC FOR SMT ETA6021 2.0000 310-006817-100 IC FOR SMT CA6817 1.0000 310-007222-100 IC FOR SMT SGM7222 1.0000 310-007540-100 IC FOR SMT LN7540PR 1.0000 310-892200-000 IC FOR SMT TDA8922CTH/N1,118 1.0000 322-134000-220 SEBG160808U300MT SMT FERRITE 2.0000 322-134000-221 SEBG160808U252MT SMT FERRITE...
- Page 22 BOM多级展开 …3 403-000075-000 WIRE FOR COPPER JUMPER 0.000462 247-040300-000 IA300/GD550BT SMPS BD 1.0000 301-100005-014 RESISTOR SMT 1206 0 OHM +-5% 1/4W PCS 6.0000 301-102205-014 RESISTOR SMT 1206 22 OHM +-5% 1/4W PCS 1.0000 301-104705-014 RESISTOR SMT 1206 47 OHM +-5% 1/4W PCS 3.0000 301-111015-014 RESISTOR SMT 1206 100 OHM +-5% 1/4W PCS...
- Page 23 BOM多级展开 色种 KM5027/2801黑种(250g) ...3 007-020021-000 0.0060 高音喇叭支架 531-650000-002 2.0000 ...3 006-425000-000 HIPS KUMHO HI425 0.0300 色种 KM5027/2801黑种(250g) ...3 007-020021-000 0.0060 低音喇叭支架 531-650000-003 2.0000 ...3 006-425000-000 HIPS KUMHO HI425 0.0200 色种 KM5027/2801黑种(250g) ...3 007-020021-000 0.0060 音量钮 532-350000-000 3.0000 533-750000-000 CD门 1.0000 ...3 006-750000-000 ABS KUMHO 750SW...
- Page 24 BOM多级展开 马达皮带轮 675-000000-000 1.0000 POM 宝理 M90-44 ...3 006-904400-000 0.0050 Page 9...
