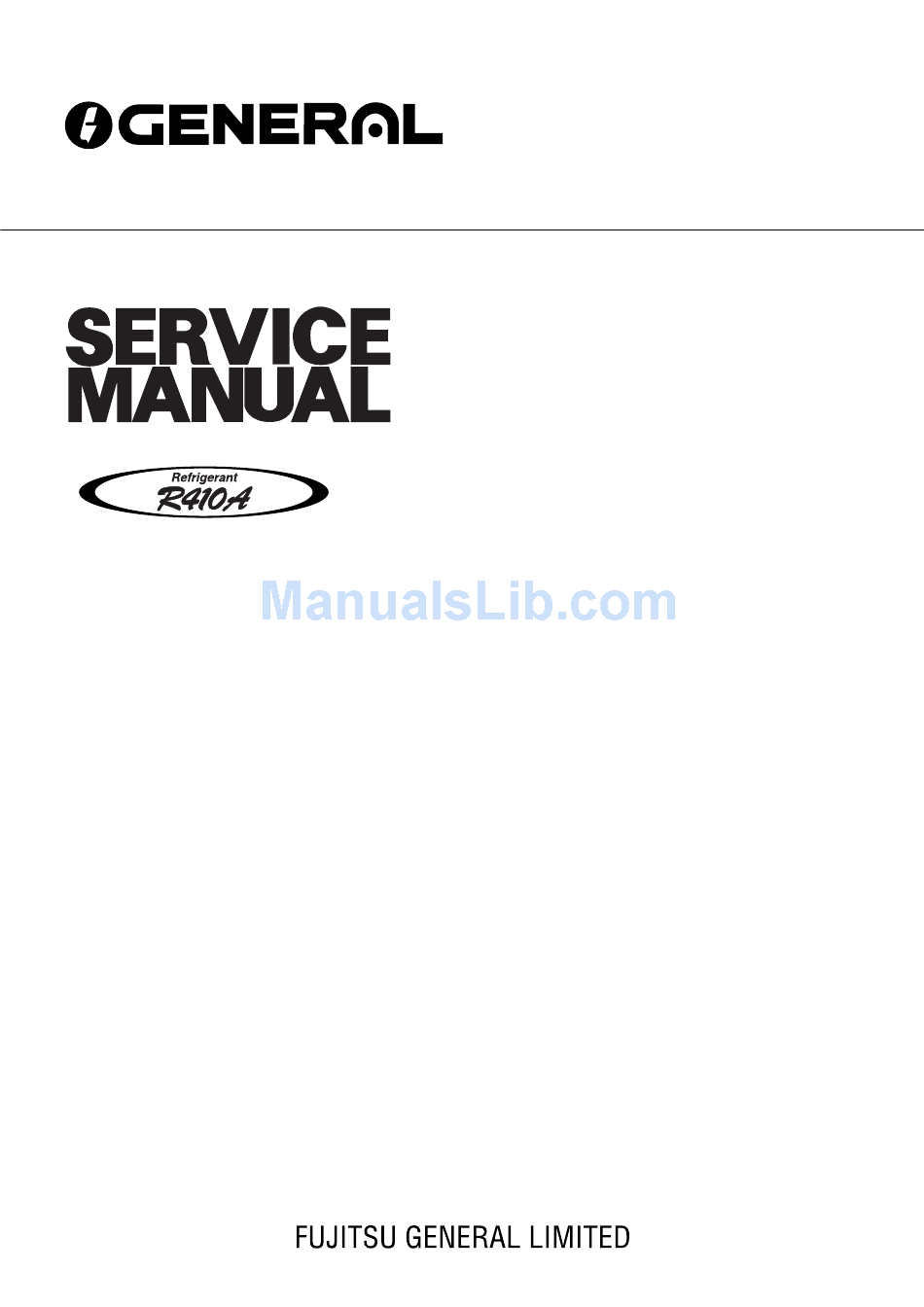

General ASHA30LCC Service Manual

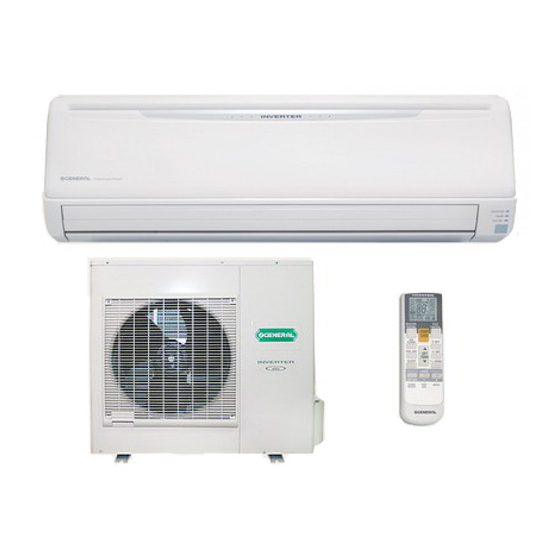

Split type room air conditioner wall mounted type
Hide thumbs

Advertisement

Table of Contents

SPLIT TYPE
ROOM AIR CONDITIONER

WALL MOUNTED

Models
Indoor unit
ASHA30LCC
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . 2
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . 5
ERROR CONTENTS . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . 15
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . 23
STANDARD ACCESSORIES . . . . . . . . . .
type
Outdoor unit
AOHR30LCT
6
9
14
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASHA30LCC and is the answer not in the manual?

Questions and answers

Related Manuals for General ASHA30LCC

Summary of Contents for General ASHA30LCC

  • Page 1: Table Of Contents

    Models Indoor unit Outdoor unit ASHA30LCC AOHR30LCT CONTENTS SPECIFICATIONS ....1 DIMENSIONS ..... . . 2 REFRIGERANT SYSTEM DIAGRAM .

  • Page 2: Specifications

    SPECIFICATIONS COOL & HEAT INVERTER TYPE ASHA30LCC INDOOR UNIT AOHR30LCT OUTDOOR UNIT 8.00 kW COOLING CAPACITY 9.00 kW HEATING CAPACITY ELECTRICAL DATA 230 V POWER SOURCE 50 Hz FREQUENCY 11.7 A COOLING RUNNING CURRENT 11.6 A HEATING 2.66 kW COOLING INPUT WATTS 2.64 kW...

  • Page 3: Outline And Dimensions

    OUTLINE AND DIMENSIONS INDOOR UNIT Model : ASHA30LCC (unit : mm) 2006.05.15...
  • Page 4 OUTDOOR UNIT Model : AOHR30LCT (unit : mm) Air Flow 2006.05.15...

  • Page 5: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Models : ASHA30LCC / AOHR30LCT Heat exchanger ( INDOOR ) 3-Way valve (Large) 3-Way valve Muffler (Small) Pressure Strainer switch Expansion valve 4-Way valve Heat exchanger Strainer ( OUTDOOR ) Cooling Heating Refrigerant pipe diameter Liquid : 3/8" (9.52 mm) Gas : 5/8"...

  • Page 6: Circuit Diagram

    CIRCUIT DIAGRAM INDOOR UNIT OUTDOOR UNIT Controller PCB Assy HIGH PRESSURE SW CN90 BLUE YELLOW Controller PCB Assy THERMISTOR(COMPRESSOR TEMP.) WHITE TEST BROWN CN64 BLACK BROWN CN42 CN40 CN200 CN400 THERMISTOR THERMISTOR(OUTDOOR TEMP.) (PIPE TEMP.) FAN MOTOR BLUE CN61 BLUE BLACK BLUE THERMISTOR(PIPE)

  • Page 7: Indoor Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM CONTROL UNIT EZ-0051LHSE Model : ASHA30LCC TERMINAL BOARD THERMAL FUSE 102 OUTDOOR UNIT SERIAL EARTH TERMINAL EARTH BLACK WHITE GREEN 22007 22007 22007 CONTROLLER PCB ASSY INDICATOR PCB ASSY K05CX-0505HSE-C1 K05CY-0500HSE-D0 B05B-XASK CN6-1 REMOTE CONTROL UNIT...
  • Page 8 CONTROLLER PCB ASSY K05CX-0505HSE-C1 Model : ASHA30LCC H I C FOR SERIAL COMMUNICATIONS 280V MY064 1NH42 POWER SUPPLY CIRCUIT D12 D2F20U D9 D1FL20U R79, R81 - R84 D10 D1FL20U 10K <1/10W> x 5 I C 26 5D - 11 T1-12 R45 100K <RS - 2W>...
  • Page 9 Model : ASHA30LCC INDICATOR PCB ASSY K05CY-0500HSE-D0 CN201 D201 SLR-325 D202 SLR-325 C201 D203 SLR-325 <F> I C201 R201 GP1UM261R <1/4W> + C202 2006.05.15...

  • Page 10: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM Model : AOHR30LCT INVERTER ASSEMBLY EZ-005XHUE 230V-50Hz POWER SUPPLY PCB ASSY K05CW-0501HUE-FL0 TR PCB ASSY ( I P M ) K05CZ-0503HUE-TR0 CAPACITOR PCB ASSY K05FB-0500HUE-P0 ACTPM CONTROLLER PCB ASSY K05CU-0501HUE-C1 2006.05.15...
  • Page 11 CONTROLLER PCB ASSY K05CU-0501HUE-C1 Model : AOHR30LCT <1/10W> <1/10W> 2006.05.15...
  • Page 12 TR PCB ASSY ( I P M ) Model : AOHR30LCT K05CZ-0503HUE-TR0 2006.05.15...
  • Page 13 Model : AOHR30LCT 2006.05.15...
  • Page 14 Model : AOHR30LCT CAPACITOR PCB ASSEMBLY K05FB-0500HUE-P0 SMOOTHING CIRCUIT 660 / 450V x 4 WHITE YELLOW C202 C200 C201 C203 R200 220K <2W> VIOLET BLUE 2006.05.15...

  • Page 15: Error Contents

    ERROR CONTENTS Display Error Operation Error Timer LED 2 flash Serial signal (reverse) error, at operation start up 3 flash Serial signal (reverse) error, during oeration Serial signal error Normal 4 flash Serial signal (forward) error, at operation start up 5 flash Serial signal (forward) error, during operation 8 flash...

  • Page 16: Disassembly Illustration

    DISASSEMBLY ILLUSTRATION Model : ASHA30LCC 2006.05.15...
  • Page 19 Model : ASHA30LCC 2006.05.15...
  • Page 20 Model : AOHR30LCT 2006.05.15...
  • Page 21 Model : AOHR30LCT 2006.05.15...
  • Page 22 Model : AOHR30LCT 2006.05.15...
  • Page 23 Model : AOHR30LCT DISCHARGE TEMP THERMISTOR CONNECTOR : ORANGE OUTDOOR TEMP THERMISTOR CONNECTOR : BLUE COMPRESSOR TEMP THERMISTOR CONNECTOR : GREEN HEAT EXCHANGER THERMISTOR CONNECTOR : RED PRESSURE SWITCH WIRE CONNECTOR : RED 2006.05.15...

  • Page 24: Parts List

    PARTS LIST INDOOR UNIT Part No. Ref. Ord. Description Q'ty ASHA30LCC Front Panel Total Assy 9315335043 Intake Grille Assy 9315336033 Air Filter 9315014016 Clamper (Grille) 9306755010 Receiver Window 9315010018 Crossflow Fan Assy 9315024015 Bearing C Assy 9306628017 Casing Assy 9315331021...
  • Page 25 OUTDOOR UNIT Part No. Ref. Ord. Description AOHR30LCT Q'ty Top Panel Sub Assy 9374417032 Front Panel 9374094066 Fan Guard 9374330010 Grip Side 9374173013 Service Panel Sub Assy 9374415052 Right Panel Sub Assy 9374416127 Emblem Rear 9372171011 Propeller Fan Assy 9366378020 Motor, DC Brushless 9601882015 Condenser A Assy...

  • Page 26: Standard Accessories

    STANDARD ACCESSORIES Name and Shape Part No. Wall hook bracket 9315023018 Remote control unit 9315027139 Remote control unit holder 9305642045 Battery (penlight) 0600185534 Cloth tape 9310519004 Tapping screw (big) 0700076046 Tapping screw (small) 0700019036 Air cleaning filter 9312153060 9311925071 Air cleaning filter frame 9368568009 Drain pipe (Outdoor unit)
  • Page 27 0605G3079...
