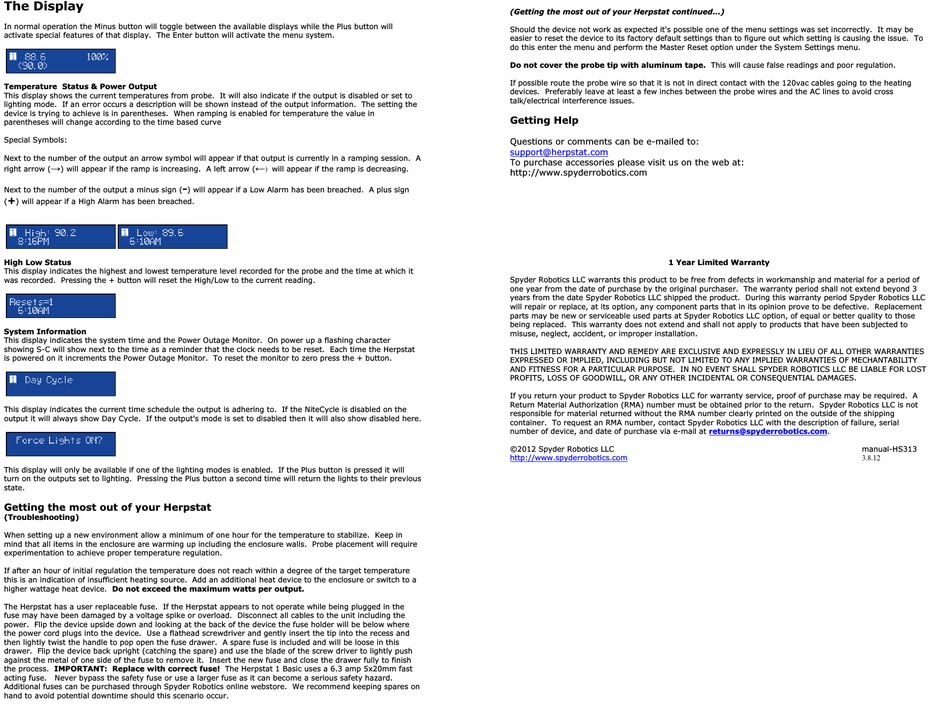

Spyder Robotics Herpstat 1 Basic User Manual page 4

The Display
In normal operation the Minus button will toggle between the available displays while the Plus button will
activate special features of that display. The Enter button will activate the menu system.
Temperature Status & Power Output
This display shows the current temperatures from probe. It will also indicate if the output is disabled or set to
lighting mode. If an error occurs a description will be shown instead of the output information. The setting the
device is trying to achieve is in parentheses. When ramping is enabled for temperature the value in
parentheses will change according to the time based curve
Special Symbols:
Next to the number of the output an arrow symbol will appear if that output is currently in a ramping session. A
right arrow ( ) will appear if the ramp is increasing. A left arrow (
→
Next to the number of the output a minus sign (
+
( ) will appear if a High Alarm has been breached.
High Low Status
This display indicates the highest and lowest temperature level recorded for the probe and the time at which it
was recorded. Pressing the + button will reset the High/Low to the current reading.
System Information
This display indicates the system time and the Power Outage Monitor. On power up a flashing character
showing S-C will show next to the time as a reminder that the clock needs to be reset. Each time the Herpstat
is powered on it increments the Power Outage Monitor. To reset the monitor to zero press the + button.
This display indicates the current time schedule the output is adhering to. If the NiteCycle is disabled on the
output it will always show Day Cycle. If the output's mode is set to disabled then it will also show disabled here.
This display will only be available if one of the lighting modes is enabled. If the Plus button is pressed it will
turn on the outputs set to lighting. Pressing the Plus button a second time will return the lights to their previous
state.
Getting the most out of your Herpstat
(Troubleshooting)
When setting up a new environment allow a minimum of one hour for the temperature to stabilize. Keep in
mind that all items in the enclosure are warming up including the enclosure walls. Probe placement will require
experimentation to achieve proper temperature regulation.
If after an hour of initial regulation the temperature does not reach within a degree of the target temperature
this is an indication of insufficient heating source. Add an additional heat device to the enclosure or switch to a
higher wattage heat device. Do not exceed the maximum watts per output.
The Herpstat has a user replaceable fuse. If the Herpstat appears to not operate while being plugged in the
fuse may have been damaged by a voltage spike or overload. Disconnect all cables to the unit including the
power. Flip the device upside down and looking at the back of the device the fuse holder will be below where
the power cord plugs into the device. Use a flathead screwdriver and gently insert the tip into the recess and
then lightly twist the handle to pop open the fuse drawer. A spare fuse is included and will be loose in this
drawer. Flip the device back upright (catching the spare) and use the blade of the screw driver to lightly push
against the metal of one side of the fuse to remove it. Insert the new fuse and close the drawer fully to finish
the process. IMPORTANT: Replace with correct fuse! The Herpstat 1 Basic uses a 6.3 amp 5x20mm fast
acting fuse. Never bypass the safety fuse or use a larger fuse as it can become a serious safety hazard.
Additional fuses can be purchased through Spyder Robotics online webstore. We recommend keeping spares on
hand to avoid potential downtime should this scenario occur.
) will appear if the ramp is decreasing.
←
-
) will appear if a Low Alarm has been breached. A plus sign
(Getting the most out of your Herpstat continued...)
Should the device not work as expected it's possible one of the menu settings was set incorrectly. It may be
easier to reset the device to its factory default settings than to figure out which setting is causing the issue. To
do this enter the menu and perform the Master Reset option under the System Settings menu.
Do not cover the probe tip with aluminum tape. This will cause false readings and poor regulation.
If possible route the probe wire so that it is not in direct contact with the 120vac cables going to the heating
devices. Preferably leave at least a few inches between the probe wires and the AC lines to avoid cross
talk/electrical interference issues.
Getting Help
Questions or comments can be e-mailed to:
support@herpstat.com
To purchase accessories please visit us on the web at:
http://www.spyderrobotics.com
1 Year Limited Warranty
Spyder Robotics LLC warrants this product to be free from defects in workmanship and material for a period of
one year from the date of purchase by the original purchaser. The warranty period shall not extend beyond 3
years from the date Spyder Robotics LLC shipped the product. During this warranty period Spyder Robotics LLC
will repair or replace, at its option, any component parts that in its opinion prove to be defective. Replacement
parts may be new or serviceable used parts at Spyder Robotics LLC option, of equal or better quality to those
being replaced. This warranty does not extend and shall not apply to products that have been subjected to
misuse, neglect, accident, or improper installation.
THIS LIMITED WARRANTY AND REMEDY ARE EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MECHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL SPYDER ROBOTICS LLC BE LIABLE FOR LOST
PROFITS, LOSS OF GOODWILL, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES.
If you return your product to Spyder Robotics LLC for warranty service, proof of purchase may be required. A
Return Material Authorization (RMA) number must be obtained prior to the return. Spyder Robotics LLC is not
responsible for material returned without the RMA number clearly printed on the outside of the shipping
container. To request an RMA number, contact Spyder Robotics LLC with the description of failure, serial
number of device, and date of purchase via e-mail at returns@spyderrobotics.com.
©2012 Spyder Robotics LLC
http://www.spyderrobotics.com
manual-HS313
3.8.12
